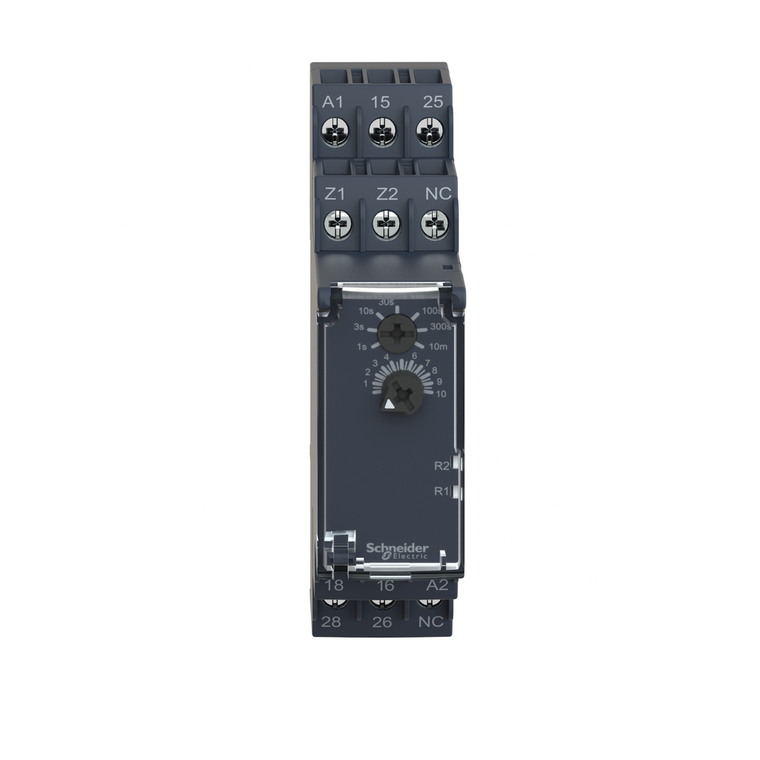

Schneider Electric RE22R2KMR Off Delay Timer Relay

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric RE22R2KMR Off Delay Timer Relay

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RE22R2KMR

UPC:

3606480792465

MPN:

Condition:

New

Safety Reliability Data:

B10d = 160000 || MTTFd = 171.2 years

Control Type:

rotary knob || potentiometer external

Overvoltage Category:

III IEC 60664-1

Status Led:

Green LED backlight steady)dial pointer indication || Yellow LED steady)output relay energised || Yellow LED steady)power ON

Creepage Distance:

4 kV/3 IEC 60664-1

Voltage Range:

0.85...1.1 Us

Maximum Switching Current:

0.208333333333333

Repeat Accuracy:

+/- 0.5 % IEC 61812-1

[Uimp] Rated Impulse Withstand Voltage:

5 kV 1.2-50 µs IEC 60664-1

Rohs Exemption Information:

Yes

Electromagnetic Compatibility:

fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 || surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2

Circularity Profile:

ENVEOLI1401008EN

Nominal Output Current:

0.208333333333333

Ambient Air Temperature For Storage:

-40-70 °C

Maximum Delay Response:

350 ms

Power Consumption In W:

2 W 240 V DC

Temperature Drift:

+/- 0.05 %/°C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environmental Disclosure:

ENVPEP1401008EN

Mercury Free:

Yes

Setting Accuracy Of Time Delay:

+/- 10 % of full scale 25 °C IEC 61812-1

Electrical Durability:

100000 cycles, 2 A at 24 V, DC-1 || 100000 cycles, 5 A at 250 V, AC-1

Supply Frequency:

50...60 Hz +/- 5 %

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Directives:

2006/95/EC - low voltage directive || 2004/108/EC - electromagnetic compatibility

Mounting Position:

any position

Discrete Output Type:

relay

Vibration Resistance:

20 m/s² 10-150 Hz)IEC 60068-2-6

[Us] Rated Supply Voltage:

24...240 V AC/DC 50/60 Hz

Input Voltage:

<= 2.4 V

Mechanical Durability:

10000000 cycles

Range Of Product:

Harmony Timer Relays

Reset Time:

100 ms on de-energisation

Net Weight:

0.1 kg

Time Delay Type:

delay on de-energization

Connections - Terminals:

screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |

Switching Capacity In Va:

1250 VA

Time Delay Range:

10...100 s || 0.05...1 s || 30...300 s || 3...30 s || 1...10 min || 1...10 s || 0.3...3 s

Contacts Type And Composition:

2 C/O timed contact, cadmium free

Minimum Switching Current:

10 mA 5 V DC

Power Consumption In Va:

3-3 VA 240 V AC

Ip Degree Of Protection:

housing IP40 IEC 60529 || terminals IP20 IEC 60529 || front panel IP50 IEC 60529

Product Certifications:

EAC || UL || RCM || GL || CCC || CSA || CE

Width:

22.5 mm

Mounting Support:

35 mm DIN rail conforming to IEC 60715

Maximum Switching Voltage:

250 V AC

Housing Material:

self-extinguishing

Dielectric Strength:

2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1

Standards:

IEC 61812-1 || UL 508

Immunity To Microbreaks:

10 ms

Shock Resistance:

15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27

Relative Humidity:

95-95 % 25-55 °C

Sustainable Offer Status:

Green Premium product

Pollution Degree:

3 IEC 60664-1

Product Or Component Type:

single function relay

Ambient Air Temperature For Operation:

-20-60 °C

Device Short Name:

RE22

Tightening Torque:

0.6-1 N.m IEC 60947-1

Insulation Resistance:

100 MOhm 500 V DC IEC 60664-1

China Rohs Regulation:

X

Voltage Drift:

+/- 0.2 %/V

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold
