Schneider Electric RE22R2MJU Multifunction Timer Relay
Schneider Electric
$62.65
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

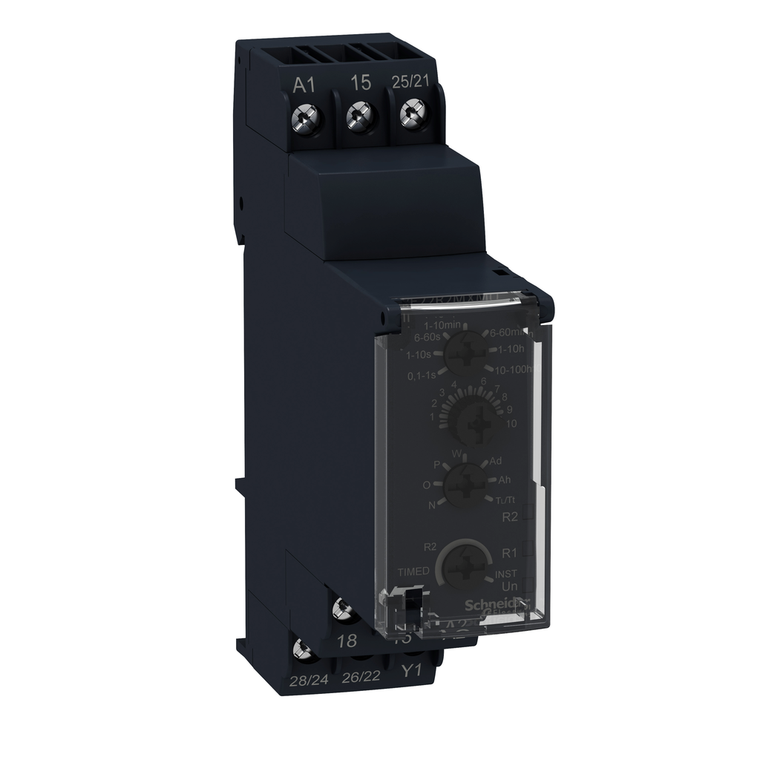

Schneider Electric RE22R2MJU Multifunction Timer Relay
This Harmony RE22 modular multi function timer can be set between 0.1 seconds and 100 hours. It provides multi functions and it is mountable on DIN rail. This modular multi function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
- Supply Frequency:
- 50...60 Hz +/- 5 %
- Housing Material:
- self-extinguishing
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Insulation Resistance:
- 100 MOhm 500 V DC IEC 60664-1
- Time Delay Type:
- power on-delay || on-delay and off-delay || interval || off-delay || symmetrical flashing
- Net Weight:
- 0.09 kg
- [Uimp] Rated Impulse Withstand Voltage:
- 5 kV 1.2-50 µs IEC 60664-1 || 5 kV IEC 61812-1
- Power Consumption In W:
- 0.5 W 12 V DC
- Sustainable Offer Status:
- Green Premium product
- Maximum Switching Voltage:
- 250 V
- [Us] Rated Supply Voltage:
- 12 V AC/DC
- Device Short Name:
- RE22
- Range Of Product:
- Harmony Timer Relays
- Voltage Drift:
- +/- 0.2 %/V
- Reset Time:
- 120 ms on de-energisation
- Immunity To Microbreaks:
- 10 ms
- Electromagnetic Compatibility:
- electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 || fast transients immuni
- Maximum Switching Current:
- 8 mA
- Electrical Durability:
- 100000 cycles for resistive load, 8 A at 250 V, AC
- Product Certifications:
- CSA || cULus || CE || EAC || GL || CCC || RCM
- Product Or Component Type:
- multifunction relay
- Nominal Output Current:
- 0.333333333333333
- Minimum Pulse Duration:
- 30 ms || 100 ms under load
- Control Type:
- rotary knob front panel
- Breaking Capacity:
- 2000 VA
- Circularity Profile:
- ENVEOLI1401008EN
- Ip Degree Of Protection:
- housing IP40 IEC 60529 || terminal block IP20 IEC 60529 || front face IP40 IEC 60529
- Power Consumption In Va:
- 1.2-1.2 VA 12 V AC
- Voltage Range:
- 0.9...1.2 Us
- Contacts Type And Composition:
- 1 C/O timed contact || 1 C/O timed or instantaneous contact
- Mounting Support:
- 35 mm DIN rail conforming to IEC 60715
- Discrete Output Type:
- relay
- Relative Humidity:
- 93-93 %, without condensation IEC 60068-2-30
- Temperature Drift:
- +/- 0.05 %/°C
- Time Delay Range:
- 1...10 min || 6...60 min || 0.1...1 s || 6...60 s || 1...10 s || 1...10 h || 10...100 h
- Ambient Air Temperature For Storage:
- -30-60 °C
- Mechanical Durability:
- 10000000 cycles
- Safety Reliability Data:
- B10d = 190000 || MTTFd = 205.4 years
- Status Led:
- Green LED flashing)timing in progress || Green LED steady)power ON || Yellow LEDrelay energised
- Directives:
- 2006/95/EC - low voltage directive || 2004/108/EC - electromagnetic compatibility
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Setting Accuracy Of Time Delay:
- +/- 10 % of full scale 25 °C IEC 61812-1
- Minimum Switching Current:
- 10 mA 5 V
- Ambient Air Temperature For Operation:
- -20-60 °C
- Vibration Resistance:
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Mounting Position:
- any position in relation to normal vertical mounting plane
- Width:
- 22.5 mm
- Tightening Torque:
- 0.6-1 N.m IEC 60947-1
- Environmental Disclosure:
- ENVPEP1401008EN
- Repeat Accuracy:
- +/- 0.5 % IEC 61812-1
- Rohs Exemption Information:
- Yes
- Standards:
- IEC 61000-6-1 || IEC 61812-1 || IEC 61000-6-4 || IEC 61000-6-3 || IEC 61000-6-2
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Dielectric Strength:
- 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
- Maximum Delay Response:
- 100 ms
- Mercury Free:
- Yes
- China Rohs Regulation:
- X
- Connections - Terminals:
- screw terminals, 2 x 1.5 mm² with cable end || screw terminals, 2 x 2.5 mm² without cable end
