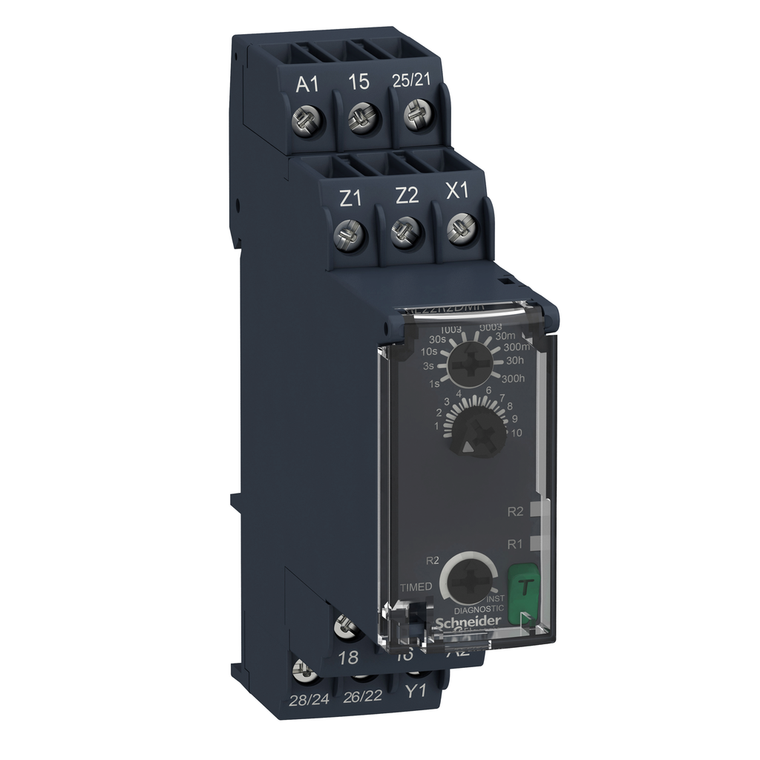

Schneider Electric RE22R2MWMR Pulse-On Energisation Timer Relay

Schneider Electric RE22R2MWMR Pulse-On Energisation Timer Relay

Schneider Electric
SKU:
RE22R2MWMR
|
UPC:
3606480792526
Availability:
Contact us to confirm availability and lead times.
$76.99
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony RE22 modular dual function timer can be set between 1 seconds and 300 hours." "It provides function W and function Wt and it is mountable on DIN rail." "This modular dual function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers." "It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device." "It also offers a sealable cover, simple and precise settings with rotary trimmers." "Selectable timing range offers a one stop solution for your power management system." "Dual function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0
Additional Information
Control Type:
rotary knob || diagnostic button || potentiometer external
Nominal Output Current:
0.333333333333333
Reset Time:
120 ms on de-energisation
Relative Humidity:
95-95 % 25-55 °C
Net Weight:
0.105 kg
[Uimp] Rated Impulse Withstand Voltage:
5 kV 1.2-50 µs IEC 60664-1
Minimum Pulse Duration:
100 ms with load in parallel || 30 ms
Environmental Disclosure:
ENVPEP1401008EN
Product Or Component Type:
dual function relay
Contacts Type And Composition:
1 C/O timed contact, cadmium free || 1 C/O timed or instantaneous contact, cadmium free
Pollution Degree:
3 IEC 60664-1
Ambient Air Temperature For Storage:
-40-70 °C
Status Led:
Green LED backlight steady)dial pointer indication || Yellow LED steady)output relay energised || Yellow LED fast flashing)timing in progress and output relay de-energised || Yellow LED slow flashing)timing in progress and output relay energised
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Dielectric Strength:
2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
Switching Capacity In Va:
2000 VA
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Voltage Range:
0.85...1.1 Us
Insulation Resistance:
100 MOhm 500 V DC IEC 60664-1
Power Consumption In Va:
3-3 VA 240 V AC
Directives:
2004/108/EC - electromagnetic compatibility || 2006/95/EC - low voltage directive
Maximum Switching Voltage:
250 V AC
Standards:
UL 508 || IEC 61812-1
Device Short Name:
RE22
Housing Material:
self-extinguishing
Electromagnetic Compatibility:
fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 || surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2
Range Of Product:
Harmony Timer Relays
Immunity To Microbreaks:
10 ms
Setting Accuracy Of Time Delay:
+/- 10 % of full scale 25 °C IEC 61812-1
Repeat Accuracy:
+/- 0.5 % IEC 61812-1
Mercury Free:
Yes
Safety Reliability Data:
B10d = 160000 || MTTFd = 171.2 years
Overvoltage Category:
III IEC 60664-1
Width:
22.5 mm
Ambient Air Temperature For Operation:
-20-60 °C
Circularity Profile:
ENVEOLI1401008EN
Maximum Delay Response:
100 ms
Temperature Drift:
+/- 0.05 %/°C
Supply Frequency:
50...60 Hz +/- 5 %
Sustainable Offer Status:
Green Premium product
Ip Degree Of Protection:
housing IP40 IEC 60529 || terminals IP20 IEC 60529 || front panel IP50 IEC 60529
Vibration Resistance:
20 m/s² 10-150 Hz)IEC 60068-2-6
Shock Resistance:
15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Minimum Switching Current:
10 mA 5 V DC
China Rohs Regulation:
X
Creepage Distance:
4 kV/3 IEC 60664-1
Tightening Torque:
0.6-1 N.m IEC 60947-1
Maximum Switching Current:
0.333333333333333
Time Delay Type:
interval
Power Consumption In W:
1.5 W 240 V DC
Time Delay Range:
0.05...1 s || 30...300 min || 30...300 s || 3...30 h || 0.3...3 s || 1...10 s || 3...30 s || 30...300 h || 3...30 min || 10...100 s
Electrical Durability:
100000 cycles, 8 A at 250 V, AC-1 || 100000 cycles, 2 A at 24 V, DC-1
Input Voltage:
<= 2.4 V
[Us] Rated Supply Voltage:
24...240 V AC/DC 50/60 Hz
Voltage Drift:
+/- 0.2 %/V
Mechanical Durability:
10000000 cycles
Rohs Exemption Information:
Yes
Product Certifications:
UL || GL || CE || CSA || RCM || EAC || CCC
Discrete Output Type:
relay
Connections - Terminals:
screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |
Mounting Position:
any position
Mounting Support:
35 mm DIN rail conforming to IEC 60715
Catalog:
View
Datasheet:
View
