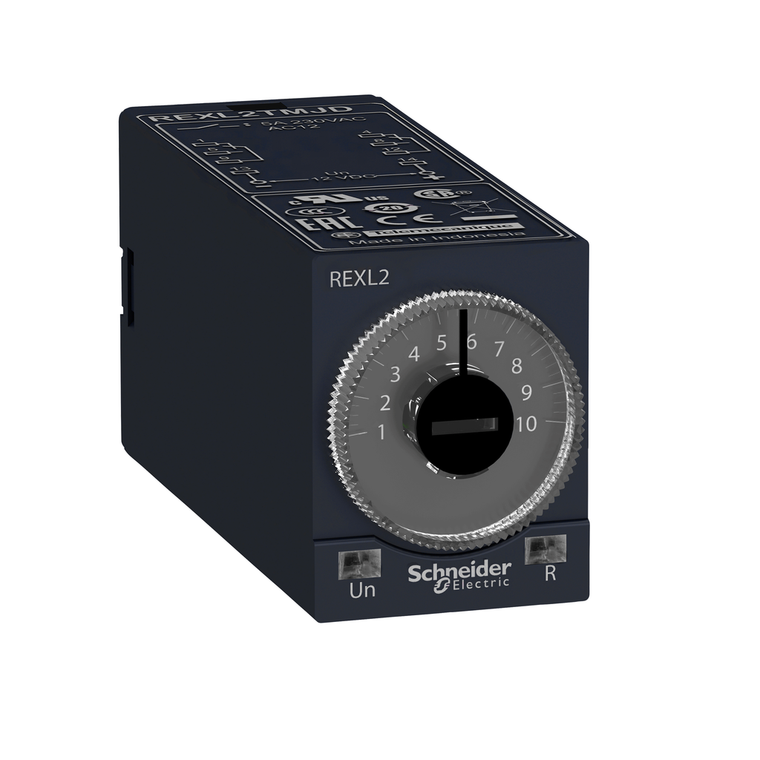

Schneider Electric REXL2TMJD Mini Plug-In Timer 2C/O 12Vdc

Schneider Electric REXL2TMJD Mini Plug-In Timer 2C/O 12Vdc

Schneider Electric
SKU:
REXL2TMJD
|
UPC:
3389119400008
$53.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Harmony REXL ON-delay timer can be set between 0.1 seconds and 100 hours." "It provides function A and it uses plug-in mounting." "This modular ON-delay timer is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers." "It is a plug-in device, meaning it is quick and easy to install with the need for tools." "It also offers a sealable cover, simple and precise settings with rotary trimmers." "It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time." "Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0
Additional Information
Minimum Switching Current:
100 mA
Dielectric Strength:
2 kV 1 mA/1 minute 50 Hz IEC 60601-1 || 2 kV 1 mA/1 minute 50 Hz IEC 61812-1
Contacts Type And Composition:
2 C/O
Vibration Resistance:
0.35 mm 10-55 Hz)IEC 60068-2-6
Disturbance Radiated/Conducted:
class B EN 55022 (EN 55011 group 1)
Environmental Disclosure:
ENVPEP1310019EN
Electrical Durability:
100000 cycles 250 V AC resistive
Immunity To Microbreaks:
5 ms
Component Name:
REXL
Ambient Air Temperature For Operation:
-20-60 °C
Setting Accuracy Of Time Delay:
10 % at full scale 25 °C IEC 61812-1
Mechanical Durability:
10000000 cycles
Time Delay Range:
10...100 h || 0.1...1 s || 1...10 s || 6...60 min || 1...10 h || 1...10 min || 6...60 s
Ip Degree Of Protection:
IP50 conforming to IEC 60529
Maximum Switching Capacity:
4 x 5 A
Time Delay Type:
power on-delay
Output Overvoltage Protection:
2 J
Product Certifications:
UL || cUL
Repeat Accuracy:
+/- 0.5 %
Creepage Distance:
4 kV/3 IEC 60664-1
Temporary Permissible Current:
10 A < 10 s
Sustainable Offer Status:
Green Premium product
Net Weight:
0.05 kg
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Power Consumption In W:
1.5 W
Resistance To Fast Transients:
2 kV IEC 61000-4-4 level 3
Range Of Product:
Harmony Timer Relays
[Us] Rated Supply Voltage:
12 V DC
Warranty:
18 months
China Rohs Regulation:
X
Voltage Drift:
+/- 0.2 %/V
Rohs Exemption Information:
Yes
Temperature Drift:
0.05 %/°C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Storage:
-40-70 °C
Immunity To Voltage Dips:
>= 95 % / 1 s IEC 61000-4-11 || 30 % / 10 ms IEC 61000-4-11 || 60 % / 100 ms IEC 61000-4-11
Immunity To Radioelectric Fields:
10 V 0.15...80 MHz)IEC 61000-4-6 level 3
Local Signalling:
for output in operation 1 LED (red) || for power ON 1 LED (yellow)
Discrete Output Type:
relay
Surge Withstand:
2 kV IEC 61000-4-5 level 3
Fixing Mode:
plug-in socket)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3 level 3
Mercury Free:
Yes
Line Rated Current:
5 A AC
[Ui] Rated Insulation Voltage:
250 V IEC 255 Group C || 250 V VDE 0010
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Contacts Material:
cadmium free
Relative Humidity:
95-95 % without condensation IEC 60068-2-6
Voltage Range:
0.9...1.1 Us
Circularity Profile:
N/A
Product Or Component Type:
single function relay
Resistance To Electrostatic Discharge:
6 kV in contact IEC 61000-4-2 level 3 || 8 kV in air IEC 61000-4-2 level 3
Reset Time:
250 ms after time delay, on de-energisation || 50 ms during time delay, on de-energisation
Standards:
93/68/EEC || IEC 61812-1 || IEC 60601-1 || 89/336/EEC || IEC 60601-2 || 73/23/EEC || IEC 61000-6-2 || EN 50081-2
