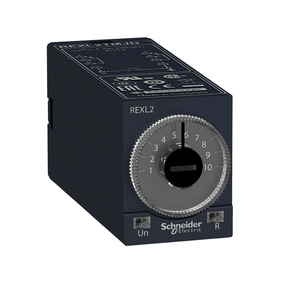

Schneider Electric REXL4TMBD Mini Plug-In Timer 4C/O 24Vdc

(No reviews yet) Write a Review

Write a Review

Schneider Electric REXL4TMBD Mini Plug-In Timer 4C/O 24Vdc

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

REXL4TMBD

UPC:

3389119400077

MPN:

Condition:

New

Creepage Distance:

4 kV/3 IEC 60664-1

Product Or Component Type:

single function relay

Standards:

IEC 60601-2 || IEC 61000-6-2 || 73/23/EEC || IEC 61812-1 || 93/68/EEC || IEC 60601-1 || 89/336/EEC || EN 50081-2

Time Delay Type:

power on-delay

Mechanical Durability:

10000000 cycles

Discrete Output Type:

relay

Rohs Exemption Information:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Dielectric Strength:

2 kV 1 mA/1 minute 50 Hz IEC 60601-1 || 2 kV 1 mA/1 minute 50 Hz IEC 61812-1

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Temporary Permissible Current:

10 A < 10 s

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3 level 3

Warranty:

18 months

Local Signalling:

for output in operation 1 LED (red) || for power ON 1 LED (yellow)

Disturbance Radiated/Conducted:

class B EN 55022 (EN 55011 group 1)

[Us] Rated Supply Voltage:

24 V DC

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Component Name:

REXL

Temperature Drift:

0.05 %/°C

Immunity To Microbreaks:

5 ms

Minimum Switching Current:

100 mA

Ambient Air Temperature For Operation:

-20-60 °C

Reset Time:

250 ms after time delay, on de-energisation || 50 ms during time delay, on de-energisation

Voltage Drift:

+/- 0.2 %/V

Voltage Range:

0.9...1.1 Us

Ip Degree Of Protection:

IP50 conforming to IEC 60529

Fixing Mode:

plug-in socket)

Power Consumption In W:

1.2 W

Contacts Material:

cadmium free

Product Certifications:

UL || cUL

Range Of Product:

Harmony Timer Relays

Net Weight:

0.05 kg

Immunity To Voltage Dips:

>= 95 % / 1 s IEC 61000-4-11 || 30 % / 10 ms IEC 61000-4-11 || 60 % / 100 ms IEC 61000-4-11

Line Rated Current:

5 A AC

Contacts Type And Composition:

4 C/O

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Circularity Profile:

N/A

Electrical Durability:

100000 cycles 250 V AC resistive

Resistance To Electrostatic Discharge:

6 kV in contact IEC 61000-4-2 level 3 || 8 kV in air IEC 61000-4-2 level 3

Vibration Resistance:

0.35 mm 10-55 Hz)IEC 60068-2-6

Maximum Switching Capacity:

4 x 5 A

Immunity To Radioelectric Fields:

10 V 0.15...80 MHz)IEC 61000-4-6 level 3

Repeat Accuracy:

+/- 0.5 %

China Rohs Regulation:

X

[Ui] Rated Insulation Voltage:

250 V IEC 255 Group C || 250 V VDE 0010

Output Overvoltage Protection:

2 J

Setting Accuracy Of Time Delay:

10 % at full scale 25 °C IEC 61812-1

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Relative Humidity:

95-95 % without condensation IEC 60068-2-6

Resistance To Fast Transients:

2 kV IEC 61000-4-4 level 3

Environmental Disclosure:

ENVPEP1310019EN

Time Delay Range:

10...100 h || 6...60 s || 6...60 min || 1...10 s || 1...10 h || 1...10 min || 0.1...1 s

Sustainable Offer Status:

Green Premium product

Surge Withstand:

2 kV IEC 61000-4-5 level 3

Catalog:

View

Datasheet:

View
