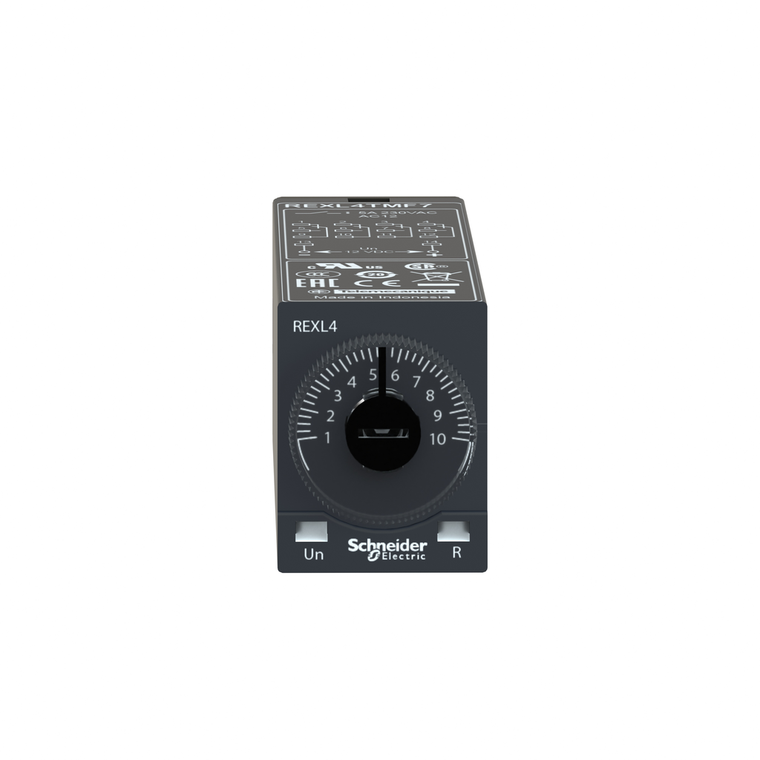

Schneider Electric REXL4TMF7 Mini Plug-In Timer 4C/O 110Vac

Schneider Electric REXL4TMF7 Mini Plug-In Timer 4C/O 110Vac

Schneider Electric
SKU:
REXL4TMF7
|
UPC:
3389119400091
$56.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Harmony REXL timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 5A, is 48mm wide and can be supplied with 120V AC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Additional Information
Immunity To Voltage Dips:
>= 95 % / 1 s IEC 61000-4-11 || 30 % / 10 ms IEC 61000-4-11 || 60 % / 100 ms IEC 61000-4-11
Range Of Product:
Harmony Timer Relays
Maximum Switching Capacity:
4 x 5 A
Net Weight:
0.05 kg
Warranty:
18 months
Environmental Disclosure:
ENVPEP1310019EN
Resistance To Fast Transients:
2 kV IEC 61000-4-4 level 3
Output Overvoltage Protection:
2 J
Time Delay Range:
1...10 min || 10...100 h || 6...60 s || 0.1...1 s || 1...10 h || 6...60 min || 1...10 s
Component Name:
REXL
Ambient Air Temperature For Operation:
-20-60 °C
Product Certifications:
cUL || UL
[Ui] Rated Insulation Voltage:
250 V IEC 255 Group C || 250 V VDE 0010
Line Rated Current:
5 A AC
Voltage Drift:
+/- 0.2 %/V
Time Delay Type:
power on-delay
Dielectric Strength:
2 kV 1 mA/1 minute 50 Hz IEC 60601-1 || 2 kV 1 mA/1 minute 50 Hz IEC 61812-1
Reset Time:
250 ms after time delay, on de-energisation || 50 ms during time delay, on de-energisation
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Vibration Resistance:
0.35 mm 10-55 Hz)IEC 60068-2-6
Disturbance Radiated/Conducted:
class B EN 55022 (EN 55011 group 1)
Rohs Exemption Information:
Yes
Fixing Mode:
plug-in socket)
Temporary Permissible Current:
10 A < 10 s
Contacts Material:
cadmium free
Repeat Accuracy:
+/- 0.5 %
Mercury Free:
Yes
Relative Humidity:
95-95 % without condensation IEC 60068-2-6
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Contacts Type And Composition:
4 C/O
[Us] Rated Supply Voltage:
120 V AC 50/60 Hz
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Minimum Switching Current:
100 mA
Electrical Durability:
100000 cycles 250 V AC resistive
Product Or Component Type:
single function relay
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3 level 3
Mechanical Durability:
10000000 cycles
Local Signalling:
for output in operation 1 LED (red) || for power ON 1 LED (yellow)
China Rohs Regulation:
X
Sustainable Offer Status:
Green Premium product
Setting Accuracy Of Time Delay:
10 % at full scale 25 °C IEC 61812-1
Surge Withstand:
2 kV IEC 61000-4-5 level 3
Discrete Output Type:
relay
Immunity To Microbreaks:
5 ms
Standards:
IEC 61000-6-2 || IEC 60601-1 || 89/336/EEC || 93/68/EEC || IEC 61812-1 || IEC 60601-2 || 73/23/EEC || EN 50081-2
Ambient Air Temperature For Storage:
-40-70 °C
Circularity Profile:
N/A
Creepage Distance:
4 kV/3 IEC 60664-1
Resistance To Electrostatic Discharge:
6 kV in contact IEC 61000-4-2 level 3 || 8 kV in air IEC 61000-4-2 level 3
Power Consumption In Va:
2.6 VA
Immunity To Radioelectric Fields:
10 V 0.15...80 MHz)IEC 61000-4-6 level 3
Ip Degree Of Protection:
IP50 conforming to IEC 60529
Temperature Drift:
0.05 %/°C
Voltage Range:
0.85...1.15 Us
