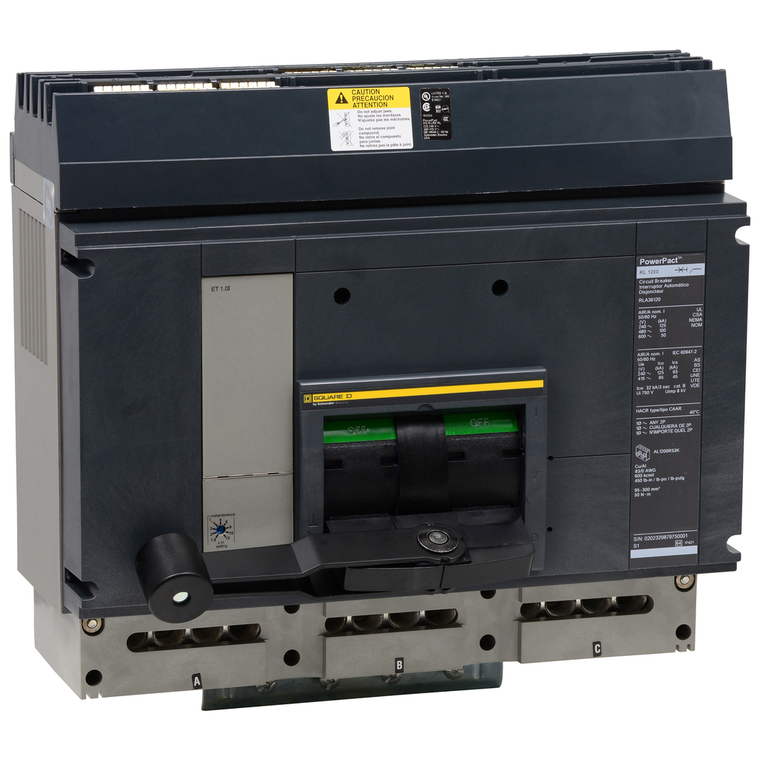

Schneider Electric RGA36120CU31A Molded Case Circuit Breaker 600V 1200A

Schneider Electric RGA36120CU31A Molded Case Circuit Breaker 600V 1200A

Schneider Electric
SKU:
RGA36120CU31A
|
UPC:
785901566519
Availability:
Contact us to confirm availability and lead times.
$33,945.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard Trip with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. The circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Product Name:
PowerPact R
Mounting Mode:
I-Line bracket)
Pollution Degree:
3 IEC 60947-1
Trip Unit Technology:
electronic, standard, MicroLogic 3.0, LI
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Ip Degree Of Protection:
IP40
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Pvc Free:
Yes
Awg Gauge:
4 x AWG 3/0…600 kcmil aluminium/copper || 4 x AWG 3/0...500 kcmil copper
Control Type:
operating handle
Device Application:
distribution
Utilisation Category:
category A
Breaking Capacity Code:
G
Wire Stripping Length:
30 mm
Ambient Air Temperature For Storage:
-50-85 °C
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Trip Unit Name:
MicroLogic 3.0
Local Signalling:
alarm 1 LED yellow)long-time pick up)
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Quantity Per Set:
1
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Range:
PowerPact
Width:
14.96 in
Electrical Connection:
I-Line connection, line || lugs, load
Network Frequency:
50/60 Hz
Environmental Disclosure:
ENVPEP1407013EN
Terminal Identifier:
AL1200R53K
Line Rated Current:
1200-1200 A
Warranty:
18 months
Depth:
13.78 in
Circularity Profile:
ENVEOLI1407013EN
Mercury Free:
Yes
Quality Labels:
CE
Sustainable Offer Status:
Green Premium product
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Tightening Torque:
28-28 N.m 95-240 mm² (4 x AWG 3/0…600 kcmil)
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Halogen Content Performance:
Halogen free plastic parts product
Height:
13.38 in
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Compliant
Poles Description:
3P
Net Weight:
52 lb(US)
Product Certifications:
UL || CSA || NOM
Continuous Current Rating:
1
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Ambient Air Temperature For Operation:
-25-70 °C
Mounting Support:
bracket
Product Or Component Type:
circuit breaker
Suitability For Isolation:
yes IEC 60947-2
Circuit Breaker Application:
HACR rated
