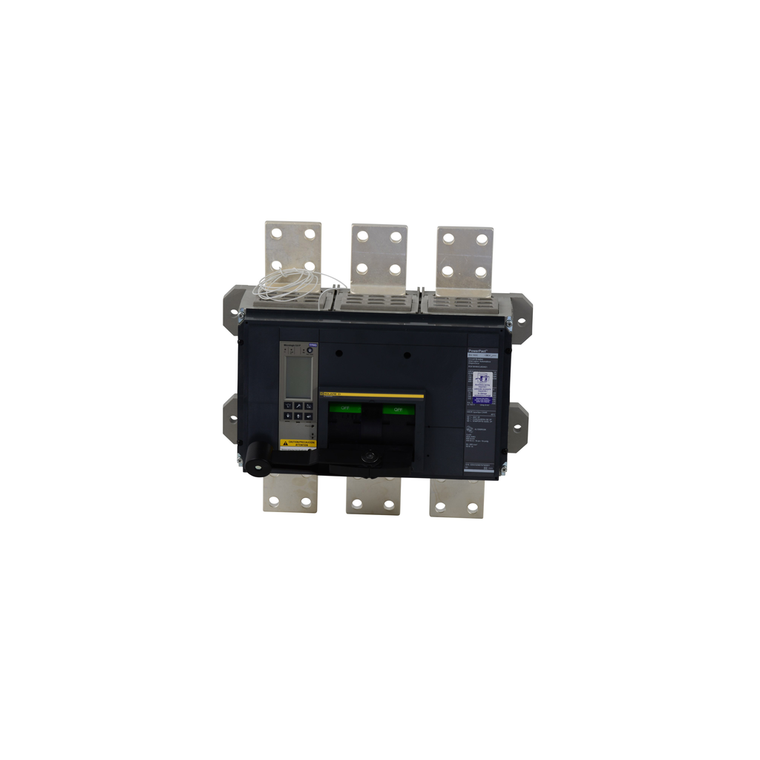

Schneider Electric RGF36160CU63AE1 Molded Case Circuit Breaker 600V 1600A

Schneider Electric RGF36160CU63AE1 Molded Case Circuit Breaker 600V 1600A

Schneider Electric
SKU:
RGF36160CU63AE1
|
UPC:
785901982753
Availability:
Contact us to confirm availability and lead times.
$35,859.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Power Trip with a 5.0P trip unit and an LSI function with Modbus communication. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 1600A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. The circuit breaker has a continuous current rating of 100%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Ambient Air Temperature For Operation:
-25-70 °C
Utilisation Category:
category A
Continuous Current Rating:
1
Net Weight:
52 lb(US)
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Warranty:
18 months
Local Signalling:
alarm 1 LED yellow)long-time pick up) || 1 LED red)long-time pick up) || trip causes 1 LED red) || 1 LED red)digital ammeter) || phase-loading LED green)load balancing)
Eu Rohs Directive:
Compliant with Exemptions
Rohs Exemption Information:
Yes
Product Name:
PowerPact R
Awg Gauge:
AWG 3/0...750 kcmil aluminium/copper
Halogen Content Performance:
Halogen free plastic parts product
Width:
16.53 in
Line Rated Current:
1600-1600 A
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Sustainable Offer Status:
Green Premium product
Breaking Capacity Code:
G
Mercury Free:
Yes
Network Frequency:
50/60 Hz
Control Type:
operating handle
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Depth:
14.49 in
Height:
16.24 in
Pvc Free:
Yes
Product Or Component Type:
circuit breaker
Circuit Breaker Application:
HACR rated
Product Certifications:
UL || CSA || NOM
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Device Application:
distribution
Terminal Identifier:
AL2500RK
Electrical Connection:
busbar connection, line || busbar connection, load
Environmental Disclosure:
ENVPEP2206034EN
Wire Stripping Length:
35 mm
Tightening Torque:
62-62 N.m 50-400 mm² (AWG 1/0...750 kcmil) || 62-62 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
Ip Degree Of Protection:
IP40
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Trip Unit Name:
MicroLogic 5.0 P
Quality Labels:
CE
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Communication Interface:
Modbus
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Range:
PowerPact
Poles Description:
3P
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Mounting Mode:
unit mount busbar)
Mounting Support:
busbar
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage:
-50-85 °C
Circularity Profile:
ENVEOLI2206034EN
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Quantity Per Set:
1
Trip Unit Technology:
electronic, power, MicroLogic 5.0 P, LSI
Pollution Degree:
3 IEC 60947-1
Suitability For Isolation:
yes IEC 60947-2
