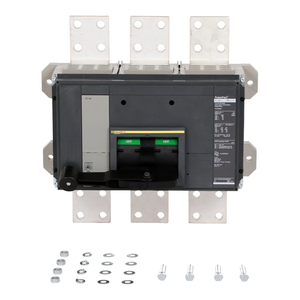

Schneider Electric RGF36160U44A Molded Case Circuit Breaker 600V 1600A

Schneider Electric RGF36160U44A Molded Case Circuit Breaker 600V 1600A

Schneider Electric
SKU:
RGF36160U44A
|
UPC:
785901607236
$27,378.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 1600A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. The circuit breaker has a continuous current rating of 80%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Electrical Connection:
busbar connection, line || busbar connection, load
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Sustainable Offer Status:
Green Premium product
Ip Degree Of Protection:
IP40
Breaking Capacity Code:
G
Height:
16.24 in
Wire Stripping Length:
35 mm
Awg Gauge:
AWG 3/0...750 kcmil aluminium/copper
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Trip Unit Name:
MicroLogic 6.0 A
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circularity Profile:
ENVEOLI2206034EN
Net Weight:
52 lb(US)
Quantity Per Set:
1
Mercury Free:
Yes
Range:
PowerPact
Quality Labels:
CE
Product Certifications:
UL || CSA || NOM
Tightening Torque:
68-68 N.m 50-400 mm² (AWG 1/0...750 kcmil) || 68-68 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
Pollution Degree:
3 IEC 60947-1
Product Or Component Type:
circuit breaker
Suitability For Isolation:
yes IEC 60947-2
Circuit Breaker Application:
HACR rated
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Width:
16.53 in
Mounting Mode:
unit mount busbar)
Environmental Disclosure:
ENVPEP2206034EN
Network Frequency:
50/60 Hz
Mounting Support:
busbar
Warranty:
18 months
Poles Description:
3P
Local Signalling:
alarm 1 LED yellow)long-time pick up) || 1 LED red)long-time pick up) || trip causes 1 LED red) || 1 LED red)digital ammeter) || ground indicator 1 LED red) || phase-loading LED green)load balancing)
Control Type:
operating handle
Pvc Free:
Yes
Halogen Content Performance:
Halogen free plastic parts product
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage:
-50-85 °C
Continuous Current Rating:
0.8
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Device Application:
distribution
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Ambient Air Temperature For Operation:
-25-70 °C
Utilisation Category:
category A
Trip Unit Technology:
electronic, ammeter, MicroLogic 6.0 A, LSIG
Line Rated Current:
1600-1600 A
Eu Rohs Directive:
Compliant with Exemptions
Rohs Exemption Information:
Yes
Depth:
14.49 in
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Terminal Identifier:
AL2500RK
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Product Name:
PowerPact R
Brochure:
View
Catalog:
View
Datasheet:
View
