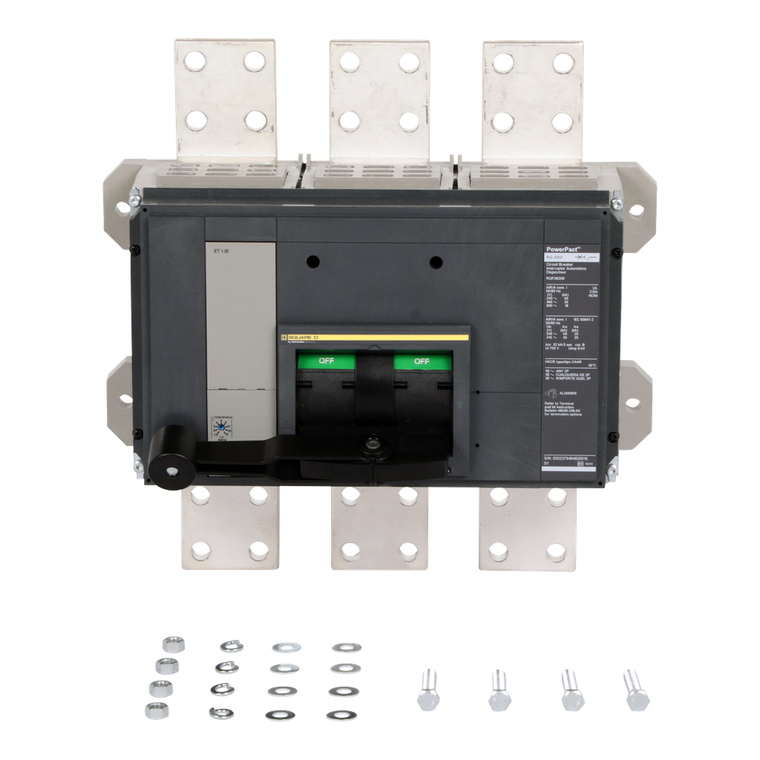

Schneider Electric RGF36200 Molded Case Circuit Breaker 600V 2000A

Schneider Electric RGF36200 Molded Case Circuit Breaker 600V 2000A

Schneider Electric
SKU:
RGF36200
|
UPC:
785901238447
$22,373.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has an electronic trip unit, ET 1.0I. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 2000A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. The circuit breaker has a continuous current rating of 80%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Ambient Air Temperature For Storage:
-50-85 °C
Rohs Exemption Information:
Yes
Suitability For Isolation:
yes IEC 60947-2
Environmental Disclosure:
ENVPEP2206034EN
Breaking Capacity Code:
G
Continuous Current Rating:
0.8
Trip Unit Name:
ET 1.0I
Product Name:
PowerPact R
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Product Or Component Type:
circuit breaker
Line Rated Current:
2000-2000 A
Halogen Content Performance:
Halogen free plastic parts product
Range:
PowerPact
Net Weight:
52 lb(US)
Mounting Mode:
unit mount busbar)
Pollution Degree:
3 IEC 60947-1
Control Type:
operating handle
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Sustainable Offer Status:
Green Premium product
Magnetic Tripping Current:
3000-24000 A
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Electrical Connection:
busbar connection, line || busbar connection, load
Local Signalling:
trip indicator
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Tightening Torque:
68-68 N.m 50-400 mm² (AWG 1/0...750 kcmil) || 68-68 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circuit Breaker Application:
HACR rated
Ambient Air Temperature For Operation:
-25-70 °C
Wire Stripping Length:
35 mm
Terminal Identifier:
AL2500RK
Trip Unit Technology:
electronic, basic, ET 1.0I, I
Width:
16.53 in
Device Application:
distribution
Mercury Free:
Yes
Poles Description:
3P
Height:
16.24 in
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Quantity Per Set:
1
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Depth:
14.49 in
Network Frequency:
50/60 Hz
Product Certifications:
UL || CSA || NOM
Mounting Support:
busbar
Warranty:
18 months
Awg Gauge:
AWG 3/0...750 kcmil aluminium/copper
Utilisation Category:
category A
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Quality Labels:
CE
Eu Rohs Directive:
Compliant with Exemptions
Pvc Free:
Yes
Ip Degree Of Protection:
IP40
Circularity Profile:
ENVEOLI2206034EN
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
