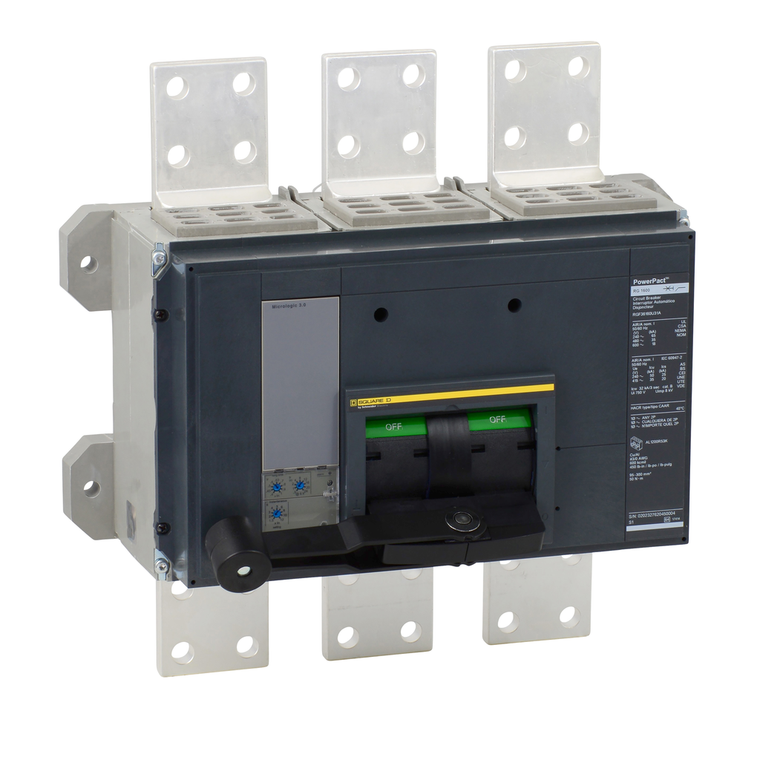

Schneider Electric RGF36250CU31A Molded Case Circuit Breaker 600V 2500A

Schneider Electric RGF36250CU31A Molded Case Circuit Breaker 600V 2500A

Schneider Electric
SKU:
RGF36250CU31A
|
UPC:
785901536635
$57,075.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard Trip with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 2500A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. The circuit breaker has a continuous current rating of 100%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Product Or Component Type:
circuit breaker
Pvc Free:
Yes
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Ambient Air Temperature For Storage:
-50-85 °C
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Mounting Mode:
unit mount busbar)
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Trip Unit Technology:
electronic, standard, MicroLogic 3.0, LI
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Quantity Per Set:
1
Sustainable Offer Status:
Green Premium product
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Depth:
14.49 in
Breaking Capacity Code:
G
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Pollution Degree:
3 IEC 60947-1
Continuous Current Rating:
1
Wire Stripping Length:
35 mm
Terminal Identifier:
AL2500RK
Circularity Profile:
ENVEOLI2206034EN
Line Rated Current:
2500-2500 A
Height:
16.24 in
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Trip Unit Name:
MicroLogic 3.0
Local Signalling:
alarm 1 LED yellow)long-time pick up)
Halogen Content Performance:
Halogen free plastic parts product
Utilisation Category:
category A
Environmental Disclosure:
ENVPEP2206034EN
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Ambient Air Temperature For Operation:
-25-70 °C
Network Frequency:
50/60 Hz
Tightening Torque:
62-62 N.m 50-400 mm² (AWG 1/0...750 kcmil) || 62-62 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
Product Certifications:
UL || CSA || NOM
Device Application:
distribution
Rohs Exemption Information:
Yes
Width:
16.53 in
Awg Gauge:
AWG 3/0...750 kcmil aluminium/copper
Mounting Support:
busbar
Circuit Breaker Application:
HACR rated
Electrical Connection:
busbar connection, line || busbar connection, load
Product Name:
PowerPact R
Quality Labels:
CE
Suitability For Isolation:
yes IEC 60947-2
Mercury Free:
Yes
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Poles Description:
3P
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Ip Degree Of Protection:
IP40
Range:
PowerPact
Warranty:
18 months
Eu Rohs Directive:
Compliant with Exemptions
Control Type:
operating handle
Net Weight:
52 lb(US)
