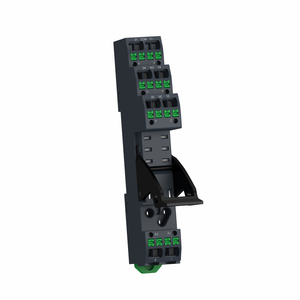

Schneider Electric RGZE05P Rgz Push-In Socket With Clamp For Rxg1
SKU:
RGZE05P
UPC:
3606481465702
MPN:
Condition:
New
[Ue] Rated Operational Voltage:
250 V IEC || 300 V UL
Toxic Heavy Metal Free:
Yes
Reach Free Of Svhc:
Yes
Range Of Product:
Harmony Electromechanical Relays
Mercury Free:
Yes
[Uimp] Rated Impulse Withstand Voltage:
6 kV between coil and contact with reinforced insulation || 4 kV between terminals and DIN rail with basic insulation
Product Or Component Type:
socket
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
X
Fixing Mode:
clip-on 35 mm symmetrical DIN rail)
Contact Terminal Arrangement:
separate
Product Certifications:
CSA || UL || EAC || DNV-GL
Width:
16 mm
Rohs Exemption Information:
Yes
Connections - Terminals:
spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) flexible with cable end || spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Shape Of Pin:
flat
Ambient Air Temperature For Operation:
-40-70 °C
Device Short Name:
RGZ
Height:
67 mm
Net Weight:
0.039 kg
Overvoltage Category:
III
Dielectric Strength:
5 kV between coil and contact with reinforced insulation || 3 kV between terminals and DIN rail with basic insulation
Length:
98 mm
[Ui] Rated Insulation Voltage:
250 V
Marking:
CE
Ambient Air Temperature For Storage:
-40-85 °C
Pollution Degree:
3
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Ip Degree Of Protection:
IP20
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Standards:
IEC 61984
Contacts Type And Composition:
1 C/O
Product Compatibility:
plug-in relay RXG 1 C/O
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
