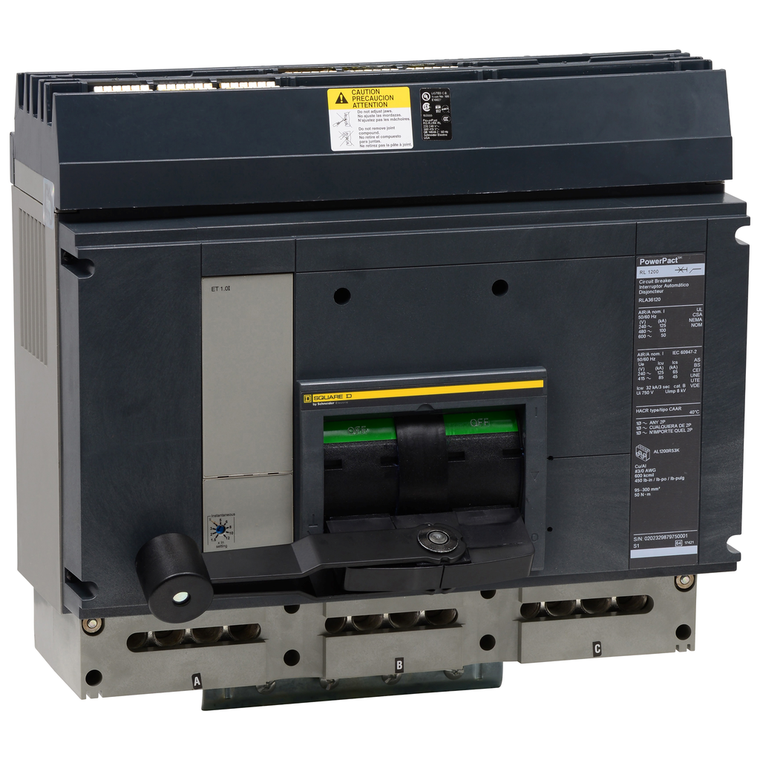

Schneider Electric RJA36120CU31A Molded Case Circuit Breaker 600V 1200A

Schneider Electric RJA36120CU31A Molded Case Circuit Breaker 600V 1200A

Schneider Electric
SKU:
RJA36120CU31A
|
UPC:
785901788836
Availability:
Contact us to confirm availability and lead times.
$36,111.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard Trip with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. The circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Terminal Identifier:
AL1200R53K
Pollution Degree:
3 IEC 60947-1
Environmental Disclosure:
ENVPEP2206034EN
Range:
PowerPact
Net Weight:
52 lb(US)
Mercury Free:
Yes
Ambient Air Temperature For Operation:
-25-70 °C
Height:
13.38 in
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Ambient Air Temperature For Storage:
-50-85 °C
Circularity Profile:
ENVEOLI2206034EN
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Mounting Mode:
I-Line bracket)
Network Frequency:
50/60 Hz
Product Or Component Type:
circuit breaker
Width:
14.96 in
Product Name:
PowerPact R
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Mounting Support:
bracket
Depth:
13.78 in
Quality Labels:
CE
Circuit Breaker Application:
HACR rated
Trip Unit Technology:
electronic, standard, MicroLogic 3.0, LI
Poles Description:
3P
Halogen Content Performance:
Halogen free plastic parts product
Eu Rohs Directive:
Compliant with Exemptions
Quantity Per Set:
1
Warranty:
18 months
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Sustainable Offer Status:
Green Premium product
Trip Unit Name:
MicroLogic 3.0
Utilisation Category:
category A
Control Type:
operating handle
Suitability For Isolation:
yes IEC 60947-2
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Device Application:
distribution
Continuous Current Rating:
1
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
IP40
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Wire Stripping Length:
30 mm
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Certifications:
UL || CSA || NOM
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Electrical Connection:
I-Line connection, line || lugs, load
Pvc Free:
Yes
Tightening Torque:
28-28 N.m 95-240 mm² (4 x AWG 3/0…600 kcmil)
Line Rated Current:
1200-1200 A
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Awg Gauge:
4 x AWG 3/0…600 kcmil aluminium/copper || 4 x AWG 3/0...500 kcmil copper
Local Signalling:
alarm 1 LED yellow)long-time pick up)
Breaking Capacity Code:
J
