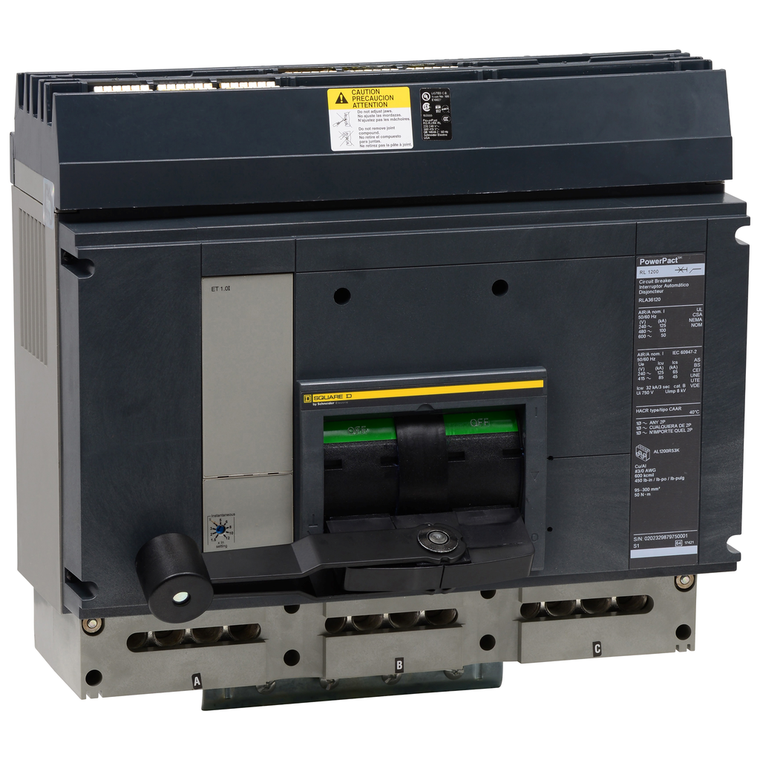

Schneider Electric RJA36120CU33A Molded Case Circuit Breaker 600V 1200A

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric RJA36120CU33A Molded Case Circuit Breaker 600V 1200A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RJA36120CU33A

UPC:

7.85902E+11

MPN:

Condition:

New

Pollution Degree:

3 IEC 60947-1

Electrical Connection:

I-Line connection, line || lugs, load

[Ue] Rated Operational Voltage:

600 V AC 50/60 Hz UL 489

Breaking Capacity:

AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2

Terminal Identifier:

AL1200R53K

Pvc Free:

Yes

Mercury Free:

Yes

Suitability For Isolation:

yes IEC 60947-2

Circuit Breaker Application:

HACR rated

Quality Labels:

CE

Trip Unit Technology:

electronic, standard, MicroLogic 5.0, LSI

Standards:

UL || CSA || NEMA || NMX J-266 || IEC 60947-2

Halogen Content Performance:

Halogen free plastic parts product

Sustainable Offer Status:

Green Premium product

Line Rated Current:

1200-1200 A

Ambient Air Temperature For Operation:

-25-70 °C

Net Weight:

52 lb(US)

Height:

13.38 in

Awg Gauge:

4 x AWG 3/0…600 kcmil aluminium/copper || 4 x AWG 3/0...500 kcmil copper

Eu Rohs Directive:

Compliant with Exemptions

Tightening Torque:

28-28 N.m 95-240 mm² (4 x AWG 3/0…600 kcmil)

Product Name:

PowerPact R

Device Application:

distribution

Rohs Exemption Information:

Yes

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating

Ip Degree Of Protection:

IP40

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Quantity Per Set:

1

Mounting Support:

bracket

Breaking Capacity Code:

J

Control Type:

operating handle

Mounting Mode:

I-Line bracket)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Wire Stripping Length:

30 mm

Poles Description:

3P

Product Certifications:

UL || CSA || NOM

Product Or Component Type:

circuit breaker

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Range:

PowerPact

Network Frequency:

50/60 Hz

Ambient Air Temperature For Storage:

-50-85 °C

Local Signalling:

alarm 1 LED yellow)long-time pick up)

Width:

14.96 in

[Ics] Rated Service Breaking Capacity:

35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Depth:

13.78 in

Environmental Disclosure:

ENVPEP2206034EN

Continuous Current Rating:

1

Circularity Profile:

ENVEOLI2206034EN

Utilisation Category:

category A

Trip Unit Name:

MicroLogic 5.0

Warranty:

18 months
