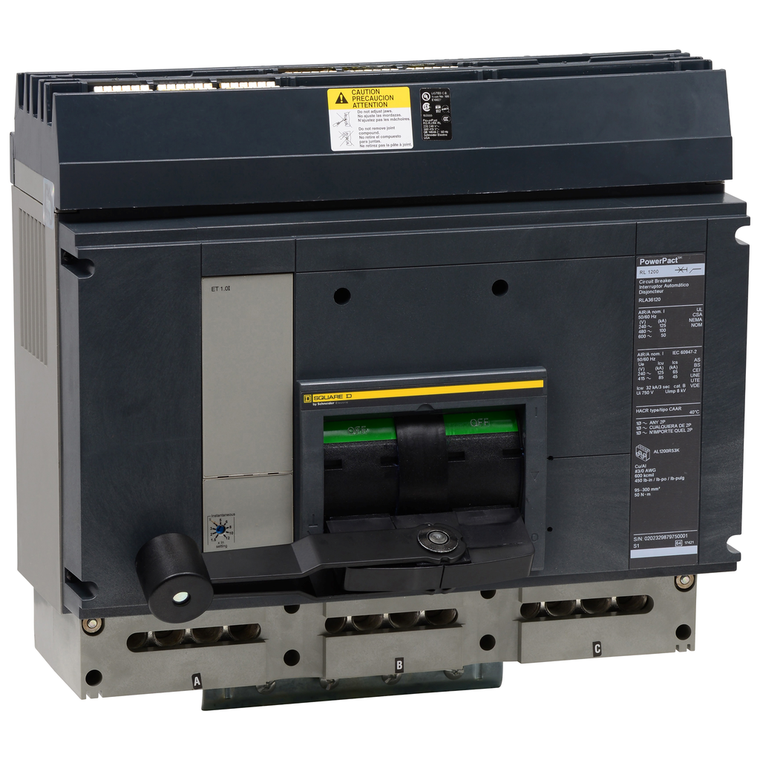

Schneider Electric RJA36120CU44A Molded Case Circuit Breaker 600V 1200A

Schneider Electric RJA36120CU44A Molded Case Circuit Breaker 600V 1200A

Schneider Electric
SKU:
RJA36120CU44A
|
UPC:
785901566526
Availability:
Contact us to confirm availability and lead times.
$40,829.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. The circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Awg Gauge:
4 x AWG 3/0…600 kcmil aluminium/copper || 4 x AWG 3/0...500 kcmil copper
Continuous Current Rating:
1
Height:
13.38 in
Ambient Air Temperature For Operation:
-25-70 °C
Depth:
13.78 in
Pvc Free:
Yes
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Quantity Per Set:
1
Circularity Profile:
ENVEOLI2206034EN
Control Type:
operating handle
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Product Certifications:
UL || CSA || NOM
Terminal Identifier:
AL1200R53K
Quality Labels:
CE
Ambient Air Temperature For Storage:
-50-85 °C
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Product Name:
PowerPact R
Pollution Degree:
3 IEC 60947-1
Network Frequency:
50/60 Hz
Poles Description:
3P
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Warranty:
18 months
Trip Unit Technology:
electronic, ammeter, MicroLogic 6.0 A, LSIG
Local Signalling:
alarm 1 LED yellow)long-time pick up) || 1 LED red)long-time pick up) || trip causes 1 LED red) || 1 LED red)digital ammeter) || ground indicator 1 LED red) || phase-loading LED green)load balancing)
Circuit Breaker Application:
HACR rated
Tightening Torque:
28-28 N.m 95-240 mm² (4 x AWG 3/0…600 kcmil)
Suitability For Isolation:
yes IEC 60947-2
Mounting Support:
bracket
Ip Degree Of Protection:
IP40
Mercury Free:
Yes
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Rohs Exemption Information:
Yes
Net Weight:
52 lb(US)
Product Or Component Type:
circuit breaker
Eu Rohs Directive:
Compliant with Exemptions
Utilisation Category:
category A
Mounting Mode:
I-Line bracket)
Range:
PowerPact
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Width:
14.96 in
Breaking Capacity Code:
J
Wire Stripping Length:
30 mm
Trip Unit Name:
MicroLogic 6.0 A
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Device Application:
distribution
Environmental Disclosure:
ENVPEP2206034EN
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Electrical Connection:
I-Line connection, line || lugs, load
Line Rated Current:
1200-1200 A
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Halogen Content Performance:
Halogen free plastic parts product
