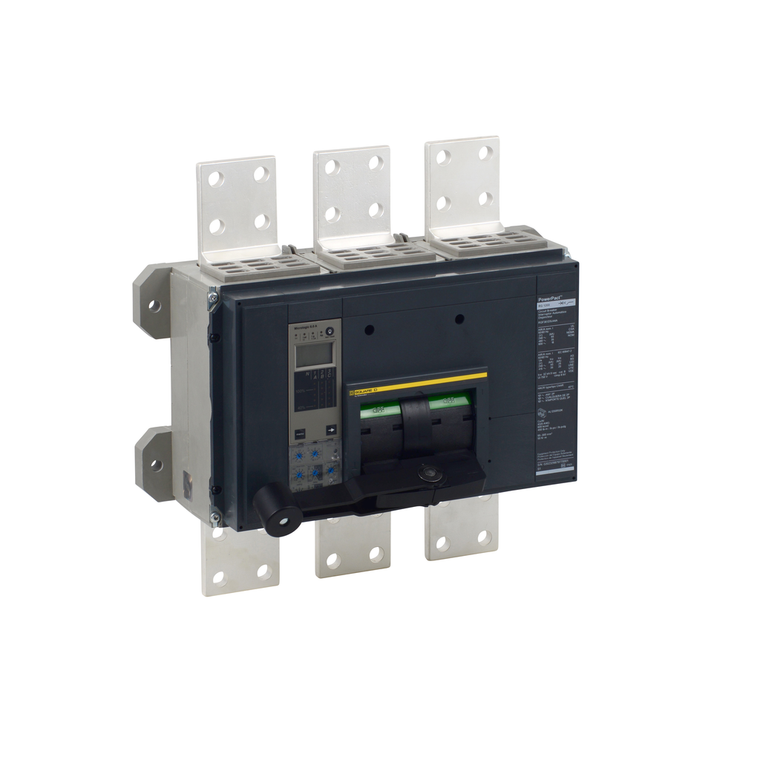

Schneider Electric RJF36120CU44A Molded Case Circuit Breaker 600V 1200A

Schneider Electric RJF36120CU44A Molded Case Circuit Breaker 600V 1200A

Schneider Electric
SKU:
RJF36120CU44A
|
UPC:
7.85901E+11
Availability:
Contact us to confirm availability and lead times.
$33,308.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. The circuit breaker has a continuous current rating of 100%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Product Certifications:
UL || CSA || NOM
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Circularity Profile:
ENVEOLI2206034EN
Environmental Disclosure:
ENVPEP2206034EN
Utilisation Category:
category A
Wire Stripping Length:
35 mm
Line Rated Current:
1200-1200 A
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Continuous Current Rating:
1
Trip Unit Technology:
electronic, ammeter, MicroLogic 6.0 A, LSIG
Depth:
14.49 in
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Pollution Degree:
3 IEC 60947-1
Breaking Capacity Code:
J
Halogen Content Performance:
Halogen free plastic parts product
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Tightening Torque:
68-68 N.m 50-400 mm² (AWG 1/0...750 kcmil) || 68-68 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
Suitability For Isolation:
yes IEC 60947-2
Ip Degree Of Protection:
IP40
Circuit Breaker Application:
HACR rated
Quantity Per Set:
1
Product Name:
PowerPact R
Electrical Connection:
busbar connection, line || busbar connection, load
Local Signalling:
alarm 1 LED yellow)long-time pick up) || 1 LED red)long-time pick up) || trip causes 1 LED red) || 1 LED red)digital ammeter) || ground indicator 1 LED red) || phase-loading LED green)load balancing)
Range:
PowerPact
Warranty:
18 months
Network Frequency:
50/60 Hz
Device Application:
distribution
Awg Gauge:
AWG 3/0...750 kcmil aluminium/copper
Width:
16.53 in
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Pvc Free:
Yes
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Height:
16.24 in
Ambient Air Temperature For Operation:
-25-70 °C
Mercury Free:
Yes
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Product Or Component Type:
circuit breaker
Sustainable Offer Status:
Green Premium product
Mounting Mode:
unit mount busbar)
Eu Rohs Directive:
Compliant with Exemptions
Quality Labels:
CE
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Rohs Exemption Information:
Yes
Poles Description:
3P
Mounting Support:
busbar
Control Type:
operating handle
Terminal Identifier:
AL2500RK
Ambient Air Temperature For Storage:
-50-85 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Net Weight:
52 lb(US)
Trip Unit Name:
MicroLogic 6.0 A
