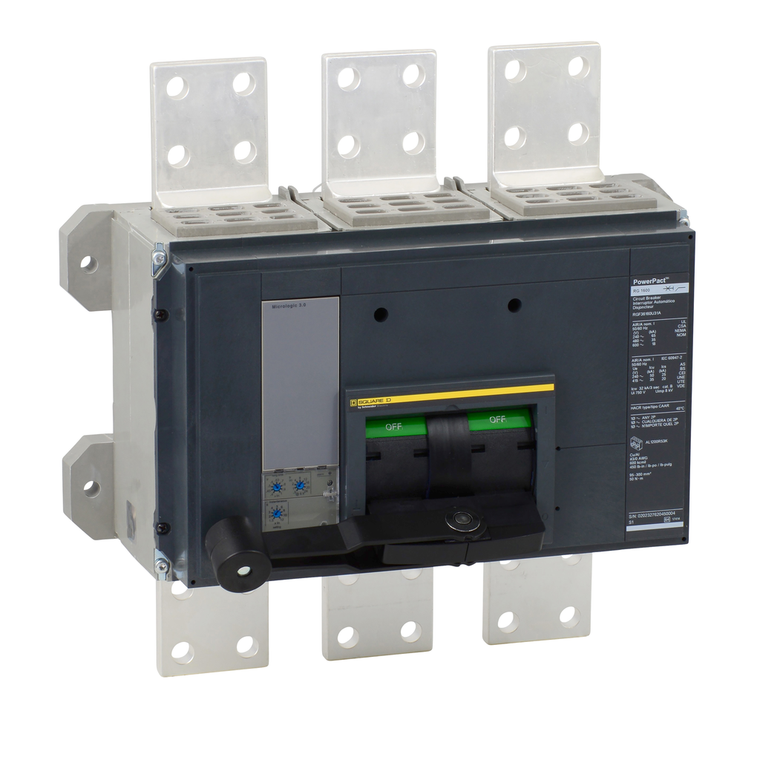

Schneider Electric RJF36200U31A Molded Case Circuit Breaker 600V 2000A

Schneider Electric RJF36200U31A Molded Case Circuit Breaker 600V 2000A

Schneider Electric
SKU:
RJF36200U31A
|
UPC:
785901413110
Availability:
Factory stock
$22,726.08
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard Trip with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 2000A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. The circuit breaker has a continuous current rating of 80%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Tightening Torque:
68-68 N.m 50-400 mm² (AWG 1/0...750 kcmil) || 68-68 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Continuous Current Rating:
0.8
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Sustainable Offer Status:
Green Premium product
Utilisation Category:
category A
Poles Description:
3P
Mounting Mode:
unit mount busbar)
Network Frequency:
50/60 Hz
Circuit Breaker Application:
HACR rated
Warranty:
18 months
Trip Unit Technology:
electronic, standard, MicroLogic 3.0, LI
Mounting Support:
busbar
Terminal Identifier:
AL2500RK
Pollution Degree:
3 IEC 60947-1
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Eu Rohs Directive:
Compliant with Exemptions
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Trip Unit Name:
MicroLogic 3.0
Product Certifications:
UL || CSA || NOM
Quality Labels:
CE
Range:
PowerPact
Net Weight:
52 lb(US)
Product Name:
PowerPact R
Product Or Component Type:
circuit breaker
Device Application:
distribution
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Local Signalling:
alarm 1 LED yellow)long-time pick up)
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Ambient Air Temperature For Storage:
-50-85 °C
Electrical Connection:
busbar connection, line || busbar connection, load
Quantity Per Set:
1
Ambient Air Temperature For Operation:
-25-70 °C
Width:
16.53 in
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Awg Gauge:
AWG 3/0...750 kcmil aluminium/copper
Height:
16.24 in
Line Rated Current:
2000-2000 A
Environmental Disclosure:
ENVPEP2206034EN
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Wire Stripping Length:
35 mm
Circularity Profile:
ENVEOLI2206034EN
Mercury Free:
Yes
Pvc Free:
Yes
Depth:
14.49 in
Suitability For Isolation:
yes IEC 60947-2
Halogen Content Performance:
Halogen free plastic parts product
Control Type:
operating handle
Breaking Capacity Code:
J
Ip Degree Of Protection:
IP40
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
