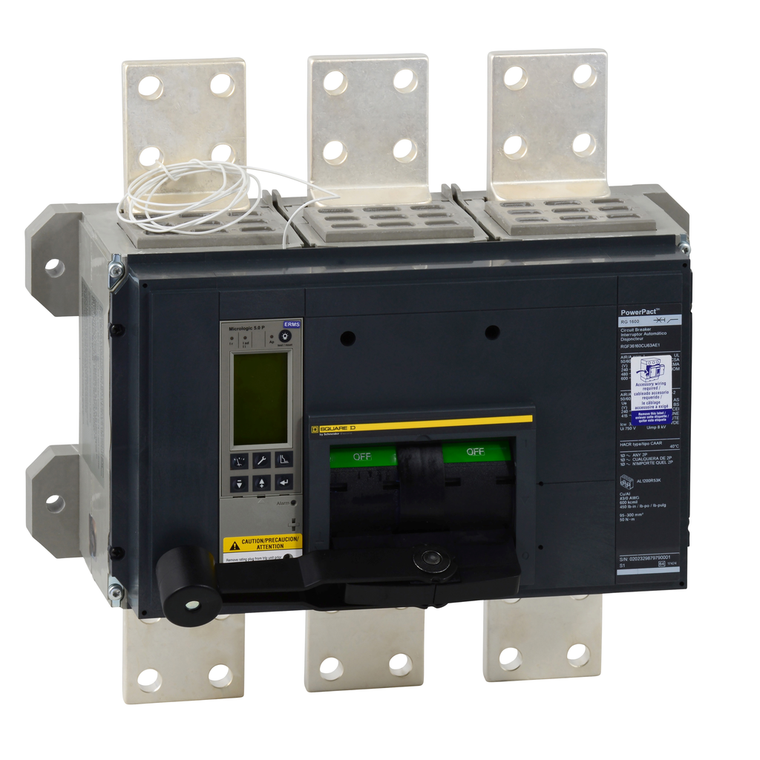

Schneider Electric RJF36300CU63AE1 Molded Case Circuit Breaker 600V 3000A

Schneider Electric RJF36300CU63AE1 Molded Case Circuit Breaker 600V 3000A

Schneider Electric
SKU:
RJF36300CU63AE1
|
UPC:
3.60649E+12
$72,161.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Power Trip with a 5.0P trip unit and an LSI function with Modbus communication. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 3000A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. The circuit breaker has a continuous current rating of 100%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Rohs Exemption Information:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Tightening Torque:
68-68 N.m 50-400 mm² (AWG 1/0...750 kcmil) || 68-68 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Support:
busbar
Poles Description:
3P
Trip Unit Technology:
electronic, power, MicroLogic 5.0 P, LSI
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Mercury Free:
Yes
Depth:
14.49 in
Product Certifications:
UL || CSA || NOM
Utilisation Category:
category A
Continuous Current Rating:
1
Quantity Per Set:
1
Line Rated Current:
3000-3000 A
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive:
Compliant with Exemptions
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Circuit Breaker Application:
HACR rated
Pollution Degree:
3 IEC 60947-1
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Net Weight:
52 lb(US)
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Width:
16.53 in
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Product Or Component Type:
circuit breaker
Control Type:
operating handle
Ip Degree Of Protection:
IP40
Wire Stripping Length:
35 mm
Awg Gauge:
AWG 3/0...750 kcmil aluminium/copper
Height:
16.24 in
Quality Labels:
CE
Product Name:
PowerPact R
Circularity Profile:
ENVEOLI2206034EN
Pvc Free:
Yes
Mounting Mode:
unit mount busbar)
Warranty:
18 months
Halogen Content Performance:
Halogen free plastic parts product
Trip Unit Name:
MicroLogic 5.0 P
Range:
PowerPact
Environmental Disclosure:
ENVPEP2206034EN
Device Application:
distribution
Communication Interface:
Modbus
Breaking Capacity Code:
J
Suitability For Isolation:
yes IEC 60947-2
Ambient Air Temperature For Storage:
-50-85 °C
Network Frequency:
50/60 Hz
Ambient Air Temperature For Operation:
-25-70 °C
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Terminal Identifier:
AL2500RK
Sustainable Offer Status:
Green Premium product
Local Signalling:
alarm 1 LED yellow)long-time pick up) || 1 LED red)long-time pick up) || trip causes 1 LED red) || 1 LED red)digital ammeter) || phase-loading LED green)load balancing)
Electrical Connection:
busbar connection, line || busbar connection, load
