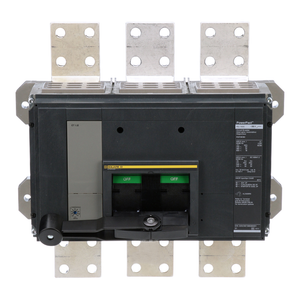

Schneider Electric RKF36160U64AE1 Molded Case Circuit Breaker 600V 1600A

Schneider Electric RKF36160U64AE1 Molded Case Circuit Breaker 600V 1600A

Schneider Electric
SKU:
RKF36160U64AE1
|
UPC:
3606486118559
$32,180.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Power Trip with a 6.0P trip unit and an LSIG function with Modbus communication. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 1600A, 3 pole, circuit breaker has an interrupting rating of 65kA at 600VAC. The circuit breaker has a continuous current rating of 80%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Ambient Air Temperature For Operation:
-25-70 °C
Range:
PowerPact
Ambient Air Temperature For Storage:
-50-85 °C
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Network Frequency:
50/60 Hz
Awg Gauge:
AWG 3/0...750 kcmil aluminium/copper
Quantity Per Set:
1
Quality Labels:
CE
Width:
16.53 in
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Poles Description:
3P
Trip Unit Technology:
electronic, power, MicroLogic 6.0 P, LSIG
Rohs Exemption Information:
Yes
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Environmental Disclosure:
ENVPEP1407013EN
Wire Stripping Length:
35 mm
Product Or Component Type:
circuit breaker
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Trip Unit Name:
MicroLogic 6.0 P
Terminal Identifier:
AL2500RK
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Continuous Current Rating:
0.8
Utilisation Category:
category A
Ip Degree Of Protection:
IP40
Product Name:
PowerPact R
Line Rated Current:
1600-1600 A
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 65 kA 600 V AC 50/60 Hz UL 489 || Icu 85 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 70 kA 380/415 V AC 50/60 Hz IEC 60947-2
Halogen Content Performance:
Halogen free plastic parts product
Eu Rohs Directive:
Compliant
Mounting Mode:
unit mount busbar)
Sustainable Offer Status:
Green Premium product
Communication Interface:
Modbus
Tightening Torque:
68-68 N.m 50-400 mm² (AWG 1/0...750 kcmil) || 68-68 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
Depth:
14.49 in
Circuit Breaker Application:
HACR rated
Mounting Support:
busbar
Breaking Capacity Code:
K
[Ics] Rated Service Breaking Capacity:
65 kA 240 V AC 50/60 Hz IEC 60947-2 || 55 kA 380/415 V AC 50/60 Hz IEC 60947-2
Suitability For Isolation:
yes IEC 60947-2
Mercury Free:
Yes
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Product Certifications:
UL || CSA || NOM
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Device Application:
distribution
Electrical Connection:
busbar connection, line || busbar connection, load
Local Signalling:
alarm 1 LED yellow)long-time pick up) || 1 LED red)long-time pick up) || trip causes 1 LED red) || 1 LED red)digital ammeter) || ground indicator 1 LED red) || phase-loading LED green)load balancing)
Net Weight:
52 lb(US)
Height:
16.24 in
Pollution Degree:
3 IEC 60947-1
Warranty:
18 months
Circularity Profile:
ENVEOLI1407013EN
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Control Type:
operating handle
Pvc Free:
Yes
