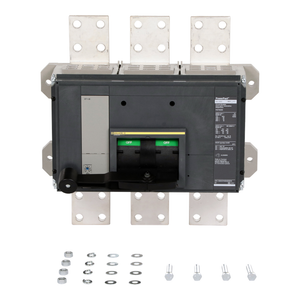

Schneider Electric RLF36200CU44A Molded Case Circuit Breaker 600V 2000A

Schneider Electric RLF36200CU44A Molded Case Circuit Breaker 600V 2000A

Schneider Electric
SKU:
RLF36200CU44A
|
UPC:
7.85901E+11
$43,154.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 2000A, 3 pole, circuit breaker has an interrupting rating of 50kA at 600VAC. The circuit breaker has a continuous current rating of 100%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Utilisation Category:
category A
Eu Rohs Directive:
Compliant with Exemptions
Mercury Free:
Yes
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Product Name:
PowerPact R
Electrical Connection:
busbar connection, line || busbar connection, load
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Width:
16.53 in
Mounting Mode:
unit mount busbar)
Rohs Exemption Information:
Yes
Poles Description:
3P
Warranty:
18 months
Depth:
14.49 in
Environmental Disclosure:
ENVPEP2206034EN
Ambient Air Temperature For Operation:
-25-70 °C
Product Certifications:
UL || CSA || NOM
Wire Stripping Length:
35 mm
[Ics] Rated Service Breaking Capacity:
65 kA 240 V AC 50/60 Hz IEC 60947-2 || 45 kA 380/415 V AC 50/60 Hz IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Pvc Free:
Yes
Circuit Breaker Application:
HACR rated
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Tightening Torque:
68-68 N.m 50-400 mm² (AWG 1/0...750 kcmil) || 68-68 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
Ip Degree Of Protection:
IP40
Awg Gauge:
AWG 3/0...750 kcmil aluminium/copper
Quantity Per Set:
1
Halogen Content Performance:
Halogen free plastic parts product
Suitability For Isolation:
yes IEC 60947-2
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Height:
16.24 in
Product Or Component Type:
circuit breaker
Ambient Air Temperature For Storage:
-50-85 °C
Device Application:
distribution
Control Type:
operating handle
Mounting Support:
busbar
Pollution Degree:
3 IEC 60947-1
Breaking Capacity:
AIR 125 kA 240 V AC 50/60 Hz UL 489 || AIR 100 kA 480 V AC 50/60 Hz UL 489 || AIR 50 kA 600 V AC 50/60 Hz UL 489 || Icu 125 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 85 kA 380/415 V AC 50/60 Hz IEC 60947-2
Circularity Profile:
ENVEOLI2206034EN
Network Frequency:
50/60 Hz
Net Weight:
52 lb(US)
Sustainable Offer Status:
Green Premium product
Terminal Identifier:
AL2500RK
Local Signalling:
alarm 1 LED yellow)long-time pick up) || 1 LED red)long-time pick up) || trip causes 1 LED red) || 1 LED red)digital ammeter) || ground indicator 1 LED red) || phase-loading LED green)load balancing)
Trip Unit Name:
MicroLogic 6.0 A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Trip Unit Technology:
electronic, ammeter, MicroLogic 6.0 A, LSIG
Range:
PowerPact
Quality Labels:
CE
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Continuous Current Rating:
1
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Breaking Capacity Code:
L
Line Rated Current:
2000-2000 A
