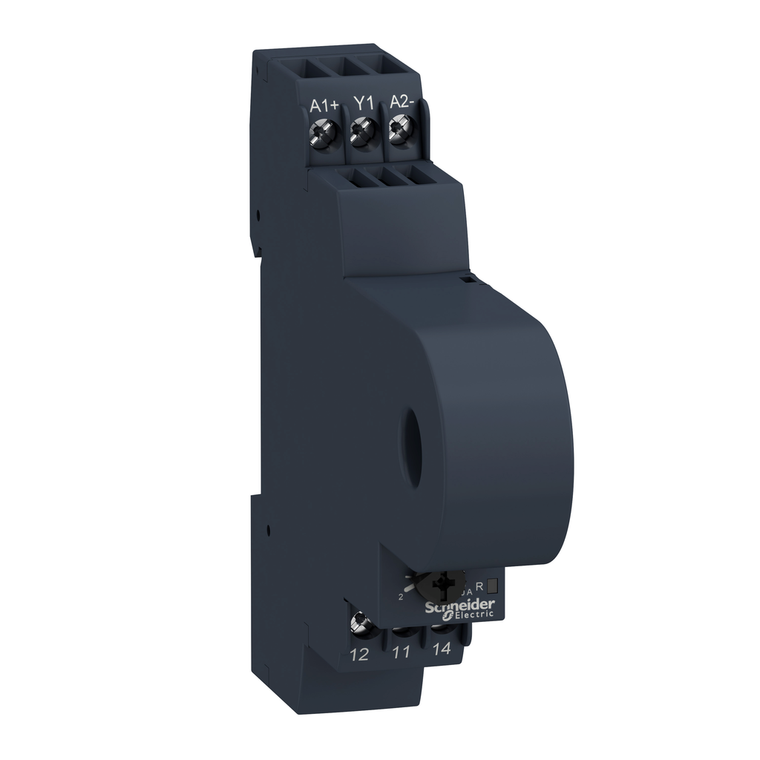

Schneider Electric RM17JC00MW Builtin Ct 2..20A Oc 24-240Vac/Dc 1C/O

Schneider Electric RM17JC00MW Builtin Ct 2..20A Oc 24-240Vac/Dc 1C/O

Schneider Electric
SKU:
RM17JC00MW
|
UPC:
3389119405034
$130.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Harmony RM17-J control relay allows monitoring of current control in 3-phase networks. This modular 3-phase control relay is ideal for monitoring of electrical values and current variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Additional Information
Input Current:
100000 mA permanent at 25 °C || 300000 mA non repetitive < 3 s at 25 °C
Response Time:
< 200 ms (in the event of a fault)
Hysteresis:
15-15 % fixed threshold setting
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Maximum Measuring Cycle:
30 ms measurement cycle as true rms value
Maximum Switching Voltage:
250 V AC/DC
Warranty:
18 months
Local Signalling:
for power ON LED (green) || for relay ON LED (yellow)
Electrical Durability:
100000 cycles
Vibration Resistance:
0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Threshold Setting:
10...100 %
Output Contacts:
1 C/O
Overvoltage Category:
III IEC 60664-1
Operating Position:
any position without derating
Non-Dissipating Shock Wave:
4 kV
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Minimum Switching Current:
10 mA 5 V DC
Mechanical Durability:
30000000 cycles
Immunity To Microbreaks:
10 ms
Switching Capacity In Va:
1250 VA
Control Circuit Voltage Limits:
15 % + 10 % Un
Marking:
CE : 73/23/EEC || CE : EMC 89/336/EEC
Measurement Range:
2...20 A AC
Supply Voltage Limits:
20.4-264 V AC/DC
[Us] Rated Supply Voltage:
AC/DC non self-powered
Insulation:
between supply and measurement
Connections - Terminals:
screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end ||
Ip Degree Of Protection:
IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
Rohs Exemption Information:
Yes
Contacts Material:
cadmium free
Contacts Type And Composition:
1 C/O
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Polarity:
yes DC
Maximum Power Consumption In Va:
3 VA
Measurement Error:
+/- 0.05 %/°C with temperature variation || < 1 % over the whole range with voltage variation
Run-Up Delay At Power-Up:
0.5 s
Pollution Degree:
3 IEC 60664-1
Shock Resistance:
15 gn 11 ms IEC 60255-21-1
Ambient Air Temperature For Storage:
-40-70 °C
Utilisation Category:
AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1
Maximum Power Consumption In W:
1 W
Standards:
IEC 60255-6
Dielectric Test Voltage:
2 kV AC 50 Hz
Time Delay Type:
without
Measurement Accuracy:
+/- 10 % of the full scale value
Ambient Air Temperature For Operation:
-20-50 °C
Relay Monitored Parameters:
overcurrent detection
Mercury Free:
Yes
Relay Type:
current control relay
Relay Name:
RM17JC
Mounting Support:
35 mm symmetrical DIN rail conforming to IEC 60715
Circularity Profile:
ENVEOLI1504008EN
Nominal Output Current:
0.208333333333333
[Ui] Rated Insulation Voltage:
400 V IEC 60664-1
Environmental Disclosure:
ENVPEP1504008EN
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Type:
without test button
Housing Material:
self-extinguishing plastic
Insulation Resistance:
> 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
Relative Humidity:
95-95 % 55-55 °C IEC 60068-2-30
Repeat Accuracy:
+/- 0.5 % input and measurement circuit
Operating Rate:
<= 360 operations/hour full load
China Rohs Regulation:
X
[Us] Rated Supply Voltage:
AC/DC
Range Of Product:
Harmony Control Relays
Sustainable Offer Status:
Green Premium product
Width:
17.5 mm
Tightening Torque:
0.6-1 N.m IEC 60947-1
Electromagnetic Compatibility:
emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || immunity for industrial environments conforming to NF EN/IEC 6
Control Circuit Frequency:
40...70 Hz sinusoidal
Product Or Component Type:
current control relay
Net Weight:
0.13 kg
Product Certifications:
GL || C-tick || GOST || UL || CSA
