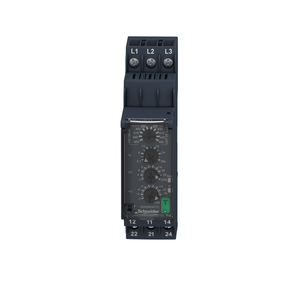

Schneider Electric RM22TR31 3 Phase Voltage Control Relay Rm22-Tr -

(No reviews yet) Write a Review

Write a Review

Schneider Electric RM22TR31 3 Phase Voltage Control Relay Rm22-Tr -

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RM22TR31

UPC:

3606480792182

MPN:

Condition:

New

Reset Time:

1500 ms at maximum voltage

Voltage Range:

200...240 V phase to phase

Environmental Disclosure:

ENVPEP1504008EN

Relay Type:

control relay

Ip Degree Of Protection:

IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)

Electromagnetic Compatibility:

immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 || immunity for industrial environments conforming to IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments

Dielectric Test Voltage:

2.5 kV AC 50 Hz, 1 min IEC 60255-27

Phase:

3 phase

Measurement Range:

200...240 V voltage AC

Electrical Durability:

100000 cycles

Net Weight:

0.09 kg

Sustainable Offer Status:

Green Premium product

Immunity To Microbreaks:

10 ms

Setting Accuracy Of Time Delay:

0.916666666666667

Voltage Detection Threshold:

< 100 V AC

Safety Reliability Data:

MTTFd = 388.1 years || B10d = 350000

Switching Capacity In Va:

2000 VA

Run-Up Delay At Power-Up:

650 ms

Mounting Position:

any position

Control Circuit Voltage Limits:

20 % + 20 % Un

Range Of Product:

Harmony Control Relays

Repeat Accuracy:

+/- 0.5 % input and measurement circuit || +/- 3 % time delay

Supply Frequency:

50...60 Hz +/- 10 %

Contacts Material:

cadmium free

Status Led:

LED (Yellow) relay ON || LED (Green) power ON

Maximum Switching Current:

8 A AC

China Rohs Regulation:

X

Rohs Exemption Information:

Yes

Threshold Adjustment Voltage:

2...20 % of Un selected

Minimum Switching Current:

10 mA 5 V DC

[Us] Rated Supply Voltage:

AC/DC

Time Delay Drift:

<= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range

Measurement Error:

< 1 % over the whole range with voltage variation || < 0.05 %/°C with temperature variation

Standards:

IEC 60255-1

Maximum Measuring Cycle:

150 ms measurement cycle as true rms value

Power Consumption In Va:

10-10 VA 240 V AC 60 Hz

Mounting Support:

35 mm DIN rail conforming to IEC 60715

Product Certifications:

CSA || CCC || EAC || RCM || CE || GL || UL

Control Type:

with test button

Maximum Switching Voltage:

250 V AC

Contacts Type And Composition:

2 C/O

Relay Name:

RM22TR

Relative Humidity:

93-97 % 25-55 °C IEC 60068-2-30

Circularity Profile:

ENVEOLI1504008EN

Overvoltage Category:

III IEC 60664-1 || III UL 508

Ambient Air Temperature For Operation:

-20-50 °C 60 Hz || -20-60 °C 50 Hz AC/DC

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage:

-40-70 °C

Product Or Component Type:

3-phase control relay

Width:

22.5 mm

Utilisation Category:

AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1

Response Time:

<= 300 ms

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Vibration Resistance:

0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6

Supply Voltage Limits:

160-288 V AC

Output Contacts:

2 C/O

Tightening Torque:

0.6-1 N.m IEC 60947-1

Setting Accuracy Of The Switching Threshold:

+/- 10 % of the full scale

Mercury Free:

Yes

Shock Resistance:

15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27

Mechanical Durability:

10000000 cycles

Connections - Terminals:

screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end |

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Pollution Degree:

3 IEC 60664-1 || 3 UL 508

[Us] Rated Supply Voltage:

self-powered

Hysteresis:

2-2 % fixed selectable

Switching Threshold Drift:

<= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range

Housing Material:

self-extinguishing plastic

Time Delay Type:

adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault

Insulation Resistance:

> 100 MOhm 500 V DC IEC 60255-27

Relay Monitored Parameters:

phase sequence || phase failure detection || overvoltage and undervoltage detection
