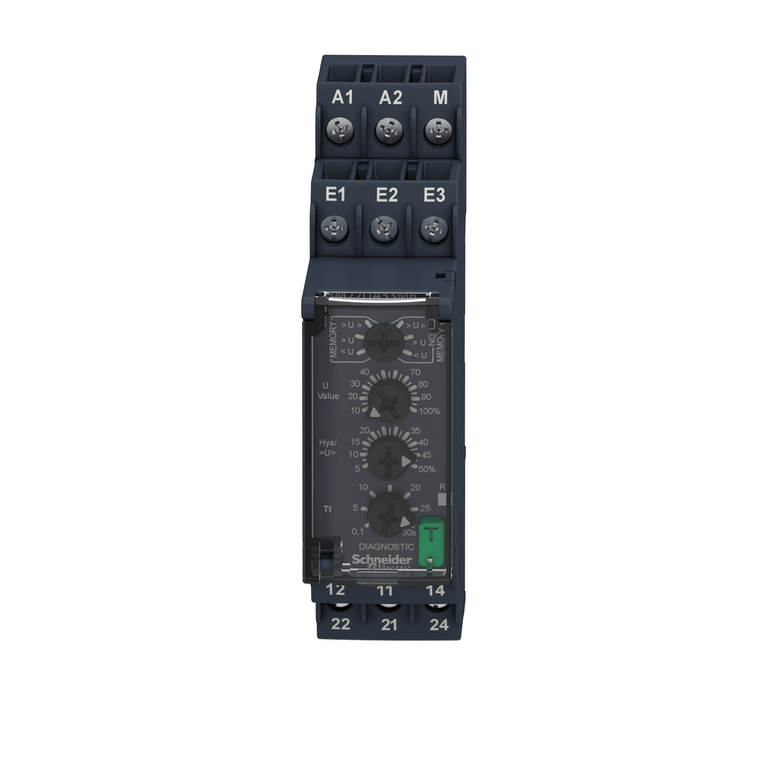

Schneider Electric RM22UA33MR Overvoltage Control Relay Rm22-Ua - Rang
Schneider Electric
$126.39
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RM22-UA relay allows monitoring of voltage control in single phase networks. This modular multi function single phase voltage control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
- Power Consumption In Va:
- 3.5-3.5 VA AC
- Supply Circuit Type:
- DC
- Nominal Output Current:
- 0.333333333333333
- [Us] Rated Supply Voltage:
- AC/DC non self-powered
- Dielectric Test Voltage:
- 2.5 kV AC 50 Hz, 1 min IEC 60255-27
- Vibration Resistance:
- 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
- Connections - Terminals:
- screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end |
- Safety Reliability Data:
- MTTFd = 308.2 years || B10d = 290000
- Response Time:
- <= 500 ms
- Electromagnetic Compatibility:
- immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 || immunity for industrial environments conforming to IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments
- Utilisation Category:
- AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
- Electrical Durability:
- 100000 cycles
- Insulation:
- between supply and measurement
- Phase:
- 1 phase
- Environmental Disclosure:
- ENVPEP1504008EN
- Maximum Switching Current:
- 8 A AC
- Insulation Resistance:
- > 100 MOhm 500 V DC
- Ip Degree Of Protection:
- IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
- Net Weight:
- 0.11 kg
- Functionality:
- undervoltage and overvoltage in window mode
- Shock Resistance:
- 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Maximum Measuring Cycle:
- 100 ms measurement cycle as true rms value
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -20-50 °C 60 Hz || -20-60 °C 50 Hz
- Product Certifications:
- RCM || UL || EAC || CSA || CE || GL || CCC
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Or Component Type:
- voltage control relay
- Maximum Switching Voltage:
- 250 V AC
- Range Of Product:
- Harmony Control Relays
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- X
- Compatibility Code:
- RM22
- Resistance Across Terminals:
- 150 kOhm E2-M terminals || 300 kOhm E1-M terminals || 500 kOhm E3-M terminals
- Measurement Range:
- 15...500 V voltage AC/DC 50/60 Hz
- Measurement Error:
- < 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation
- Pollution Degree:
- 3 IEC 60664-1
- Relative Humidity:
- 93-97 % 25-55 °C IEC 60068-2-30
- Reset Time:
- 1500 ms at maximum voltage
- Control Type:
- with test button
- Tightening Torque:
- 0.6-1 N.m IEC 60947-1
- Relay Monitored Parameters:
- undervoltage and overvoltage in window mode || overvoltage or undervoltage detection
- Width:
- 22.5 mm
- Mechanical Durability:
- 10000000 cycles
- Immunity To Microbreaks:
- 10 ms
- Circularity Profile:
- ENVEOLI1504008EN
- Overvoltage Category:
- III IEC 60664-1
- Standards:
- IEC 60255-1
- Mercury Free:
- Yes
- Housing Material:
- self-extinguishing plastic
- Maximum Power Consumption In W:
- 1.5 W DC
- Ambient Air Temperature For Storage:
- -40-70 °C
- Run-Up Delay At Power-Up:
- 600 ms
- Contacts Type And Composition:
- 2 C/O
- Relay Name:
- RM22UA
- Supply Voltage Limits:
- 20.4-264 V AC/DC
- Mounting Support:
- 35 mm DIN rail conforming to IEC 60715
- Time Delay Type:
- adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
- Repeat Accuracy:
- +/- 0.5 % input and measurement circuit || +/- 2 % time delay
- Minimum Switching Current:
- 10 mA 5 V DC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Hysteresis:
- 3-3 % fixed full scale for window mode || 5-50 % adjustable threshold setting
- Switching Capacity In Va:
- 2000 VA
- Contacts Material:
- cadmium free
- Relay Type:
- voltage control relay
- Output Contacts:
- 2 C/O
