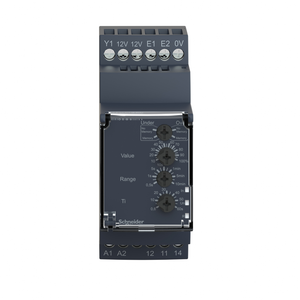

Schneider Electric RM35JA32MW Oc Or Uc Relay 150Ma-15A 24-240Vac/Dc

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric RM35JA32MW Oc Or Uc Relay 150Ma-15A 24-240Vac/Dc

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RM35JA32MW

UPC:

3389119405225

MPN:

Condition:

New

Mechanical Durability:

30000000 cycles

Output Contacts:

2 C/O

Rohs Exemption Information:

Yes

Reset Time:

1500 ms time delay

Control Type:

without test button

Operating Rate:

<= 360 operations/hour full load

Relay Name:

RM35JA

Circularity Profile:

ENVEOLI1504008EN

Contacts Type And Composition:

2 C/O

[Us] Rated Supply Voltage:

AC/DC non self-powered

Product Certifications:

GL || UL || GOST || C-tick || CSA

Pollution Degree:

3 IEC 60664-1

Supply Voltage Limits:

20.4-264 V AC/DC

Warranty:

18 months

Sustainable Offer Status:

Green Premium product

Repeat Accuracy:

+/- 0.5 % input and measurement circuit || +/- 2 % time delay

Electrical Durability:

100000 cycles

Overvoltage Category:

III IEC 60664-1

Range Of Product:

Harmony Control Relays

Maximum Power Consumption In W:

0.6 W DC

Vibration Resistance:

0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mercury Free:

Yes

Measurement Range:

0.15...1.5 A AC/DC E1-M terminals || 0.5...5 A E2-M terminals || 1.5...15 A E3-M terminals || 150 mA...15 A current

Measurement Accuracy:

+/- 10 % of the full scale value

Insulation Resistance:

> 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay ou

Immunity To Microbreaks:

50 ms

China Rohs Regulation:

X

Electromagnetic Compatibility:

emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || immunity for industrial environments conforming to NF EN/IEC 6

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Safety Reliability Data:

MTTFd = 296.8 years || B10d = 270000

Switching Capacity In Va:

1250 VA

Operating Position:

any position without derating

Relative Humidity:

95-95 % 55-55 °C IEC 60068-2-30

Time Delay Type:

adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault || adjustable 1...20 s, 0 + 10 % Ti- inhibition time delay upon startup

Product Or Component Type:

current control relay

Connections - Terminals:

screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end ||

Standards:

IEC 60255-6

Polarity:

no DC

Utilisation Category:

AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1

Mounting Support:

35 mm symmetrical DIN rail conforming to IEC 60715

Threshold Setting:

10...100 %

Contacts Material:

cadmium free

Control Circuit Frequency:

40...70 Hz +/- 10 %

Control Circuit Voltage Limits:

15 % + 10 % Un

Shock Resistance:

15 gn 11 ms IEC 60255-21-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Hysteresis:

5-50 % threshold setting

Relay Monitored Parameters:

overcurrent or undercurrent detection

Non-Dissipating Shock Wave:

4 kV IEC 60255-5 || 4 kV IEC 60664-1 || 4 kV IEC 61000-4-5

Ambient Air Temperature For Storage:

-40-70 °C

Run-Up Delay At Power-Up:

0.3 s

Measurement Error:

0.05 %/°C with temperature variation || 1 by volt over the whole range with voltage variation

Net Weight:

0.13 kg

Maximum Switching Current:

5 A AC/DC

Maximum Measuring Cycle:

30 ms measurement cycle as true rms value

Dielectric Test Voltage:

2 kV AC 50 Hz, 1 min IEC 60255-5 || 2 kV AC 50 Hz, 1 min IEC 60664-1

Marking:

CE : EMC 89/336/EEC || CE : 73/23/EEC

Environmental Disclosure:

ENVPEP1504008EN

Maximum Switching Voltage:

250 V AC/DC

Ip Degree Of Protection:

IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)

Minimum Switching Current:

10 mA 5 V DC

Local Signalling:

for power ON LED (green) || for relay ON LED (yellow)

Nominal Output Current:

0.208333333333333

Maximum Power Consumption In Va:

3.5 VA AC

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Resistance Across Terminals:

0.005 Ohm E3-M terminals || 0.015 Ohm E2-M terminals || 0.05 Ohm E1-M terminals

Ambient Air Temperature For Operation:

-20-50 °C

Relay Type:

current control relay

Housing Material:

self-extinguishing plastic

Tightening Torque:

0.6-1 N.m IEC 60947-1

Width:

35 mm

[Ui] Rated Insulation Voltage:

250 V IEC 60664-1

Catalog:

View

Datasheet:

View
