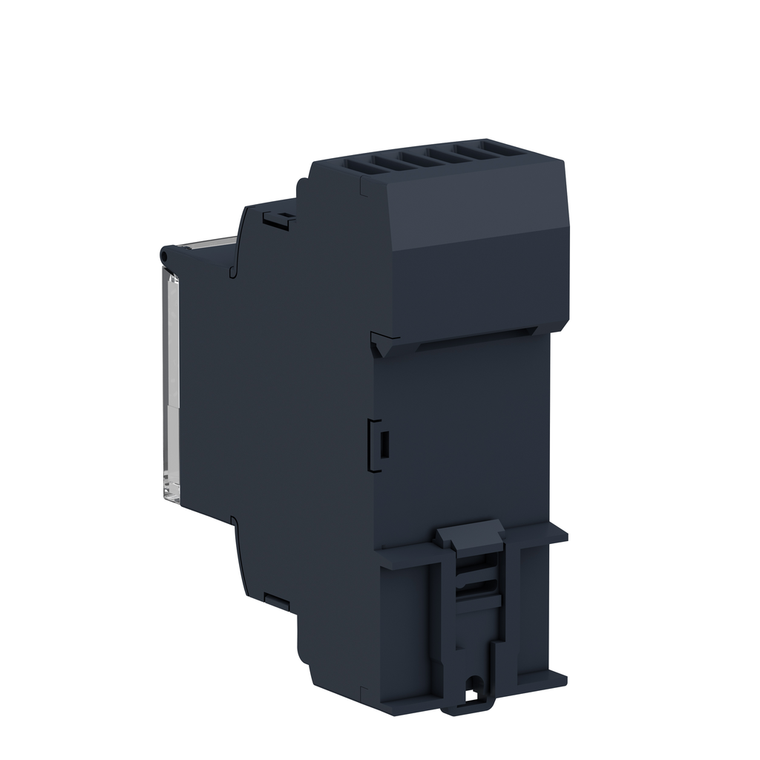

Schneider Electric RM35LV14MW Multifunc Lev Contrl Discrt 24-240Vac/Dc
Schneider Electric
$146.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric RM35LV14MW Multifunc Lev Contrl Discrt 24-240Vac/Dc
This Harmony RM35-LV relay allows monitoring of level control in 3-phase networks." "This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels." "It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water." "It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device." "It also offers a sealable cover, simple and precise settings with screw trimmers." "It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting." "multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0
- Mechanical Durability:
- 30000000 cycles
- Product Or Component Type:
- level control relay
- Operating Rate:
- <= 360 operations/hour full load
- Repeat Accuracy:
- +/- 2 % time delay
- Local Signalling:
- for relay ON LED (yellow) || for power ON LED (green) || for timer ON LED (yellow)
- Mounting Support:
- 35 mm symmetrical DIN rail conforming to IEC 60715
- [Us] Rated Supply Voltage:
- AC/DC non self-powered
- Width:
- 35 mm
- Product Certifications:
- GOST || CSA || UL || GL || C-tick
- Switching Capacity In Va:
- 1250 VA
- Maximum Supply Current For Sensors:
- 40 mA
- Time Delay Type:
- adjustable 0.1...5 s, +/- 10 % Tt- time delay upon fault
- Overvoltage Category:
- III IEC 60664-1
- Dielectric Test Voltage:
- 2 kV AC 50 Hz, 1 min IEC 60255-5 || 2 kV AC 50 Hz, 1 min IEC 60664-1
- Relay Monitored Parameters:
- detection by discrete sensors
- Relative Humidity:
- 95-95 % 55-55 °C IEC 60068-2-30
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Maximum Switching Voltage:
- 250 V AC/DC
- Standards:
- IEC 60255-6
- Range Of Product:
- Harmony Control Relays
- Measurement Accuracy:
- +/- 10 % of the full scale value || +/- 20 % for the HS range
- Electrical Durability:
- 100000 cycles
- Control Circuit Voltage Limits:
- 15 % + 10 % Un
- Maximum Power Consumption In Va:
- 5 VA AC
- Reset Time:
- 1000 ms || 4000 ms
- Nominal Output Current:
- 0.208333333333333
- Ip Degree Of Protection:
- IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
- Operating Position:
- any position without derating
- Sensitivity Adjustment:
- 5-100 %
- Circularity Profile:
- ENVEOLI1504008EN
- Electromagnetic Compatibility:
- emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || immunity for industrial environments conforming to NF EN/IEC 6
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Pollution Degree:
- 3 IEC 60664-1
- Relay Name:
- RM35L
- China Rohs Regulation:
- X
- Environmental Disclosure:
- ENVPEP1504008EN
- Safety Reliability Data:
- B10d = 170000 || MTTFd = 182.6 years
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Output Contacts:
- 1 C/O
- Contacts Type And Composition:
- 2 C/O
- Marking:
- CE : EMC 89/336/EEC || CE : 73/23/EEC
- Warranty:
- 18 months
- Utilisation Category:
- AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
- Insulation Resistance:
- > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay ou
- Immunity To Microbreaks:
- 100 ms DC || 90 ms AC
- Measurement Error:
- 0.5 %/°C with temperature variation
- Run-Up Delay At Power-Up:
- 0.5 s
- Housing Material:
- self-extinguishing plastic
- Ambient Air Temperature For Operation:
- -20-50 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cable Capacitance:
- 10 nF probe cable
- Supply Voltage Limits:
- 20.4-264 V AC/DC
- Maximum Power Consumption In W:
- 1.5 W DC
- Minimum Switching Current:
- 10 mA 5 V DC
- [Ui] Rated Insulation Voltage:
- 250 V IEC 60664-1
- Tightening Torque:
- 0.6-1 N.m IEC 60947-1
- Connections - Terminals:
- screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end ||
- Sustainable Offer Status:
- Green Premium product
- Maximum Switching Current:
- 5 A AC/DC
- Relay Type:
- level control relay
- Ambient Air Temperature For Storage:
- -40-70 °C
