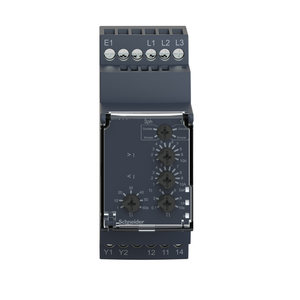

Schneider Electric RM35TF30 Mltifunc Ph Cntrl 220 480Va Phfail Rot

Schneider Electric RM35TF30 Mltifunc Ph Cntrl 220 480Va Phfail Rot

Schneider Electric
SKU:
RM35TF30
|
UPC:
3389119405263
$273.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Zelio Control Monitoring and Control Relays (RM17, RM22, RM35) monitor and detect abnormal operating conditions concerning phase ,current, voltage, frequency, speed, or temperature. The relays inform users of abnormal conditions and allow them to initiate the necessary corrective actions before serious and costly breakdown can occur. Zelio phase control relays detect all possible faults occurring in the phases. Zelio voltage and current control relays ensure your equipment is powered with proper values. Zelio frequency control relay monitors frequency variation from your power generation line. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Zelio pump control relay controls and protects your pump from dry running or overloading. Zelio speed control relay picks up the improper rhythm of your process. Zelio temperature control relay for lift application is a dedicated to elevator temperature monitoring (EN81). Zelio temperature control relays are dedicated to temperature regulation (heating, cooling or heating/cooling of processes). These Zelio relays are available in 17.5 mm, 22.5 mm or 35 mm wide housings and are DIN rail mounted. Applications for these Zelio relays include hoisting, construction cranes, harbor cranes, packaging, construction elevators, passenger elevators, escalators, textile, water and waste water. 0 0 0 0 0 0 0
Additional Information
Time Delay Type:
adjustable 0.1...10 s, +/- 10 % of the full scale value
Mechanical Durability:
30000000 cycles
Tightening Torque:
0.6-1 N.m IEC 60947-1
Product Specific Application:
for 3-phase supply
Pollution Degree:
3 IEC 60664-1
Run-Up Delay At Power-Up:
650 ms
Contacts Type And Composition:
2 C/O
Adjustment Of Asymmetry Threshold:
5...15 % of Un selected
Utilisation Category:
AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
Mercury Free:
Yes
Operating Rate:
<= 360 operations/hour full load
Range Of Product:
Harmony Control Relays
Ambient Air Temperature For Operation:
-20-50 °C
Control Circuit Frequency:
50...60 Hz +/- 10 %
Voltage Detection Threshold:
< 194 V
Measurement Range:
220...480 V voltage AC
Power Consumption In Va:
0-22 VA 400 V AC 50 Hz
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Nominal Output Current:
0.208333333333333
Overvoltage Category:
III IEC 60664-1
Threshold Adjustment Voltage:
2...20 % of Un selected || -12...-2 % in the range 220 V AC || +2...+10 % in the range 480 V AC
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Control Circuit Voltage Limits:
12 % + 10 % Un
Measurement Error:
< 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation
Measurement Voltage Limits:
176-528 V AC
Non-Dissipating Shock Wave:
4 kV
Connections - Terminals:
screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end ||
Relay Monitored Parameters:
undervoltage and overvoltage in window mode || phase sequence || phase failure detection || asymmetry
Standards:
IEC 60255-1
Circularity Profile:
ENVEOLI1504008EN
Output Contacts:
2 C/O
Sustainable Offer Status:
Green Premium product
Local Signalling:
for power ON LED (green) || for relay ON LED (yellow) || for fault LED (yellow)
Product Certifications:
GL || UL || CSA || GOST || C-tick
Mounting Support:
35 mm symmetrical DIN rail conforming to IEC 60715
Maximum Measuring Cycle:
140 ms measurement cycle as true rms value
Maximum Switching Current:
5 A AC || 5 A DC
Insulation Resistance:
> 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
Dielectric Test Voltage:
2 kV AC 50 Hz, 1 min
Directives:
89/336/EEC - electromagnetic compatibility || 73/23/EEC - low voltage directive
Relay Name:
RM35TF
Relay Type:
multifunction control relay
Rohs Exemption Information:
Yes
China Rohs Regulation:
X
[Us] Rated Supply Voltage:
self-powered
Width:
35 mm
Reset Time:
1500 ms at 480 V
Hysteresis:
2-2 %
Net Weight:
0.13 kg
Supply Frequency:
50/60 Hz +/- 10 %
Environmental Disclosure:
ENVPEP1504008EN
Marking:
CE
Operating Position:
any position without derating
Response Time:
< 200 ms (in the event of a fault)
Electrical Durability:
100000 cycles
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Or Component Type:
3-phase control relay
Maximum Switching Voltage:
250 V AC || 250 V DC
Electromagnetic Compatibility:
emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || immunity for industrial environments conforming to IEC 61000-6
[Ui] Rated Insulation Voltage:
400 V IEC 60664-1
[Uc] Control Circuit Voltage:
220...480 V
Housing Material:
self-extinguishing plastic
Voltage Range:
220...480 V phase to phase
Shock Resistance:
15 gn 11 ms IEC 60255-21-1
Repeat Accuracy:
0.3 % time delay || 0.5 % input and measurement circuit
Switching Capacity In Va:
1250 VA
Warranty:
18 months
Relative Humidity:
95-95 % 55-55 °C IEC 60068-2-30
Ambient Air Temperature For Storage:
-40-70 °C
Minimum Switching Current:
10 mA 5 V DC
Control Type:
without test button
Ip Degree Of Protection:
IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
Safety Reliability Data:
MTTFd = 399.5 years || B10d = 360000
Supply Voltage Limits:
194-528 V AC, 3 phase
Vibration Resistance:
0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Catalog:
View
Datasheet:
View
