Schneider Electric

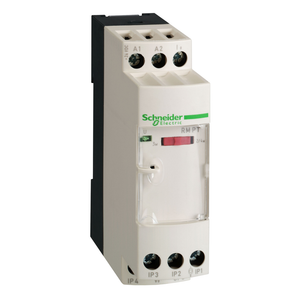

Schneider Electric RMPT73BD Harmony Analogue Pt100 0-500C

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric RMPT73BD Harmony Analogue Pt100 0-500C

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RMPT73BD

UPC:

3389110109016

MPN:

Condition:

New

Ip Degree Of Protection:

IP20 terminal block) || IP50 housing)

Disturbance Radiated/Conducted:

CISPR 11 || CISPR 22 group 1 - class B

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Certifications:

GL || UL || CSA

Ambient Air Temperature For Storage:

-40-85 °C

Analogue Output Current:

-30-0 mA no input or input wire broken || 22-30 mA no input or input wire broken

Standards:

DIN 43760 || EN/IEC 60584-1 || EN/IEC 60947-1 || EN/IEC 60751

Tightening Torque:

0.6-1.1 N.m

Analogue Output Voltage:

-15...-11 V no input or input wire broken || 11...15 V no input or input wire broken

Circularity Profile:

ENVEOLI1607005EN

Sustainable Offer Status:

Green Premium product

Clamping Connection Capacity:

2 x 1.5 mm² || 1 x 2.5 mm²

Surge Withstand:

0.5 kV 1.2/50 µs IEC 61000-4-5

Mercury Free:

Yes

Environmental Disclosure:

ENVPEP1607005EN

Protection Type:

overvoltage protection on output (+/- 30 V) || reverse polarity protection on power supply || short-circuit protection on output || reverse polarity protection on output

Safety Reliability Data:

MTTFd = 43.9 years || B10d = 40564

[Ui] Rated Insulation Voltage:

2000 V

Ambient Air Temperature For Operation:

0-50 °C mounting side by side || 0-60 °C 2 cm spacing

Temperature Coefficient:

150 ppm/°C

Fire Resistance:

850 °C IEC 60695-2-1 || 850 °C UL

Marking:

CE

Range Of Product:

Harmony Analog

China Rohs Regulation:

X

Product Or Component Type:

converter for Optimum Pt100 probes

Warranty:

18 months

Measurement Error:

+/- 0.5 % of full scale 3 or 4 wires)20 °C || +/- 1 % of full scale 2 wires)20 °C || +/- 10 % of full scale20 °C electromagnetic interference of 10 V/m)

Pollution Degree:

2 IEC 60664-1

Fixing Mode:

clip-on 35 mm symmetrical DIN rail) || fixed mounting plate)

Vibration Resistance:

5 gn 10-100 Hz)IEC 60068-2-6

Rohs Exemption Information:

Yes

Local Signalling:

for power ON LED (green)

Electromagnetic Compatibility:

electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shock Resistance:

50 gn 11 ms IEC 60068-2-27

Current Consumption:

<= 40 mA voltage output || <= 60 mA current output

Analogue Input Type:

temperature probe 0...500 °C/32...932 °F Pt 100 2, 3 or 4 wires

Analogue Output Type:

current 4...20 mA <= 500 Ohm || voltage 0...10 V >= 100 kOhm

Maximum Wiring Resistance:

0.2 Ohm 2 wires

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Resistance To Fast Transients:

1 kV IEC 61000-4-4 on input-output) || 2 kV IEC 61000-4-4 on power supply)

Repeat Accuracy:

+/- 0.2 % full scale 20 °C || +/- 0.6 % full scale 60 °C

Net Weight:

0.12 kg

[Us] Rated Supply Voltage:

24 V DC non isolated +/- 20 %

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
