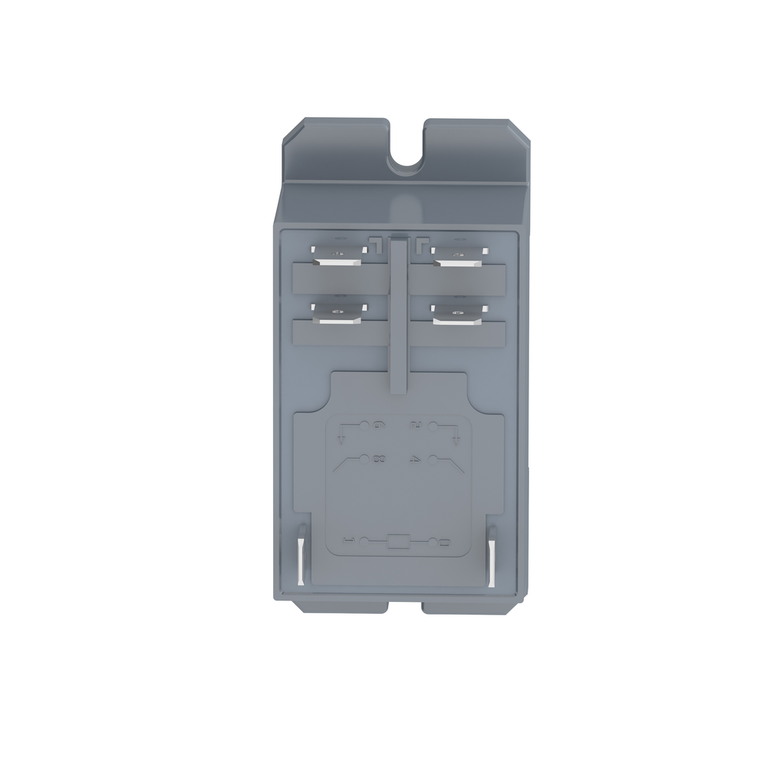

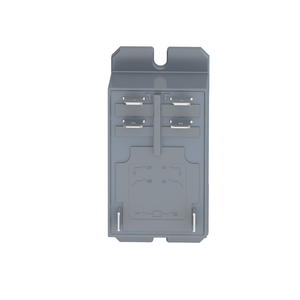

Schneider Electric RPF2AF7 30A Power Relay 2N/O 120Vac Pack of 10

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric RPF2AF7 30A Power Relay 2N/O 120Vac Pack of 10

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RPF2AF7

UPC:

3389119401548

MPN:

Condition:

New

Warranty:

18 months

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Load Current:

25 A 28 V DC || 30 A 250 V AC

[Ui] Rated Insulation Voltage:

250 V IEC || 300 V UL

Cad Overall Height:

68.5 mm

Ambient Air Temperature For Operation:

-40-55 °C

Utilisation Coefficient:

0.1

Net Weight:

0.082 kg

Pollution Degree:

3

Protection Category:

RT II

Reach Free Of Svhc:

Yes

Shape Of Pin:

flat

Device Short Name:

RPF

Ambient Air Temperature For Storage:

-40-85 °C

Product Or Component Type:

DIN rail/panel mount relay

Rohs Exemption Information:

Yes

Maximum Switching Capacity:

7500 VA/700 W

Electrical Durability:

100000 cycles resistive

Average Consumption:

4 VA 60 Hz

Operating Position:

any position

Series Name:

Power

Operating Rate:

<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load

Shock Resistance:

10 gnin operation || 30 gnnot operating

Control Circuit Voltage Limits:

96...132 V

Vibration Resistance:

3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 10 gn +/- 1 mm 10-150 Hz)5 cycles not operating

Mounting Support:

DIN rail || panel

Device Presentation:

complete product

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Operating Time:

25 ms

[Ithe] Conventional Enclosed Thermal Current:

25 A -40-55 °C relays side by side without a gap || 30 A -40-55 °C 13 mm gap between two relays

Cad Overall Width:

33.7 mm

[Uimp] Rated Impulse Withstand Voltage:

4 kV 1.2/50 µs

[Ie] Rated Operational Current:

30 A 277 V AC) NO UL || 20 A 28 V DC) NO UL || 30 A 250 V AC) NO IEC || 25 A 28 V DC) NO IEC

Contacts Material:

silver tin oxide

Product Certifications:

UL || CSA || GOST || CE

Control Type:

without lockable test button

Contacts Type And Composition:

2 NO

[Uc] Control Circuit Voltage:

120 V AC 50/60 Hz

Safety Reliability Data:

B10d = 100000

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Range Of Product:

Harmony Electromechanical Relays

Ip Degree Of Protection:

IP40 conforming to IEC 60529

Mechanical Durability:

5000000 cycles

Drop-Out Voltage Threshold:

>= 0.15 Uc

Environmental Disclosure:

ENVPEP130203EN

Dielectric Strength:

2000 V AC between poles with basic || 4000 V AC between coil and contact with reinforced || 1500 V AC between contacts with micro disconnection

Circularity Profile:

N/A

China Rohs Regulation:

X

Sustainable Offer Status:

Green Premium product

Test Levels:

level A group mounting

Cad Overall Depth:

39.2 mm

Average Resistance:

4250 Ohm at 20 °C +/- 15 %

Standards:

CSA C22.2 No 14 || UL 508 || IEC 61810-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reset Time:

25 ms

Maximum Switching Voltage:

250 V IEC

Minimum Switching Capacity:

6000 mW 500 mA / 12 V NO

Catalog:

View

Datasheet:

View
