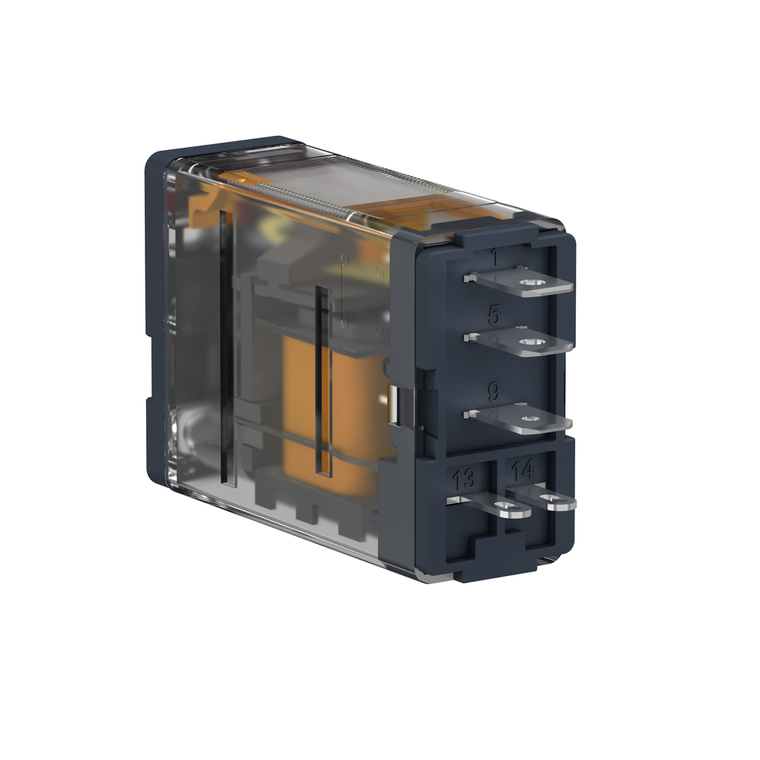

Schneider Electric RPM12JD 15A Power Relay Led 1C/O 12Vdc Pack of 10
Schneider Electric
$64.70
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric RPM12JD 15A Power Relay Led 1C/O 12Vdc Pack of 10
This Harmony RPM power plug-in relay has a coil control voltage of 12V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0 0 0
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Net Weight:
- 0.026 kg
- Safety Reliability Data:
- B10d = 100000
- Average Coil Consumption:
- 1.1 W
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Standards:
- CSA C22.2 No 14 || IEC 61810-1 || UL 508
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Protection Category:
- RT I
- Environmental Disclosure:
- ENVPEP1406038EN
- Operating Position:
- any position
- Maximum Switching Capacity:
- 3750 VA || 420 W
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Pollution Degree:
- 3
- Shock Resistance:
- 15 gnin operation || 30 gnnot operating
- Drop-Out Voltage Threshold:
- >= 0.1 Uc DC
- Average Resistance:
- 115 Ohm at 20 °C +/- 10 %
- Reset Time:
- 20 ms at nominal voltage
- Contacts Material:
- AgNi
- Test Levels:
- level A group mounting
- Rohs Exemption Information:
- Yes
- [Ie] Rated Operational Current:
- 15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
- Utilisation Coefficient:
- 0.2
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with reinforced
- Product Certifications:
- CSA || UL || EAC
- China Rohs Regulation:
- X
- Series Name:
- Power
- Shape Of Pin:
- flat
- Mechanical Durability:
- 10000000 cycles
- Device Short Name:
- RPM
- Reach Free Of Svhc:
- Yes
- [Uc] Control Circuit Voltage:
- 12 V DC
- Operating Rate:
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Status Led:
- with
- Electrical Durability:
- 100000 cycles resistive
- Warranty:
- 18 months
- Ambient Air Temperature For Operation:
- -40-55 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Contacts Type And Composition:
- 1 C/O
- Load Current:
- 15 A 250 V AC || 15 A 28 V DC
- [Ithe] Conventional Enclosed Thermal Current:
- 15 A -40-55 °C
- Device Presentation:
- complete product
- Maximum Switching Voltage:
- 250 V IEC
- Circularity Profile:
- N/A
- Rated Operational Voltage Limits:
- 9.6...13.2 V DC
- Operating Time:
- 20 ms at nominal voltage
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Range Of Product:
- Harmony Electromechanical Relays
- Sustainable Offer Status:
- Green Premium product
- Control Type:
- lockable test button
- Product Or Component Type:
- plug-in relay
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ambient Air Temperature For Storage:
- -40-85 °C
