Schneider Electric RPM12P7 15A Power Relay Led 1C/O 230Vac Pack of 10
Schneider Electric
$64.70
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

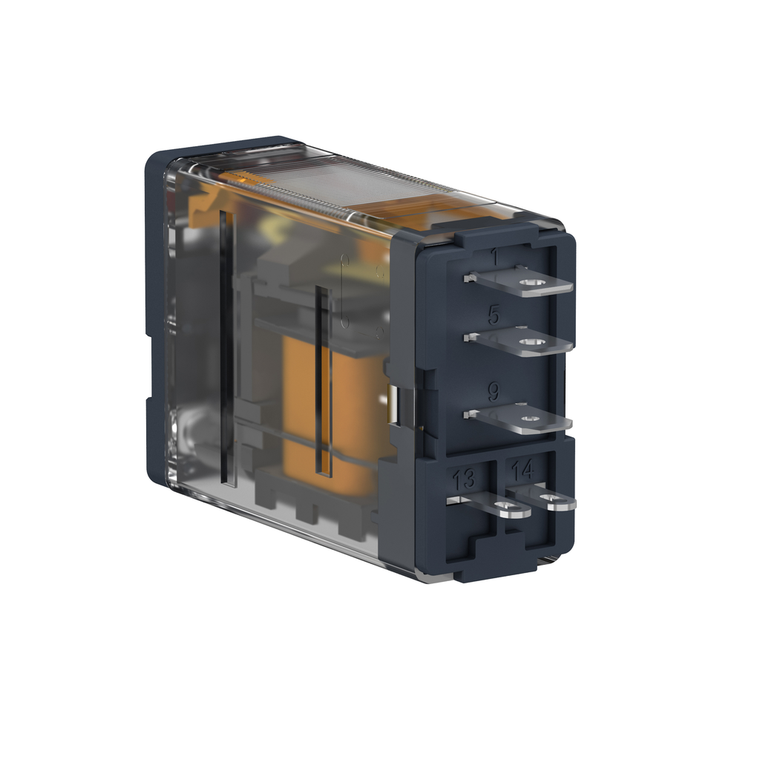

Schneider Electric RPM12P7 15A Power Relay Led 1C/O 230Vac Pack of 10
This Harmony RPM power plug-in relay has a coil control voltage of 230V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0 0 0
- Operating Time:
- 20 ms at nominal voltage
- Rohs Exemption Information:
- Yes
- Maximum Switching Capacity:
- 3750 VA || 420 W
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Ambient Air Temperature For Operation:
- -40-55 °C
- Load Current:
- 15 A 250 V AC || 15 A 28 V DC
- [Ithe] Conventional Enclosed Thermal Current:
- 15 A -40-55 °C
- Operating Position:
- any position
- Average Resistance:
- 16270 Ohm at 20 °C +/- 15 %
- [Uc] Control Circuit Voltage:
- 230 V AC 50/60 Hz
- Shape Of Pin:
- flat
- Warranty:
- 18 months
- Product Or Component Type:
- plug-in relay
- China Rohs Regulation:
- X
- Electrical Durability:
- 100000 cycles resistive
- Range Of Product:
- Harmony Electromechanical Relays
- Ambient Air Temperature For Storage:
- -40-85 °C
- Reach Free Of Svhc:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs
- Environmental Disclosure:
- ENVPEP1406038EN
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with reinforced
- Control Type:
- lockable test button
- Mechanical Durability:
- 10000000 cycles
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Presentation:
- complete product
- Test Levels:
- level A group mounting
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Circularity Profile:
- N/A
- Rated Operational Voltage Limits:
- 184...253 V AC
- Operating Rate:
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Standards:
- CSA C22.2 No 14 || UL 508 || IEC 61810-1
- Status Led:
- with
- Shock Resistance:
- 15 gnin operation || 30 gnnot operating
- [Ie] Rated Operational Current:
- 15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
- Series Name:
- Power
- Sustainable Offer Status:
- Green Premium product
- Maximum Switching Voltage:
- 250 V IEC
- Utilisation Coefficient:
- 0.2
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Pollution Degree:
- 3
- Product Certifications:
- CSA || EAC || UL
- Average Coil Consumption In Va:
- 1.6 60 Hz
- Contacts Material:
- AgNi
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Protection Category:
- RT I
- Contacts Type And Composition:
- 1 C/O
- Device Short Name:
- RPM
- Safety Reliability Data:
- B10d = 100000
- Drop-Out Voltage Threshold:
- >= 0.15 Uc AC
- Net Weight:
- 0.026 kg
- Reset Time:
- 20 ms at nominal voltage
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
