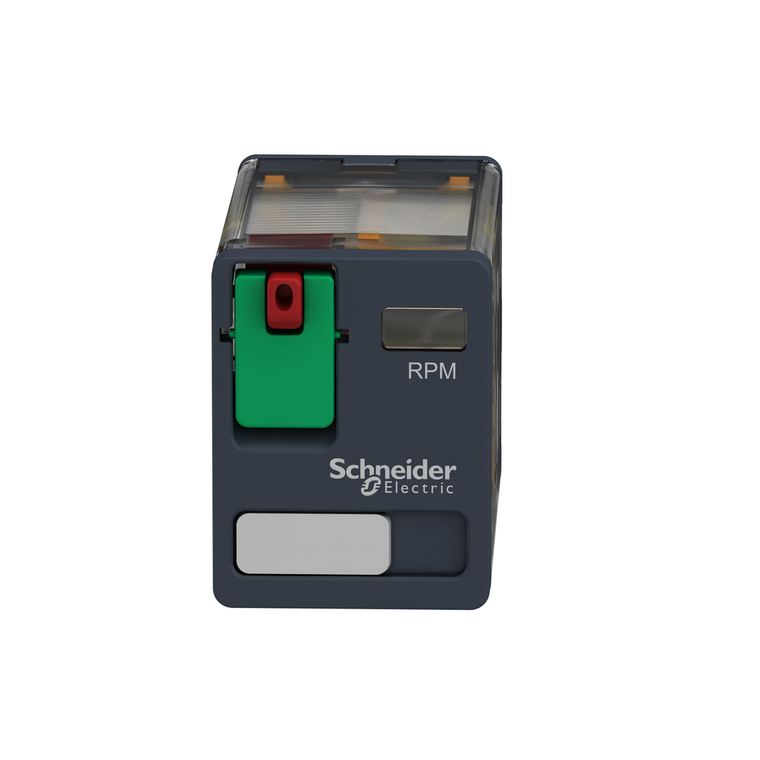

Schneider Electric RPM21B7 15A Power Relay 2C/O 24Vac Pack of 10
Schneider Electric
$73.20
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric RPM21B7 15A Power Relay 2C/O 24Vac Pack of 10
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

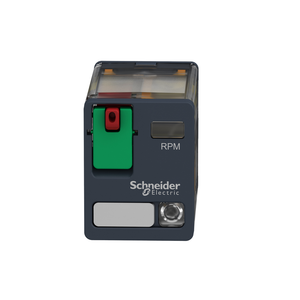

This Harmony RPM power plug-in relay has a coil control voltage of 24V AC and has 1 changeover contact DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0
- Rated Operational Voltage Limits:
- 19.2...26.4 V AC
- Test Levels:
- level A group mounting
- Protection Category:
- RT I
- Sustainable Offer Status:
- Green Premium product
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Environmental Disclosure:
- ENVPEP1406038EN
- Range Of Product:
- Harmony Electromechanical Relays
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- China Rohs Regulation:
- X
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs
- Mechanical Durability:
- 10000000 cycles
- Standards:
- CSA C22.2 No 14 || IEC 61810-1 || UL 508
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Electrical Durability:
- 100000 cycles resistive
- Operating Position:
- any position
- Reach Free Of Svhc:
- Yes
- Shock Resistance:
- 15 gnin operation || 30 gnnot operating
- Safety Reliability Data:
- B10d = 100000
- Warranty:
- 18 months
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Product Or Component Type:
- plug-in relay
- Shape Of Pin:
- flat
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Net Weight:
- 0.036 kg
- Contacts Material:
- AgNi
- Status Led:
- without
- Series Name:
- Power
- Device Presentation:
- complete product
- Circularity Profile:
- N/A
- Ambient Air Temperature For Storage:
- -40-85 °C
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Operating Rate:
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Control Type:
- lockable test button
- Maximum Switching Voltage:
- 250 V IEC
- [Ie] Rated Operational Current:
- 15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
- Operating Time:
- 20 ms at nominal voltage
- Load Current:
- 15 A 250 V AC || 15 A 28 V DC
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Average Coil Consumption In Va:
- 1.1 60 Hz
- Device Short Name:
- RPM
- Ambient Air Temperature For Operation:
- -40-55 °C
- Product Certifications:
- UL || CSA || EAC
- Average Resistance:
- 177 Ohm at 20 °C +/- 15 %
- Maximum Switching Capacity:
- 3750 VA || 420 W
- [Ithe] Conventional Enclosed Thermal Current:
- 15 A -40-55 °C
- Rohs Exemption Information:
- Yes
- Pollution Degree:
- 3
- Utilisation Coefficient:
- 0.2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Contacts Type And Composition:
- 2 C/O
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Drop-Out Voltage Threshold:
- >= 0.15 Uc AC
- Reset Time:
- 20 ms at nominal voltage
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
