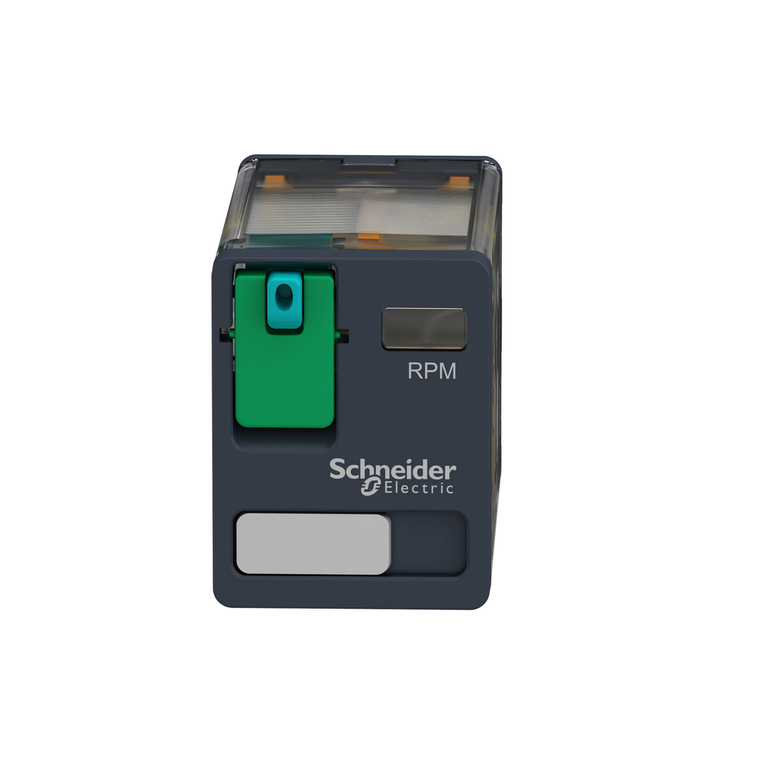

Schneider Electric RPM21BD 15A Power Relay 2C/O 24Vdc Pack of 10
This Harmony RPM power plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0
- Electrical Durability:
- 100000 cycles resistive
- Net Weight:
- 0.036 kg
- Contacts Type And Composition:
- 2 C/O
- Ambient Air Temperature For Operation:
- -40-55 °C
- Ambient Air Temperature For Storage:
- -40-85 °C
- Product Certifications:
- EAC || CSA || UL
- Device Short Name:
- RPM
- [Ithe] Conventional Enclosed Thermal Current:
- 15 A -40-55 °C
- Safety Reliability Data:
- B10d = 100000
- Average Coil Consumption:
- 0.85 W
- Reach Free Of Svhc:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Shock Resistance:
- 15 gnin operation || 30 gnnot operating
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Rated Operational Voltage Limits:
- 19.2...26.4 V DC
- Test Levels:
- level A group mounting
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- X
- Utilisation Coefficient:
- 0.2
- Contacts Material:
- AgNi
- Operating Position:
- any position
- Average Resistance:
- 640 Ohm at 20 °C +/- 10 %
- Control Type:
- lockable test button
- [Ie] Rated Operational Current:
- 15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
- Maximum Switching Voltage:
- 250 V IEC
- Reset Time:
- 20 ms at nominal voltage
- Shape Of Pin:
- flat
- Protection Category:
- RT I
- Series Name:
- Power
- Maximum Switching Capacity:
- 3750 VA || 420 W
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs
- [Uc] Control Circuit Voltage:
- 24 V DC
- Pollution Degree:
- 3
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Range Of Product:
- Harmony Electromechanical Relays
- Environmental Disclosure:
- ENVPEP1406038EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Standards:
- IEC 61810-1 || CSA C22.2 No 14 || UL 508
- Status Led:
- without
- Load Current:
- 15 A 250 V AC || 15 A 28 V DC
- Mechanical Durability:
- 10000000 cycles
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Drop-Out Voltage Threshold:
- >= 0.1 Uc DC
- Device Presentation:
- complete product
- Product Or Component Type:
- plug-in relay
- Operating Time:
- 20 ms at nominal voltage
- Circularity Profile:
- N/A
- Operating Rate:
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
