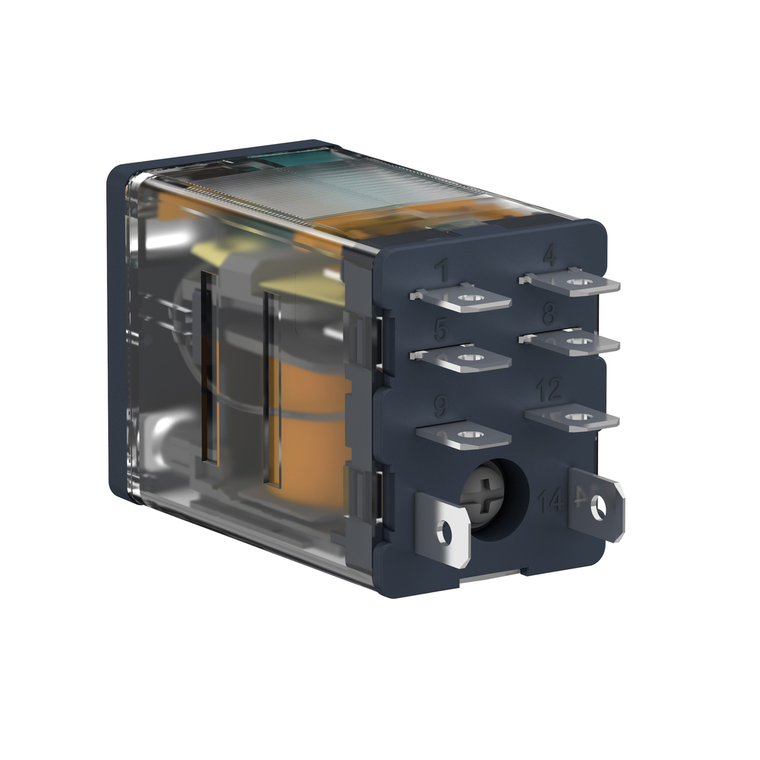

Schneider Electric RPM22JD 15A Power Relay Led 2C/O 12Vdc Pack of 10

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric RPM22JD 15A Power Relay Led 2C/O 12Vdc Pack of 10

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RPM22JD

UPC:

3389119401944

MPN:

Condition:

New

Device Presentation:

complete product

Pollution Degree:

3

Contacts Material:

AgNi

Status Led:

with

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Reach Free Of Svhc:

Yes

Range Of Product:

Harmony Electromechanical Relays

Rohs Exemption Information:

Yes

Control Type:

lockable test button

Ambient Air Temperature For Storage:

-40-85 °C

Ambient Air Temperature For Operation:

-40-55 °C

Load Current:

15 A 250 V AC || 15 A 28 V DC

Warranty:

18 months

Average Resistance:

160 Ohm at 20 °C +/- 10 %

Shock Resistance:

15 gnin operation || 30 gnnot operating

Operating Rate:

<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load

Dielectric Strength:

1500 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with reinforced || 2000 V AC between poles with basic

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Sustainable Offer Status:

Green Premium product

Maximum Switching Capacity:

3750 VA || 420 W

Rated Operational Voltage Limits:

9.6...13.2 V DC

Minimum Switching Capacity:

170 mW 10 mA, 17 V

[Ithe] Conventional Enclosed Thermal Current:

15 A -40-55 °C

[Ie] Rated Operational Current:

15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC

Mechanical Durability:

10000000 cycles

[Ui] Rated Insulation Voltage:

250 V IEC || 300 V CSA || 300 V UL

Contacts Type And Composition:

2 C/O

Series Name:

Power

Utilisation Coefficient:

0.2

China Rohs Regulation:

X

Shape Of Pin:

flat

Safety Reliability Data:

B10d = 100000

Test Levels:

level A group mounting

Operating Position:

any position

Net Weight:

0.036 kg

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

IP40 conforming to IEC 60529

Environmental Disclosure:

ENVPEP1406038EN

Reset Time:

20 ms at nominal voltage

Maximum Switching Voltage:

250 V IEC

Drop-Out Voltage Threshold:

>= 0.1 Uc DC

Standards:

CSA C22.2 No 14 || IEC 61810-1 || UL 508

Circularity Profile:

N/A

[Uc] Control Circuit Voltage:

12 V DC

Operating Time:

20 ms at nominal voltage

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Device Short Name:

RPM

[Uimp] Rated Impulse Withstand Voltage:

4 kV 1.2/50 µs

Protection Category:

RT I

Vibration Resistance:

3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating

Product Or Component Type:

plug-in relay

Electrical Durability:

100000 cycles resistive

Product Certifications:

CSA || UL || EAC

Average Coil Consumption:

0.85 W
