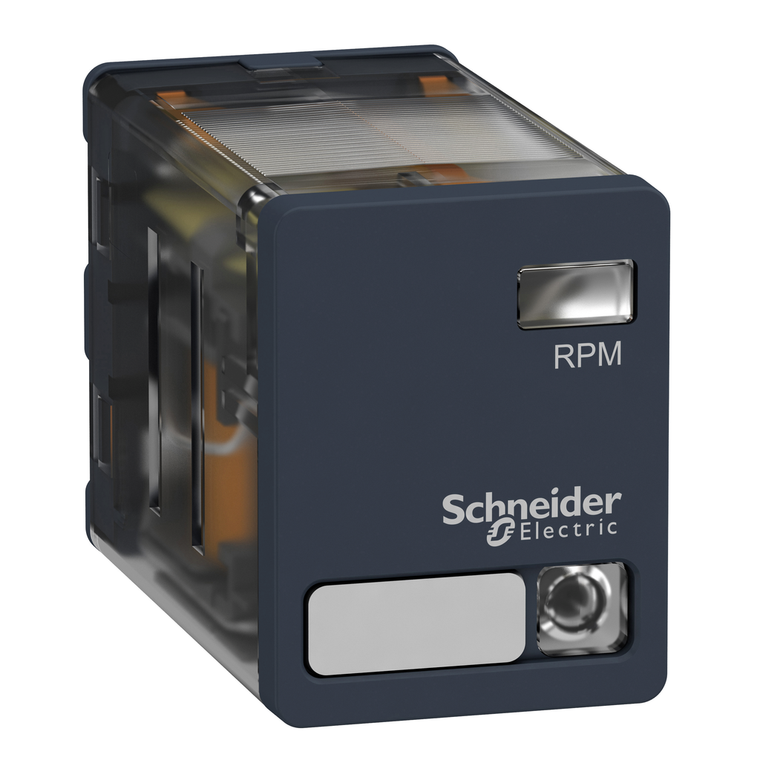

Schneider Electric RPM23F7 Power Relay 2 Co Without Button With Led Pack of 10
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Power Plug-In Relay reflects Schneider Electric expertise in relay since 1924 by helping to reduce the size of enclosures and at the same time increasing machine reliability. It has large choice of number of contacts for high rated current use Its rated current is 15 A, is controlled with a 120 V AC circuit and has a latching of 2 C/O. They are intendedfor industrial machines, packaging, textile, heating, ventilation and air conditioning system.
- Maximum Switching Capacity:
- 3750 VA || 420 W
- Operating Position:
- any position
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Warranty:
- 18 months
- Product Or Component Type:
- plug-in relay
- Device Short Name:
- RPM
- Test Levels:
- level A group mounting
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Average Resistance:
- 4430 Ohm at 20 °C +/- 15 %
- Average Coil Consumption In Va:
- 1.1 60 Hz
- Ip Degree Of Protection:
- IP40 conforming to EN/IEC 60529
- Drop-Out Voltage Threshold:
- >= 0.15 Uc AC
- Utilisation Coefficient:
- 0.2
- Series Name:
- Power
- Reset Time:
- 20 ms at nominal voltage
- Ambient Air Temperature For Operation:
- -40-55 °C
- [Uc] Control Circuit Voltage:
- 120 V AC 50/60 Hz
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Status Led:
- with
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs
- [Ie] Rated Operational Current:
- 15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
- Shock Resistance:
- 15 gnin operation || 30 gnnot operating
- Standards:
- CSA C22.2 No 14 || UL 508 || EN/IEC 61810-1
- Circularity Profile:
- N/A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Shape Of Pin:
- flat
- Safety Reliability Data:
- B10d = 100000
- Product Certifications:
- CSA || UL || EAC
- Maximum Switching Voltage:
- 250 V IEC
- Protection Category:
- RT I
- Reach Free Of Svhc:
- Yes
- Range Of Product:
- Harmony Electromechanical Relays
- Contacts Material:
- AgNi
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Ambient Air Temperature For Storage:
- -40-85 °C
- Operating Time:
- 20 ms at nominal voltage
- Load Current:
- 15 A 250 V AC || 15 A 28 V DC
- China Rohs Regulation:
- X
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Contacts Type And Composition:
- 2 C/O
- Mechanical Durability:
- 10000000 cycles
- Control Type:
- without lockable test button
- Operating Rate:
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Net Weight:
- 0.036 kg
- Pollution Degree:
- 3
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rated Operational Voltage Limits:
- 96...132 V AC
- Device Presentation:
- complete product
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- [Ithe] Conventional Enclosed Thermal Current:
- 15 A -40-55 °C
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP1406038EN
- Electrical Durability:
- 100000 cycles resistive
- Sustainable Offer Status:
- Green Premium product
