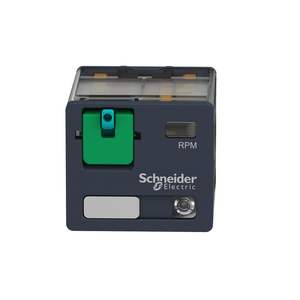

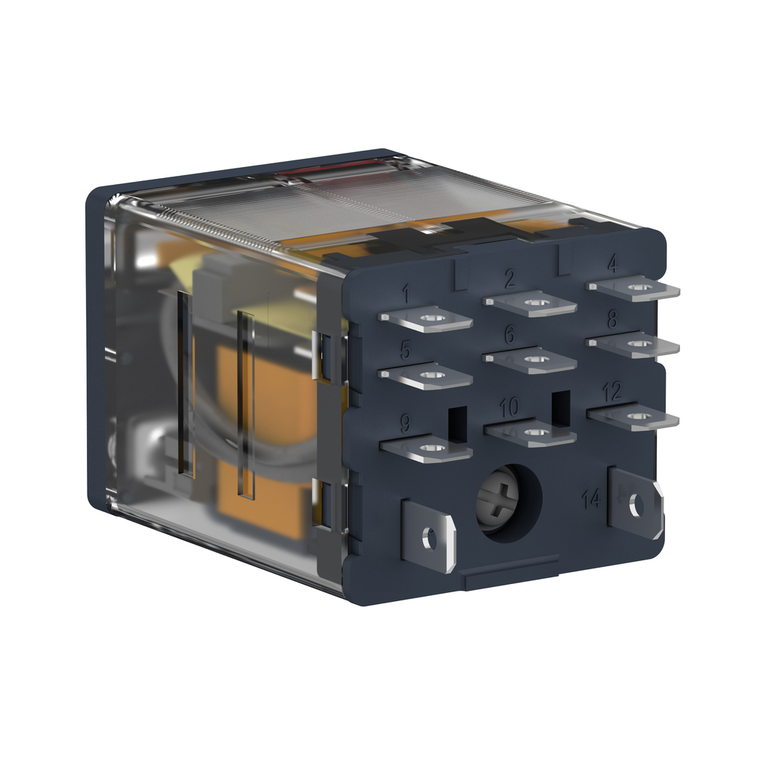

Schneider Electric RPM32B7 15A Power Relay Led 3C/O 24Vac Pack of 10
Schneider Electric
$109.80
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RPM power plug-in relay has a coil control voltage of 24V AC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0 0 0
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Maximum Switching Voltage:
- 250 V IEC
- Contacts Material:
- AgNi
- Contacts Type And Composition:
- 3 C/O
- Device Short Name:
- RPM
- Circularity Profile:
- N/A
- Rated Operational Voltage Limits:
- 19.2...26.4 V AC
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Electrical Durability:
- 100000 cycles resistive
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Mechanical Durability:
- 10000000 cycles
- Product Or Component Type:
- plug-in relay
- Status Led:
- with
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Maximum Switching Capacity:
- 3750 VA || 420 W
- Safety Reliability Data:
- B10d = 100000
- [Ithe] Conventional Enclosed Thermal Current:
- 15 A -40-55 °C
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Utilisation Coefficient:
- 0.2
- Protection Category:
- RT I
- Reach Free Of Svhc:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs
- [Ie] Rated Operational Current:
- 15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
- Test Levels:
- level A group mounting
- Operating Rate:
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Standards:
- CSA C22.2 No 14 || IEC 61810-1 || UL 508
- Environmental Disclosure:
- ENVPEP1406038EN
- Average Resistance:
- 110 Ohm at 20 °C +/- 15 %
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Series Name:
- Power
- Sustainable Offer Status:
- Green Premium product
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Range Of Product:
- Harmony Electromechanical Relays
- Device Presentation:
- complete product
- Reset Time:
- 20 ms at nominal voltage
- Average Coil Consumption In Va:
- 1.7 60 Hz
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Shock Resistance:
- 15 gnin operation || 30 gnnot operating
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Drop-Out Voltage Threshold:
- >= 0.15 Uc AC
- Ambient Air Temperature For Storage:
- -40-85 °C
- Shape Of Pin:
- flat
- Operating Time:
- 20 ms at nominal voltage
- China Rohs Regulation:
- X
- Ambient Air Temperature For Operation:
- -40-55 °C
- Control Type:
- lockable test button
- Load Current:
- 15 A 250 V AC || 15 A 28 V DC
- Pollution Degree:
- 3
- Net Weight:
- 0.054 kg
- Operating Position:
- any position
- Product Certifications:
- EAC || CSA || UL
