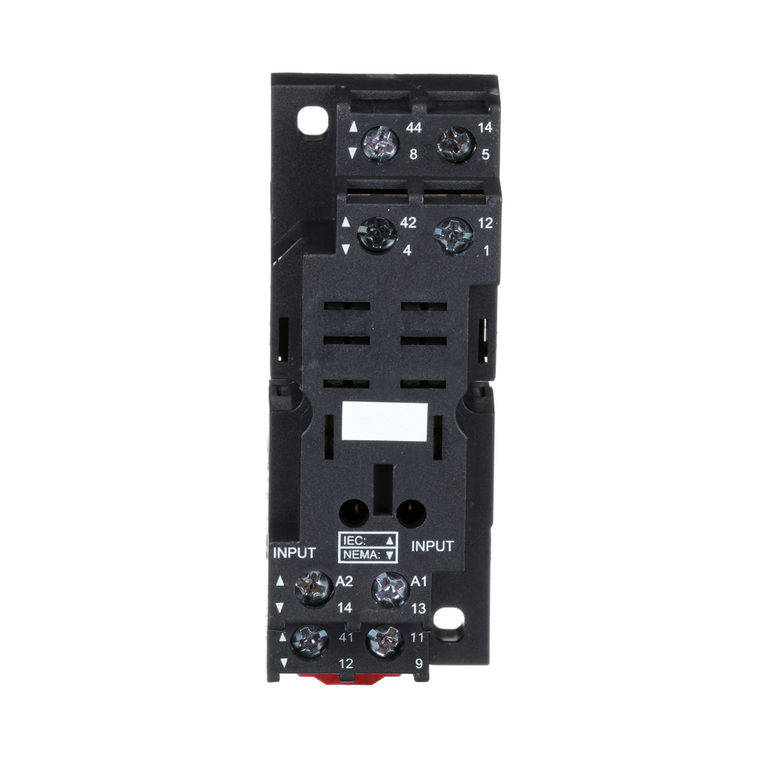

Schneider Electric RPZF2 Mixed Conn Socket For Rpm2 Pack of 10

(No reviews yet) Write a Review
SKU:
RPZF2
UPC:
3389119402293
Condition:
New
Dielectric Strength:
2500 V
Range Of Product:
Harmony Electromechanical Relays
Reach Free Of Svhc:
Yes
Sustainable Offer Status:
Green Premium product
Contacts Type And Composition:
2 C/O
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Circularity Profile:
N/A
Product Certifications:
UL || CSA
Tightening Torque:
< 1 N.m M3.5
Mercury Free:
Yes
[Uimp] Rated Impulse Withstand Voltage:
4 kV
Overvoltage Category:
III
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Width:
30 mm
Fixing Mode:
by screw panel) || clip-on 35 mm symmetrical DIN rail)
Sale Per Indivisible Quantity:
10
Pollution Degree:
3
China Rohs Regulation:
X
Ambient Air Temperature For Operation:
-40-55 °C
Product Or Component Type:
socket
Contact Terminal Arrangement:
mixed
Standards:
IEC 61984
Shape Of Pin:
flat
[Ith] Conventional Free Air Thermal Current:
16 A
Marking:
CE
Environmental Disclosure:
ENVPEP1511021EN
Rohs Exemption Information:
Yes
Connections - Terminals:
screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14 || - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16 || - screw clamp terminals, flexible with cable end 2 x 0.5...2 x 2.5
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage:
-40-85 °C
Net Weight:
0.054 kg
Warranty:
18 months
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Toxic Heavy Metal Free:
Yes
[Ue] Rated Operational Voltage:
< 250 V
Product Compatibility:
plug-in relay RPM 2 C/O
Ip Degree Of Protection:
IP20 conforming to IEC 60529
Device Short Name:
RPZ
Catalog:
View
Datasheet:
View
  • Schneider Electric RPZF2 Mixed Conn Socket For Rpm2 Pack of 10
  • Schneider Electric RPZF2 Mixed Conn Socket For Rpm2 Pack of 10
  • Schneider Electric RPZF2 Mixed Conn Socket For Rpm2 Pack of 10
$67.10

Description

Zelio Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Zelio plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Zelio plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Zelio plug in relays are UL Listed. "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0
