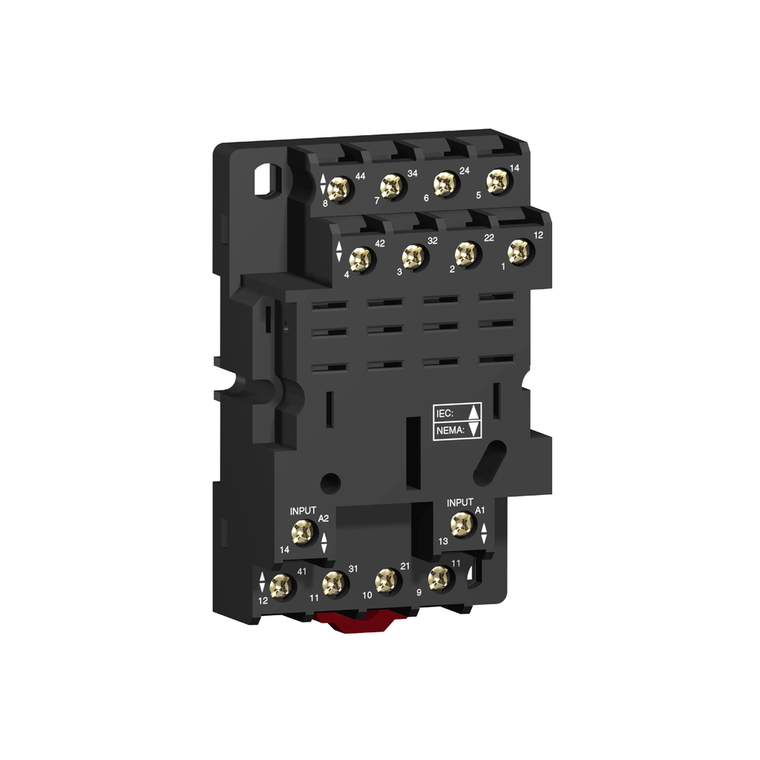

Schneider Electric RPZF4 Mixed Conn Socket For Rpm4 Pack of 10

Schneider Electric RPZF4 Mixed Conn Socket For Rpm4 Pack of 10

Schneider Electric
SKU:
RPZF4
|
UPC:
3.38912E+12
Availability:
Contact us to confirm availability and lead times.
$89.10
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony RPM plug-in socket has a rated voltage of 250V AC with an output rating of 16A." "This plug-in relay socket is compatible with interface plug-in relay RXM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0
Additional Information
Product Certifications:
UL || CSA
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Connections - Terminals:
screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14 || - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16 || - screw clamp terminals, flexible with cable end 2 x 0.5...2 x 2.5
[Uimp] Rated Impulse Withstand Voltage:
4 kV
Contacts Type And Composition:
4 C/O
Standards:
IEC 61984
Net Weight:
0.094 kg
Product Compatibility:
plug-in relay RPM 4 C/O
Environmental Disclosure:
ENVPEP1511021EN
Width:
50 mm
Pollution Degree:
3
Range Of Product:
Harmony Electromechanical Relays
Shape Of Pin:
flat
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Circularity Profile:
N/A
Ambient Air Temperature For Operation:
-40-55 °C
[Ith] Conventional Free Air Thermal Current:
16 A
Ip Degree Of Protection:
IP20 conforming to IEC 60529
Tightening Torque:
< 1 N.m M3.5
Marking:
CE
Overvoltage Category:
III
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Reach Free Of Svhc:
Yes
China Rohs Regulation:
X
Contact Terminal Arrangement:
mixed
Ambient Air Temperature For Storage:
-40-85 °C
Product Or Component Type:
socket
Sale Per Indivisible Quantity:
10
Dielectric Strength:
2500 V
Fixing Mode:
by screw panel) || clip-on 35 mm symmetrical DIN rail)
[Ue] Rated Operational Voltage:
< 250 V
Device Short Name:
RPZ
Toxic Heavy Metal Free:
Yes
Mercury Free:
Yes
Warranty:
18 months
Reach Regulation:
Free of Substances of Very High Concern above the threshold
