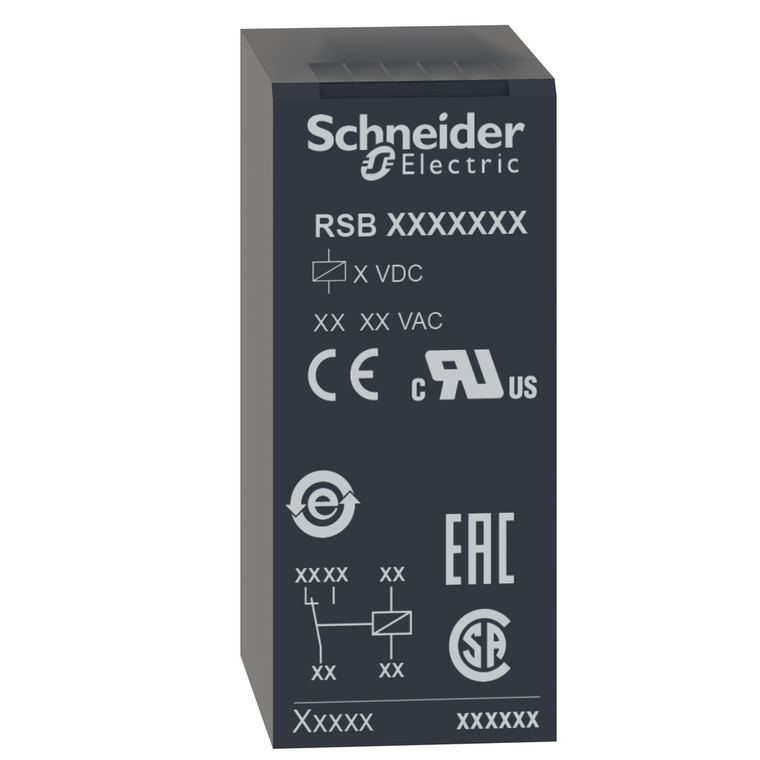

Schneider Electric RSB1A120P7 Pcb Relay 1C/O 12A 230Vac Pack of 10

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric RSB1A120P7 Pcb Relay 1C/O 12A 230Vac Pack of 10

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RSB1A120P7

UPC:

3389110257281

MPN:

Condition:

New

Average Coil Consumption:

0.75 VA AC

Maximum Switching Capacity:

3000 VA/336 W

[Ie] Rated Operational Current:

12 A AC-1/DC-1) NO IEC || 6 A AC-1/DC-1) NC IEC

Environmental Disclosure:

ENVPEP1406006EN

Circularity Profile:

N/A

Control Type:

without push-button

Load Current:

12 A 250 V AC || 12 A 28 V DC

Protection Category:

RT I

Series Name:

interface relay

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Device Short Name:

RSB

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Average Resistance:

33000 Ohm AC 20 °C +/- 10 %

Sale Per Indivisible Quantity:

10

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Vibration Resistance:

+/- 1 mm 10-55 Hz)IEC 60068-2-6

Contact Operation:

standard

China Rohs Regulation:

X

Minimum Switching Capacity:

120 mW 10 mA, 12 V

Net Weight:

0.014 kg

Warranty:

18 months

Marking:

CE

[Ithe] Conventional Enclosed Thermal Current:

12 A -40-40 °C

Mechanical Durability:

10000000 cycles

Rohs Exemption Information:

Yes

Shape Of Pin:

flat (PCB type)

Toxic Heavy Metal Free:

Yes

[Uc] Control Circuit Voltage:

230 V AC 50/60 Hz

Drop-Out Voltage Threshold:

>= 0.15 Uc AC

Standards:

CSA C22.2 No 14 || IEC 61810-1 || UL 508

Test Levels:

level A group mounting

Ambient Air Temperature For Storage:

-40-85 °C

Device Presentation:

complete product

Ip Degree Of Protection:

IP40 conforming to IEC 60529

Mercury Free:

Yes

Range Of Product:

Harmony Electromechanical Relays

Status Led:

without

Product Certifications:

EAC || UL || CSA

Shock Resistance:

10 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27

[Ui] Rated Insulation Voltage:

400 V IEC 60947

Switching Voltage:

12 V

[Ue] Rated Operational Voltage:

184...345 V AC 50/60 Hz

[Uimp] Rated Impulse Withstand Voltage:

3.6 kV IEC 61000-4-5

Operating Rate:

<= 600 cycles/hour under load || <= 18000 cycles/hour no-load

Product Or Component Type:

plug-in relay

Dielectric Strength:

1000 V AC between contacts || 2500 V AC between poles || 5000 V AC between coil and contact

Contacts Material:

silver alloy (AgNi)

Operating Position:

any position

Electrical Durability:

100000 cycles, 12 A at 250 V, AC-1 NO || 100000 cycles, 6 A at 250 V, AC-1 NC

Minimum Switching Current:

10 mA

Ambient Air Temperature For Operation:

-40-70 °C AC)

Operating Time:

20 ms operating || 20 ms reset

Maximum Switching Voltage:

300 V DC IEC

Safety Reliability Data:

B10d = 100000

Contacts Type And Composition:

1 C/O
