Schneider Electric RSB1A160B7 Pcb Relay 1C/O 16A 24Vac Pack of 10
Schneider Electric
$51.20
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric RSB1A160B7 Pcb Relay 1C/O 16A 24Vac Pack of 10

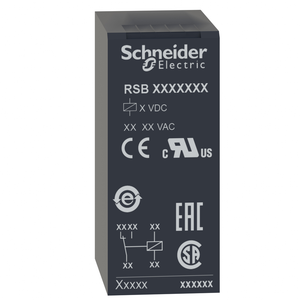

This Harmony RSB interfacing plug-in relay has a control coil voltage of 24V AC and has 1 changeover contact single pole double throw with a rating of 16A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0
- Shape Of Pin:
- flat (PCB type)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Marking:
- CE
- Operating Rate:
- <= 600 cycles/hour under load || <= 18000 cycles/hour no-load
- [Ie] Rated Operational Current:
- 16 A AC-1/DC-1) NO IEC || 8 A AC-1/DC-1) NC IEC
- Switching Voltage:
- 12 V
- Sale Per Indivisible Quantity:
- 10
- [Ue] Rated Operational Voltage:
- 19.2...36 V AC 50/60 Hz
- [Ui] Rated Insulation Voltage:
- 400 V IEC 60947
- Environmental Disclosure:
- ENVPEP1406006EN
- Protection Category:
- RT I
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Minimum Switching Current:
- 10 mA
- Contacts Material:
- silver alloy (AgNi)
- Contact Operation:
- standard
- Shock Resistance:
- 10 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Range Of Product:
- Harmony Electromechanical Relays
- Contacts Type And Composition:
- 1 C/O
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operating Time:
- 20 ms operating || 20 ms reset
- Mechanical Durability:
- 10000000 cycles
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- [Ithe] Conventional Enclosed Thermal Current:
- 16 A -40-40 °C
- Ambient Air Temperature For Operation:
- -40-70 °C AC)
- China Rohs Regulation:
- X
- Product Certifications:
- UL || EAC || CSA
- Safety Reliability Data:
- B10d = 100000
- Toxic Heavy Metal Free:
- Yes
- Ambient Air Temperature For Storage:
- -40-85 °C
- Average Coil Consumption:
- 0.75 VA AC
- Rohs Exemption Information:
- Yes
- Maximum Switching Voltage:
- 300 V DC IEC
- Circularity Profile:
- N/A
- Series Name:
- interface relay
- Status Led:
- without
- Device Presentation:
- complete product
- Maximum Switching Capacity:
- 4000 VA/448 W
- Vibration Resistance:
- +/- 1 mm 10-55 Hz)IEC 60068-2-6
- Warranty:
- 18 months
- Mercury Free:
- Yes
- Device Short Name:
- RSB
- Load Current:
- 16 A 250 V AC || 16 A 28 V DC
- Drop-Out Voltage Threshold:
- >= 0.15 Uc AC
- Dielectric Strength:
- 1000 V AC between contacts || 2500 V AC between poles || 5000 V AC between coil and contact
- Standards:
- UL 508 || IEC 61810-1 || CSA C22.2 No 14
- Control Type:
- without push-button
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Product Or Component Type:
- plug-in relay
- Average Resistance:
- 368 Ohm AC 20 °C +/- 10 %
- Operating Position:
- any position
- [Uimp] Rated Impulse Withstand Voltage:
- 3.6 kV IEC 61000-4-5
- Minimum Switching Capacity:
- 120 mW 10 mA, 12 V
- Sustainable Offer Status:
- Green Premium product
- Electrical Durability:
- 100000 cycles, 16 A at 250 V, AC-1 NO || 100000 cycles, 8 A at 250 V, AC-1 NC
- Net Weight:
- 0.014 kg
- Test Levels:
- level A group mounting
