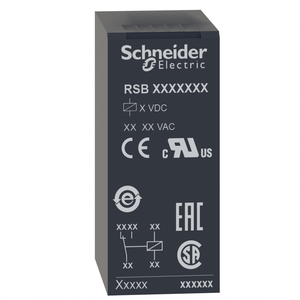

Schneider Electric RSB1A160BD Pcb Relay 1C/O 16A 24Vdc Pack of 10

(No reviews yet) Write a Review
SKU:
RSB1A160BD
UPC:
3389110254464
Condition:
New
Marking:
CE
Sale Per Indivisible Quantity:
10
Control Type:
without push-button
Product Certifications:
EAC || CSA || UL
Minimum Switching Current:
10 mA
[Ui] Rated Insulation Voltage:
400 V IEC 60947
Switching Voltage:
12 V
Net Weight:
0.014 kg
Product Or Component Type:
plug-in relay
Maximum Switching Voltage:
300 V DC IEC
[Ue] Rated Operational Voltage:
16.8...36 V DC
Warranty:
18 months
[Ithe] Conventional Enclosed Thermal Current:
16 A -40-40 °C
Status Led:
without
Vibration Resistance:
+/- 1 mm 10-55 Hz)IEC 60068-2-6
Device Short Name:
RSB
[Uc] Control Circuit Voltage:
24 V DC
Contacts Type And Composition:
1 C/O
Maximum Switching Capacity:
4000 VA/448 W
Series Name:
interface relay
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Durability:
100000 cycles, 16 A at 250 V, AC-1 NO || 100000 cycles, 8 A at 250 V, AC-1 NC
Standards:
UL 508 || CSA C22.2 No 14 || IEC 61810-1
[Ie] Rated Operational Current:
16 A AC-1/DC-1) NO IEC || 8 A AC-1/DC-1) NC IEC
Ambient Air Temperature For Operation:
-40-85 °C DC)
Device Presentation:
complete product
Dielectric Strength:
1000 V AC between contacts || 2500 V AC between poles || 5000 V AC between coil and contact
Safety Reliability Data:
B10d = 100000
Environmental Disclosure:
ENVPEP1406006EN
China Rohs Regulation:
X
Ambient Air Temperature For Storage:
-40-85 °C
Minimum Switching Capacity:
120 mW 10 mA, 12 V
Operating Time:
20 ms operating || 20 ms reset
Mechanical Durability:
30000000 cycles
Mercury Free:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Toxic Heavy Metal Free:
Yes
Shape Of Pin:
flat (PCB type)
Ip Degree Of Protection:
IP40 conforming to IEC 60529
[Uimp] Rated Impulse Withstand Voltage:
3.6 kV IEC 61000-4-5
Average Resistance:
1440 Ohm AC 20 °C +/- 10 %
Rohs Exemption Information:
Yes
Contacts Material:
silver alloy (AgNi)
Shock Resistance:
10 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
Operating Rate:
<= 600 cycles/hour under load || <= 18000 cycles/hour no-load
Load Current:
16 A 250 V AC || 16 A 28 V DC
Range Of Product:
Harmony Electromechanical Relays
Operating Position:
any position
Protection Category:
RT I
Contact Operation:
standard
Drop-Out Voltage Threshold:
>= 0.1 Uc DC
Average Coil Consumption:
0.45 W DC
Test Levels:
level A group mounting
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Circularity Profile:
N/A
Catalog:
View
Datasheet:
View
$51.20

Description

This Harmony RSB interfacing plug-in relay has a control coil voltage of 24V DC and has 1 changeover contact single pole double throw with a rating of 16A." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "Plug in type allows easy installation and maintenance." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." 0 0 0 0 0 0 0 0 0 0 0 0
