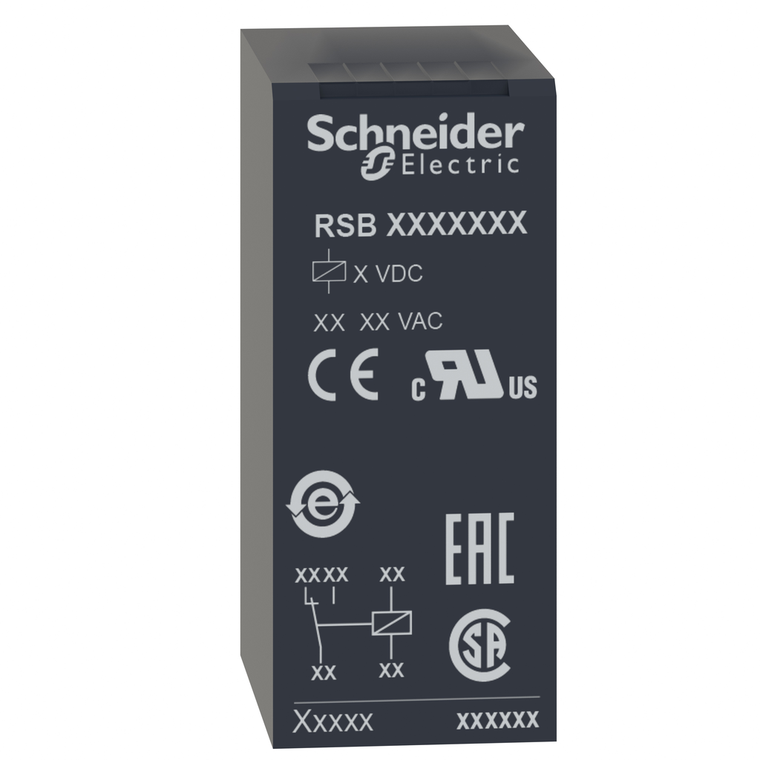

Schneider Electric RSB1A160F7 Pcb Relay 1C/O 16A 110Vac Pack of 10
Schneider Electric
$51.20
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RSB interfacing plug-in relay has a control coil voltage of 120V AC and has 1 changeover contact single pole double throw with a rating of 16A." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "Plug in type allows easy installation and maintenance." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." 0 0 0 0 0 0 0 0 0 0 0 0
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Control Type:
- without push-button
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C AC)
- Shock Resistance:
- 10 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Dielectric Strength:
- 1000 V AC between contacts || 2500 V AC between poles || 5000 V AC between coil and contact
- Product Certifications:
- EAC || CSA || UL
- Test Levels:
- level A group mounting
- Maximum Switching Capacity:
- 4000 VA/448 W
- Toxic Heavy Metal Free:
- Yes
- [Ithe] Conventional Enclosed Thermal Current:
- 16 A -40-40 °C
- Operating Rate:
- <= 600 cycles/hour under load || <= 18000 cycles/hour no-load
- Electrical Durability:
- 100000 cycles, 16 A at 250 V, AC-1 NO || 100000 cycles, 8 A at 250 V, AC-1 NC
- Switching Voltage:
- 12 V
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- [Uimp] Rated Impulse Withstand Voltage:
- 3.6 kV IEC 61000-4-5
- Product Or Component Type:
- plug-in relay
- Environmental Disclosure:
- ENVPEP1406006EN
- Device Presentation:
- complete product
- Contact Operation:
- standard
- Sale Per Indivisible Quantity:
- 10
- Range Of Product:
- Harmony Electromechanical Relays
- Operating Position:
- any position
- Device Short Name:
- RSB
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Contacts Material:
- silver alloy (AgNi)
- Ambient Air Temperature For Storage:
- -40-85 °C
- Warranty:
- 18 months
- Circularity Profile:
- N/A
- Net Weight:
- 0.014 kg
- Series Name:
- interface relay
- Maximum Switching Voltage:
- 300 V DC IEC
- Minimum Switching Current:
- 10 mA
- Average Resistance:
- 8360 Ohm AC 20 °C +/- 10 %
- [Ui] Rated Insulation Voltage:
- 400 V IEC 60947
- [Ue] Rated Operational Voltage:
- 96...180 V AC 50/60 Hz
- Drop-Out Voltage Threshold:
- >= 0.15 Uc AC
- Rohs Exemption Information:
- Yes
- Standards:
- UL 508 || IEC 61810-1 || CSA C22.2 No 14
- Operating Time:
- 20 ms operating || 20 ms reset
- Status Led:
- without
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Load Current:
- 16 A 250 V AC || 16 A 28 V DC
- Protection Category:
- RT I
- Shape Of Pin:
- flat (PCB type)
- Safety Reliability Data:
- B10d = 100000
- [Ie] Rated Operational Current:
- 16 A AC-1/DC-1) NO IEC || 8 A AC-1/DC-1) NC IEC
- Mechanical Durability:
- 10000000 cycles
- Contacts Type And Composition:
- 1 C/O
- [Uc] Control Circuit Voltage:
- 120 V AC 50/60 Hz
- Average Coil Consumption:
- 0.75 VA AC
- Vibration Resistance:
- +/- 1 mm 10-55 Hz)IEC 60068-2-6
- Minimum Switching Capacity:
- 120 mW 10 mA, 12 V
