Schneider Electric RSB2A080ED Pcb Relay 2C/O 8A 48Vdc Pack of 10

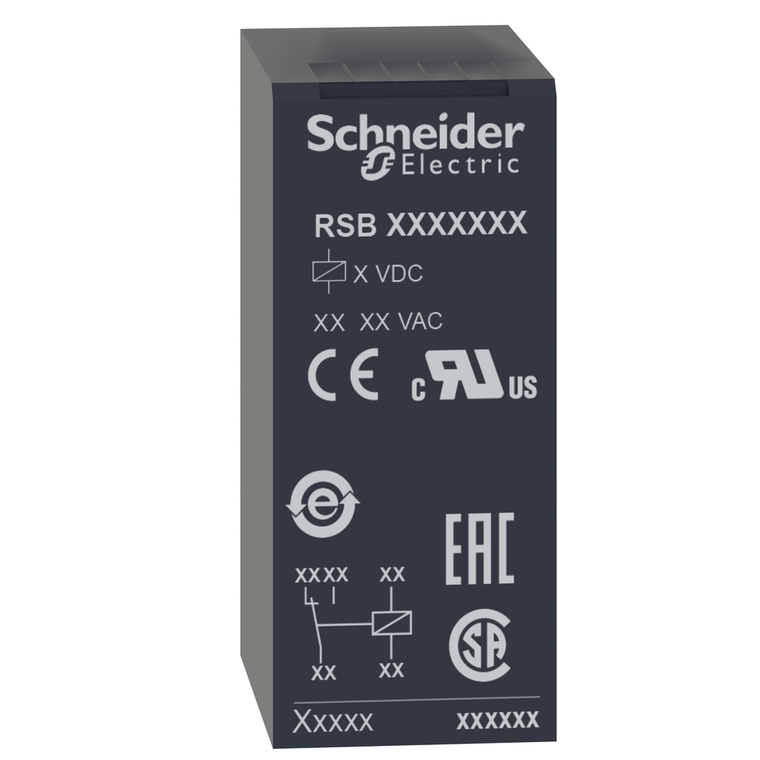

This Harmony RSB interfacing plug-in relay has a control coil voltage of 48V DC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0
- Sale Per Indivisible Quantity:
- 10
- Shape Of Pin:
- flat (PCB type)
- Device Short Name:
- RSB
- [Ue] Rated Operational Voltage:
- 33.6...72 V DC
- Environmental Disclosure:
- ENVPEP1406006EN
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Series Name:
- interface relay
- Standards:
- CSA C22.2 No 14 || IEC 61810-1 || UL 508
- Ambient Air Temperature For Storage:
- -40-85 °C
- China Rohs Regulation:
- X
- Circularity Profile:
- N/A
- Net Weight:
- 0.014 kg
- Dielectric Strength:
- 1000 V AC between contacts || 2500 V AC between poles || 5000 V AC between coil and contact
- Test Levels:
- level A group mounting
- Rohs Exemption Information:
- Yes
- Protection Category:
- RT I
- Average Resistance:
- 5520 Ohm AC 20 °C +/- 10 %
- Operating Time:
- 20 ms operating || 20 ms reset
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Or Component Type:
- plug-in relay
- Minimum Switching Current:
- 10 mA
- Ambient Air Temperature For Operation:
- -40-85 °C DC)
- Contacts Type And Composition:
- 2 C/O
- Range Of Product:
- Harmony Electromechanical Relays
- Electrical Durability:
- 100000 cycles, 8 A at 250 V, AC-1 NO || 100000 cycles, 4 A at 250 V, AC-1 NC
- Sustainable Offer Status:
- Green Premium product
- [Uimp] Rated Impulse Withstand Voltage:
- 3.6 kV IEC 61000-4-5
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Shock Resistance:
- 10 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Safety Reliability Data:
- B10d = 100000
- Control Type:
- without push-button
- Status Led:
- without
- Maximum Switching Capacity:
- 2000 VA/224 W
- Warranty:
- 18 months
- Mercury Free:
- Yes
- [Ithe] Conventional Enclosed Thermal Current:
- 8 A -40-40 °C
- Toxic Heavy Metal Free:
- Yes
- Product Certifications:
- EAC || CSA || UL
- Device Presentation:
- complete product
- Average Coil Consumption:
- 0.45 W DC
- Maximum Switching Voltage:
- 300 V DC IEC
- [Ui] Rated Insulation Voltage:
- 400 V IEC 60947
- Operating Position:
- any position
- Switching Voltage:
- 12 V
- Marking:
- CE
- Contact Operation:
- standard
- Drop-Out Voltage Threshold:
- >= 0.1 Uc DC
- Vibration Resistance:
- +/- 1 mm 10-55 Hz)IEC 60068-2-6
- Mechanical Durability:
- 30000000 cycles
- Load Current:
- 8 A 250 V AC || 8 A 28 V DC
- Operating Rate:
- <= 600 cycles/hour under load || <= 18000 cycles/hour no-load
- Minimum Switching Capacity:
- 120 mW 10 mA, 12 V
- Contacts Material:
- silver alloy (AgNi)
- [Uc] Control Circuit Voltage:
- 48 V DC
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- [Ie] Rated Operational Current:
- 4 A AC-1/DC-1) NC IEC || 8 A AC-1/DC-1) NO IEC
