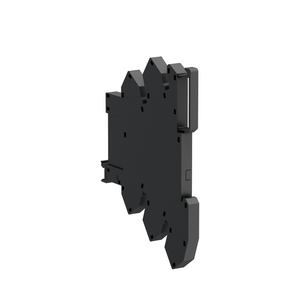

Schneider Electric RSL1PVPU Slim Relay+Socket 1C/O Led 230Vacdc Scrw Pack of 10
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 60V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0
- Reset Time:
- 20 ms
- Minimum Switching Current:
- 100 mA
- Connections - Terminals:
- screw connectors, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw connectors, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) solid without cable end
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- X
- Load Current:
- 6 A 250 V AC 0.5 mm mounting distance
- Series Name:
- interface relay
- Product Or Component Type:
- pre-assembled plug-in relay with socket
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Short Name:
- RSL
- Contacts Type And Composition:
- 1 C/O
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 5 gn 11 ms) not operating IEC 60068-2-27
- Mechanical Durability:
- 10000000 cycles
- Operating Rate:
- <= 72000 cycles/hour no-load || <= 360 cycles/hour under load
- Maximum Switching Capacity:
- 1500 VA || 150 W
- Average Coil Consumption:
- 0.17 W, DC
- Vibration Resistance:
- 10 gn +/- 1 mm 10-150 Hz)10 cycles not operating IEC 60068-2-6 || 5 gn +/- 1 mm 10-150 Hz)10 cycles in operation IEC 60068-2-6
- Net Weight:
- 0.029 kg
- Minimum Switching Voltage:
- 12 V
- Safety Reliability Data:
- B10d = 60000
- Environmental Disclosure:
- ENVPEP1405004EN
- Electrical Durability:
- 60000 cycles resistive, 6 A 250 V, AC-1
- Sale Per Indivisible Quantity:
- 10
- Toxic Free:
- Yes
- Dielectric Strength:
- 1000 V AC between contacts || 4000 V AC between coil and contact
- Contact Operation:
- standard
- Status Led:
- with
- Control Type:
- without push-button
- Contact Terminal Arrangement:
- separate
- Drop-Out Voltage Threshold:
- >= 0.05 Uc
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC
- Test Levels:
- level A group mounting
- Fixing Mode:
- plastic compression spring
- Warranty:
- 18 months
- [Ithe] Conventional Enclosed Thermal Current:
- 6 A -40-55 °C
- Terminals Description Iso N°1:
- (11-12-14)OC || (A1-A2)CO
- Reach Free Of Svhc:
- Yes
- Product Certifications:
- GOST || CSA || UL
- Depth:
- 95 mm
- Contacts Material:
- silver alloy (AgSnO2)
- Minimum Switching Capacity:
- 120 mW
- Ambient Air Temperature For Operation:
- -40-70 °C
- Width:
- 6.2 mm
- Operating Position:
- any position
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 277 V cUL
- Range Of Product:
- Harmony Electromechanical Relays
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Standards:
- IEC 61810-1 || UL 508 || CSA C22.2 No 14
- Toxic Heavy Metal Free:
- Yes
- Mounting Support:
- 35 mm symmetrical DIN rail
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Tightening Torque:
- < 0.5 N.m M2.5
- Ambient Air Temperature For Storage:
- -40-85 °C
- Marking:
- CE
- [Ie] Rated Operational Current:
- 6 A 1 C/O AC-1/DC-1)IEC/UL
- Shape Of Pin:
- flat (PCB type)
- Rohs Exemption Information:
- Yes
- Phenolic Free Solution:
- Yes
- Maximum Switching Voltage:
- 277 V
- [Uc] Control Circuit Voltage:
- 60 V DC
- Average Resistance:
- 20500 Ohm DC 23 °C +/- 10 %
- Device Presentation:
- complete product
- Protection Category:
- RT III
- Circularity Profile:
- ENVEOLI1405004EN
- Height:
- 78.6 mm
- Operating Time:
- 5 ms reset || 12 ms
- Mercury Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Input Voltage:
- 230 V AC/DC 184...264.5 V)
