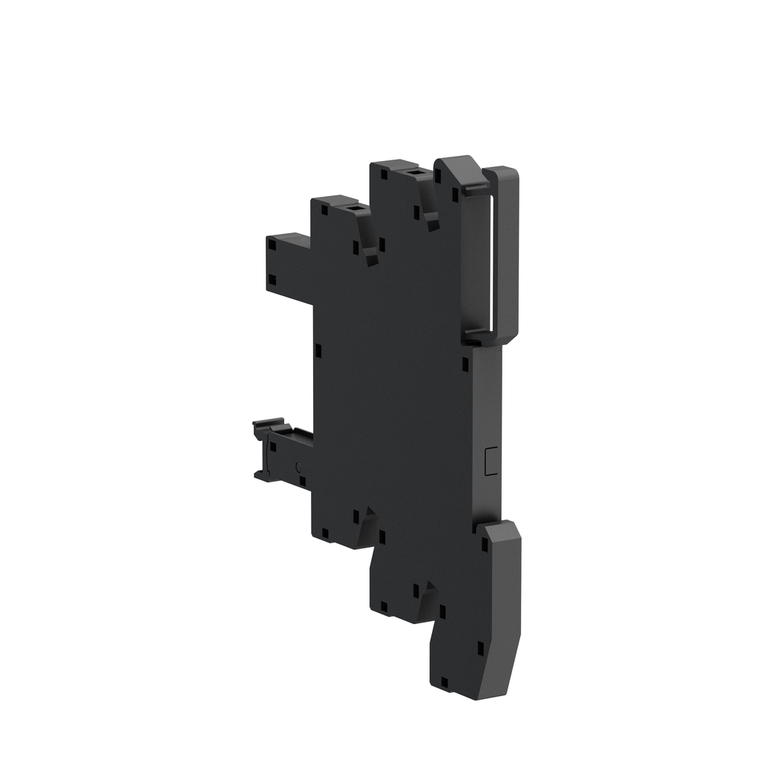

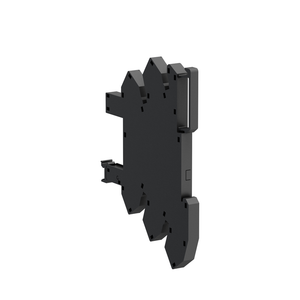

Schneider Electric RSLZVA2 Separated Socket Led 48-60Vac/Dc Screw Pack of 10

Schneider Electric RSLZVA2 Separated Socket Led 48-60Vac/Dc Screw Pack of 10

Schneider Electric
SKU:
RSLZVA2
|
UPC:
3606480078033
$131.70
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony RSLZ plug-in relay socket has a coil control voltage of 48 - 60V ac/dc." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
Additional Information
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Ip Degree Of Protection:
IP20 conforming to IEC 60529
Cad Overall Width:
6.2 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Marking:
CE
Pollution Degree:
3
Fixing Mode:
plastic compression spring 35 mm symmetrical DIN rail)
Product Compatibility:
plug-in relay RSL 1 C/O 48 V DC || plug-in relay RSL 1 C/O 60 V DC
Ambient Air Temperature For Storage:
-40-85 °C
Warranty:
18 months
Circularity Profile:
ENVEOLI1405004EN
Ambient Air Temperature For Operation:
-40-70 °C
Group Of Product:
RSL_CON_48-60
Reach Free Of Svhc:
Yes
Contact Terminal Arrangement:
separate
[Ith] Conventional Free Air Thermal Current:
0.25
Product Certifications:
GOST || CSA
Compatibility Code:
RSLZ
Switching Voltage:
48 V AC/DC || 60 V AC/DC
Tightening Torque:
< 0.4 N.m M2.5
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Device Short Name:
RSLZ
Environmental Disclosure:
ENVPEP1405004EN
[Uimp] Rated Impulse Withstand Voltage:
3.6 kV
[Ue] Rated Operational Voltage:
< 300 V AC
Standards:
UL 508 || IEC 61984
Contacts Type And Composition:
1 C/O
Shape Of Pin:
flat
Cad Overall Depth:
95 mm
Product Or Component Type:
socket
Rated Operational Voltage Limits:
43.2...57.6 V || 54...72 V
Range Of Product:
Harmony Electromechanical Relays
Connections - Terminals:
connector, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || connector, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) solid without cable end
Device Presentation:
basic element
Cad Overall Height:
78.6 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Net Weight:
0.023 kg
Overvoltage Category:
III
Sale Per Indivisible Quantity:
10
China Rohs Regulation:
X
Sustainable Offer Status:
Green Premium product
