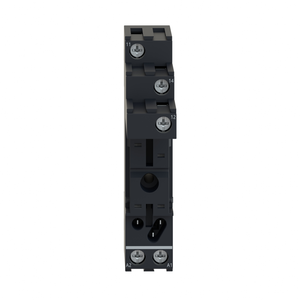

Schneider Electric RSZE05P Rsz Push-In Socket With Clamp For Rsb1 Pack of 10

Schneider Electric RSZE05P Rsz Push-In Socket With Clamp For Rsb1 Pack of 10

Schneider Electric
SKU:
RSZE05P
|
UPC:
3606481465733
Availability:
Contact us to confirm availability and lead times.
$99.40
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A120 relays, 12A, push in terminals, separate contact
Additional Information
[Ith] Conventional Free Air Thermal Current:
0
Connections - Terminals:
spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) flexible with cable end || spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Contacts Type And Composition:
1 C/O
Device Short Name:
RSZ
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ui] Rated Insulation Voltage:
250 V
Product Compatibility:
plug-in relay RSB with 1 C/O contact at 12 A
Product Or Component Type:
socket
Net Weight:
0.037 kg
Contact Terminal Arrangement:
separate
Rohs Exemption Information:
Yes
Range Of Product:
Harmony Electromechanical Relays
Sale Per Indivisible Quantity:
10
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Mercury Free:
Yes
Fixing Mode:
clip-on 35 mm symmetrical DIN rail)
Height:
60 mm
Pollution Degree:
3
Marking:
CE
Width:
16 mm
Shape Of Pin:
flat
Length:
98 mm
[Ue] Rated Operational Voltage:
250 V IEC || 300 V UL
China Rohs Regulation:
X
Reach Free Of Svhc:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Uimp] Rated Impulse Withstand Voltage:
4 kV
Ip Degree Of Protection:
IP20
Ambient Air Temperature For Storage:
-40-85 °C
Ambient Air Temperature For Operation:
-40-85 °C
Toxic Heavy Metal Free:
Yes
Overvoltage Category:
III
Standards:
IEC 61984
Warranty:
18 months
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Certifications:
CSA || UL || EAC
