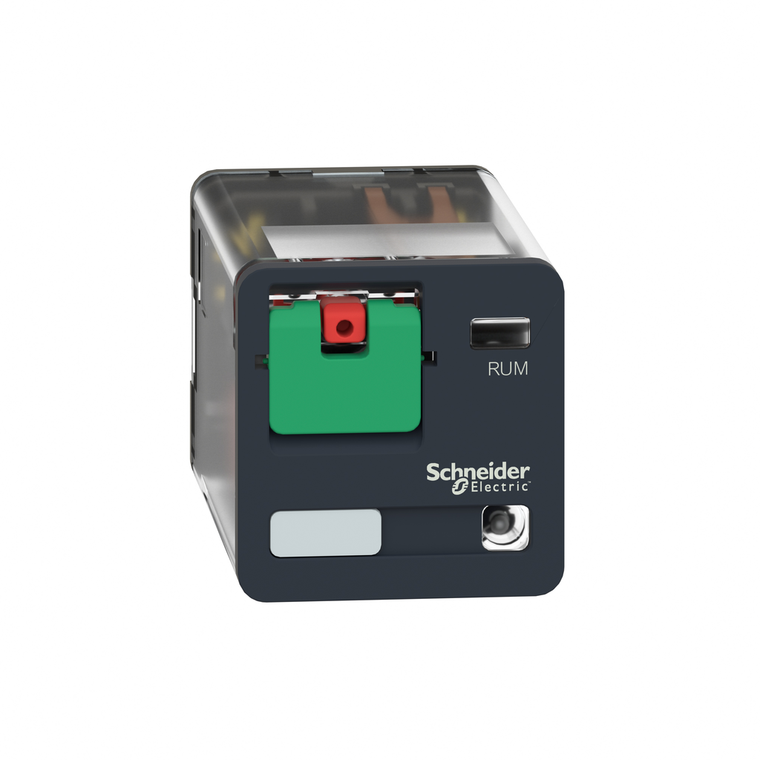

Schneider Electric RUMC22B7 2Co 10A Relay Cylind +Ltb+Led 24Vac

(No reviews yet) Write a Review
SKU:
RUMC22B7
UPC:
3606480626654
Condition:
New
China Rohs Regulation:
X
Reset Time:
20 ms at nominal voltage
Operating Time:
20 ms at nominal voltage
Ambient Air Temperature For Operation:
-40-55 °C
Rohs Exemption Information:
Yes
Safety Reliability Data:
B10d = 100000
Maximum Switching Capacity:
2500 VA/280 W
Sustainable Offer Status:
Green Premium product
Test Levels:
level A group mounting
Ip Degree Of Protection:
IP40
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Product Or Component Type:
plug-in relay
Operating Position:
any position
Contacts Type And Composition:
2 C/O
Circularity Profile:
N/A
Range Of Product:
Harmony Electromechanical Relays
Vibration Resistance:
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Standards:
UL 508 || CSA C22.2 No 14 || IEC 61810-1
Series Name:
Universal
Device Presentation:
complete product
Reach Free Of Svhc:
Yes
Pollution Degree:
3
Utilisation Coefficient:
0.2
Mechanical Durability:
5000000 cycles
Drop-Out Voltage Threshold:
>= 0.15 Uc AC
Rated Operational Voltage Limits:
19.2...26.4 V AC
Shock Resistance:
10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
Device Short Name:
RUM
Product Certifications:
CSA || EAC || UL
Minimum Switching Capacity:
170 mW 10 mA, 17 V
Control Type:
lockable test button
[Ui] Rated Insulation Voltage:
250 V IEC || 300 V CSA || 300 V UL
Shape Of Pin:
cylindrical
Dielectric Strength:
1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
Load Current:
10 A 250 V AC || 10 A 28 V DC
Operating Rate:
<= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
[Uc] Control Circuit Voltage:
24 V AC 50/60 Hz
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Net Weight:
0.086 kg
Status Led:
with
Reach Regulation:
Free of Substances of Very High Concern above the threshold
[Ie] Rated Operational Current:
10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10 A at 250 V AC (NO) conforming to IEC || 10 A at 28 V D
Average Resistance:
72 Ohm 20 °C +/- 15 %
[Uimp] Rated Impulse Withstand Voltage:
4 kV 1.2/50 µs)
Maximum Switching Voltage:
250 V IEC
Contacts Material:
AgNi
Electrical Durability:
100000 cycles resistive
Protection Category:
RT I
Ambient Air Temperature For Storage:
-40-85 °C
Environmental Disclosure:
ENVPEP1406038EN
[Ithe] Conventional Enclosed Thermal Current:
10 A -40-55 °C
Average Coil Consumption In Va:
3-3 60 Hz
Catalog:
View
Datasheet:
View
$13.79

Description

This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 24V AC and has 2 changeover contacts double pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
