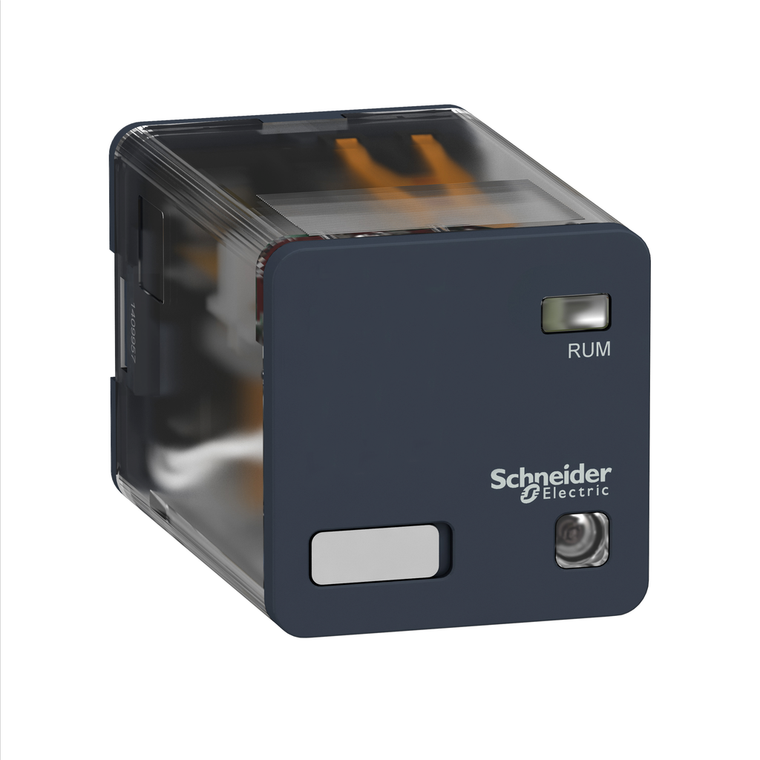

Schneider Electric RUMC23F7 2Co 10A Relay Cylind -Ltb+Led 120Vac Pack of 10

(No reviews yet) Write a Review
SKU:
RUMC23F7
UPC:
3.60648E+12
Condition:
New
Shape Of Pin:
cylindrical
Maximum Switching Capacity:
2500 VA/280 W
Average Resistance:
1700 Ohm 20 °C +/- 15 %
China Rohs Regulation:
X
Vibration Resistance:
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Device Presentation:
complete product
Reset Time:
20 ms at nominal voltage
Rated Operational Voltage Limits:
96...132 V AC
Operating Rate:
<= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
Average Coil Consumption In Va:
3-3 60 Hz
Standards:
IEC 61810-1 || CSA C22.2 No 14 || UL 508
Contacts Material:
AgNi
Pollution Degree:
3
Mechanical Durability:
5000000 cycles
Contacts Type And Composition:
2 C/O
Reach Free Of Svhc:
Yes
Ambient Air Temperature For Storage:
-40-85 °C
Shock Resistance:
10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
Safety Reliability Data:
B10d = 100000
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Ambient Air Temperature For Operation:
-40-55 °C
[Ui] Rated Insulation Voltage:
250 V IEC || 300 V CSA || 300 V UL
Operating Position:
any position
Device Short Name:
RUM
Sustainable Offer Status:
Green Premium product
Product Or Component Type:
plug-in relay
[Ithe] Conventional Enclosed Thermal Current:
10 A -40-55 °C
Load Current:
10 A 250 V AC || 10 A 28 V DC
Utilisation Coefficient:
0.2
Range Of Product:
Harmony Electromechanical Relays
Circularity Profile:
N/A
Status Led:
with
Series Name:
Universal
Drop-Out Voltage Threshold:
>= 0.15 Uc AC
Environmental Disclosure:
ENVPEP1406038EN
Operating Time:
20 ms at nominal voltage
Minimum Switching Capacity:
170 mW 10 mA, 17 V
[Uc] Control Circuit Voltage:
120 V AC 50/60 Hz
Protection Category:
RT I
Electrical Durability:
100000 cycles resistive
Ip Degree Of Protection:
IP40
Maximum Switching Voltage:
250 V IEC
Test Levels:
level A group mounting
Net Weight:
0.086 kg
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Dielectric Strength:
1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
Control Type:
without lockable test button
[Uimp] Rated Impulse Withstand Voltage:
4 kV 1.2/50 µs)
Product Certifications:
CSA || EAC || UL
Rohs Exemption Information:
Yes
[Ie] Rated Operational Current:
10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10 A at 250 V AC (NO) conforming to IEC || 10 A at 28 V D
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Catalog:
View
Datasheet:
View
$126.90

Description

This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 120V AC and has 2 changeover contacts double pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
