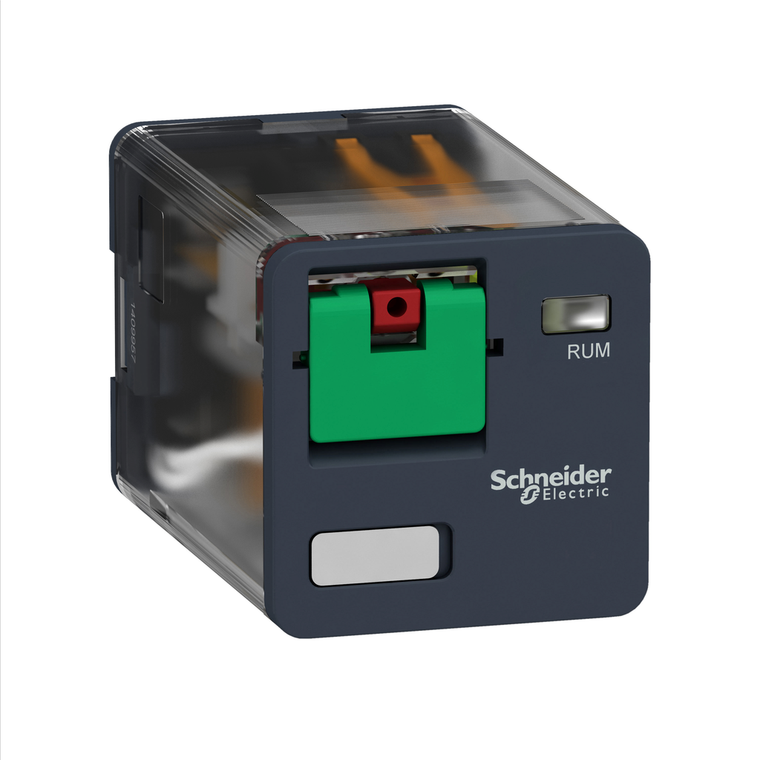

Schneider Electric RUMC31B7 3Co 10A Relay Cylind +Ltb-Led 24Vac

(No reviews yet) Write a Review
SKU:
RUMC31B7
UPC:
3606480626814
Condition:
New
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Status Led:
without
Range Of Product:
Harmony Electromechanical Relays
[Ie] Rated Operational Current:
10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Durability:
100000 cycles resistive
Rated Operational Voltage Limits:
19.2...26.4 V AC
[Ui] Rated Insulation Voltage:
250 V IEC || 300 V CSA || 300 V UL
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Shock Resistance:
10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Ip Degree Of Protection:
IP40
[Uimp] Rated Impulse Withstand Voltage:
4 kV 1.2/50 µs)
Maximum Switching Voltage:
250 V IEC
Operating Time:
20 ms at nominal voltage
Safety Reliability Data:
B10d = 100000
Reach Free Of Svhc:
Yes
[Uc] Control Circuit Voltage:
24 V AC 50/60 Hz
China Rohs Regulation:
X
Net Weight:
0.086 kg
Standards:
CSA C22.2 No 14 || UL 508 || IEC 61810-1
Load Current:
10 A 250 V AC || 10 A 28 V DC
Average Resistance:
72 Ohm 20 °C +/- 15 %
Test Levels:
level A group mounting
Contacts Material:
AgNi
Ambient Air Temperature For Storage:
-40-85 °C
Mechanical Durability:
5000000 cycles
Device Short Name:
RUM
Series Name:
Universal
Drop-Out Voltage Threshold:
>= 0.15 Uc AC
[Ithe] Conventional Enclosed Thermal Current:
10 A -40-55 °C
Device Presentation:
complete product
Utilisation Coefficient:
0.2
Protection Category:
RT I
Operating Position:
any position
Environmental Disclosure:
ENVPEP1406038EN
Minimum Switching Capacity:
170 mW 10 mA, 17 V
Shape Of Pin:
cylindrical
Dielectric Strength:
1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
Vibration Resistance:
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Reset Time:
20 ms at nominal voltage
Ambient Air Temperature For Operation:
-40-55 °C
Average Coil Consumption In Va:
3-3 60 Hz
Product Certifications:
CSA || EAC || UL
Product Or Component Type:
plug-in relay
Control Type:
lockable test button
Maximum Switching Capacity:
2500 VA/280 W
Pollution Degree:
2
Operating Rate:
<= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
Circularity Profile:
N/A
Contacts Type And Composition:
3 C/O
Catalog:
View
Datasheet:
View
$13.79

Description

This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 24V AC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
