Schneider Electric

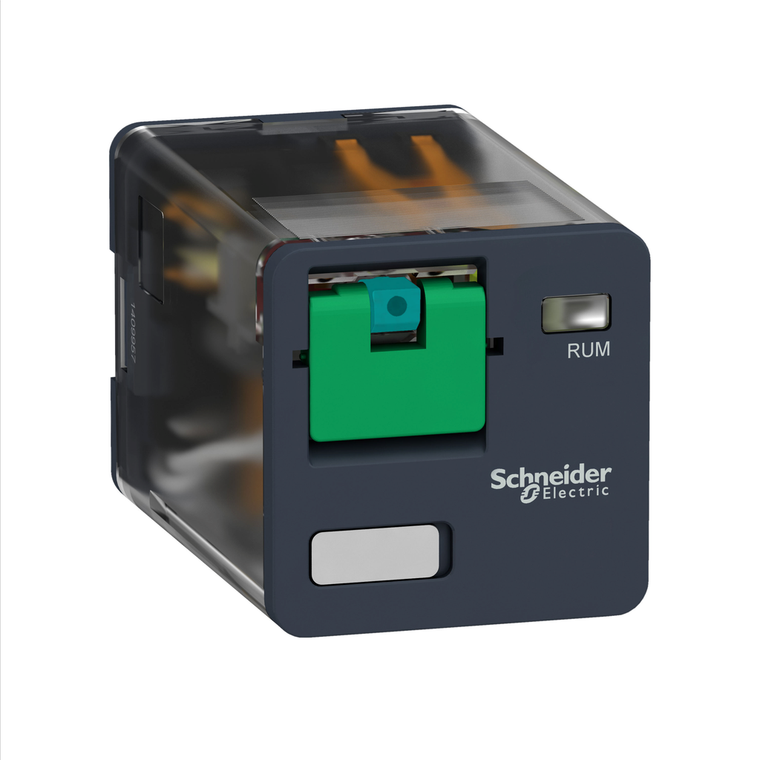

Schneider Electric RUMC31BD 3Co 10A Relay Cylind +Ltb-Led 24Vdc Pack of 10

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric RUMC31BD 3Co 10A Relay Cylind +Ltb-Led 24Vdc Pack of 10

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RUMC31BD

UPC:

3606480626821

MPN:

Condition:

New

Electrical Durability:

100000 cycles resistive

Status Led:

without

Series Name:

Universal

Safety Reliability Data:

B10d = 100000

[Ie] Rated Operational Current:

10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10

Dielectric Strength:

1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic

Sustainable Offer Status:

Green Premium product

Reach Free Of Svhc:

Yes

Standards:

IEC 61810-1 || CSA C22.2 No 14 || UL 508

Utilisation Coefficient:

0.2

Mechanical Durability:

5000000 cycles

Rohs Exemption Information:

Yes

China Rohs Regulation:

X

[Ithe] Conventional Enclosed Thermal Current:

10 A -40-55 °C

Control Type:

lockable test button

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Ambient Air Temperature For Operation:

-40-55 °C

Net Weight:

0.086 kg

Vibration Resistance:

3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating

Operating Position:

any position

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Maximum Switching Voltage:

250 V IEC

Shape Of Pin:

cylindrical

Environmental Disclosure:

ENVPEP1406038EN

Protection Category:

RT I

Rated Operational Voltage Limits:

19.2...26.4 V DC

Load Current:

10 A 250 V AC || 10 A 28 V DC

Circularity Profile:

N/A

Shock Resistance:

10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27

Maximum Switching Capacity:

2500 VA/280 W

Range Of Product:

Harmony Electromechanical Relays

Drop-Out Voltage Threshold:

>= 0.1 Uc DC

Product Certifications:

EAC || UL || CSA

Average Coil Consumption:

1.4 W

Average Resistance:

470 Ohm 20 °C +/- 15 %

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Operating Rate:

<= 18000 cycles/hour no-load || <= 1200 cycles/hour under load

Test Levels:

level A group mounting

Ip Degree Of Protection:

IP40

Device Presentation:

complete product

Device Short Name:

RUM

Contacts Material:

AgNi

Contacts Type And Composition:

3 C/O

Product Or Component Type:

plug-in relay

Ambient Air Temperature For Storage:

-40-85 °C

Minimum Switching Capacity:

170 mW 10 mA, 17 V

Pollution Degree:

2

Operating Time:

20 ms at nominal voltage

Reset Time:

20 ms at nominal voltage

[Uc] Control Circuit Voltage:

24 V DC

[Ui] Rated Insulation Voltage:

250 V IEC || 300 V CSA || 300 V UL

[Uimp] Rated Impulse Withstand Voltage:

4 kV 1.2/50 µs)

Catalog:

View

Datasheet:

View
