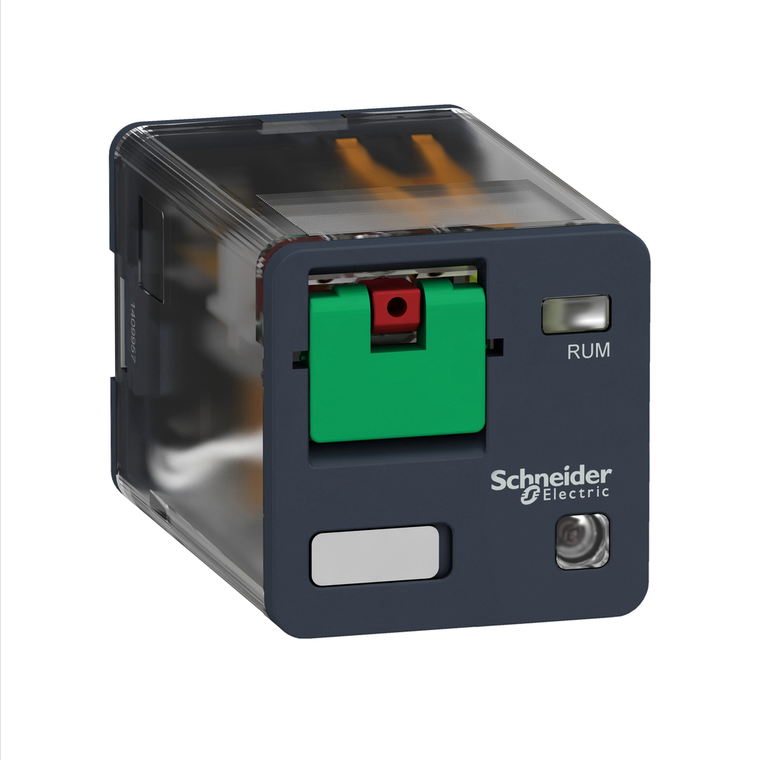

Schneider Electric RUMC32B7 3Co 10A Relay Cylind +Ltb+Led 24Vac
Schneider Electric
$18.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 24V AC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Pollution Degree:
- 2
- Device Presentation:
- complete product
- Electrical Durability:
- 100000 cycles resistive
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Safety Reliability Data:
- B10d = 100000
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Ambient Air Temperature For Operation:
- -40-55 °C
- China Rohs Regulation:
- X
- Mechanical Durability:
- 5000000 cycles
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Contacts Material:
- AgNi
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Drop-Out Voltage Threshold:
- >= 0.15 Uc AC
- Load Current:
- 10 A 250 V AC || 10 A 28 V DC
- Maximum Switching Voltage:
- 250 V IEC
- [Ie] Rated Operational Current:
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10
- Range Of Product:
- Harmony Electromechanical Relays
- Utilisation Coefficient:
- 0.2
- Protection Category:
- RT I
- Rated Operational Voltage Limits:
- 19.2...26.4 V AC
- Shape Of Pin:
- cylindrical
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Average Coil Consumption In Va:
- 3-3 60 Hz
- Ip Degree Of Protection:
- IP40
- Product Certifications:
- EAC || CSA || UL
- Average Resistance:
- 72 Ohm 20 °C +/- 15 %
- Operating Position:
- any position
- Device Short Name:
- RUM
- Contacts Type And Composition:
- 3 C/O
- Operating Time:
- 20 ms at nominal voltage
- Ambient Air Temperature For Storage:
- -40-85 °C
- Net Weight:
- 0.086 kg
- Control Type:
- lockable test button
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs)
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- N/A
- Environmental Disclosure:
- ENVPEP1406038EN
- Test Levels:
- level A group mounting
- Series Name:
- Universal
- Maximum Switching Capacity:
- 2500 VA/280 W
- Operating Rate:
- <= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
- Standards:
- IEC 61810-1 || CSA C22.2 No 14 || UL 508
- Status Led:
- with
- Reach Free Of Svhc:
- Yes
- Product Or Component Type:
- plug-in relay
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Reset Time:
- 20 ms at nominal voltage
- Catalog:
- View
- Datasheet:
- View
